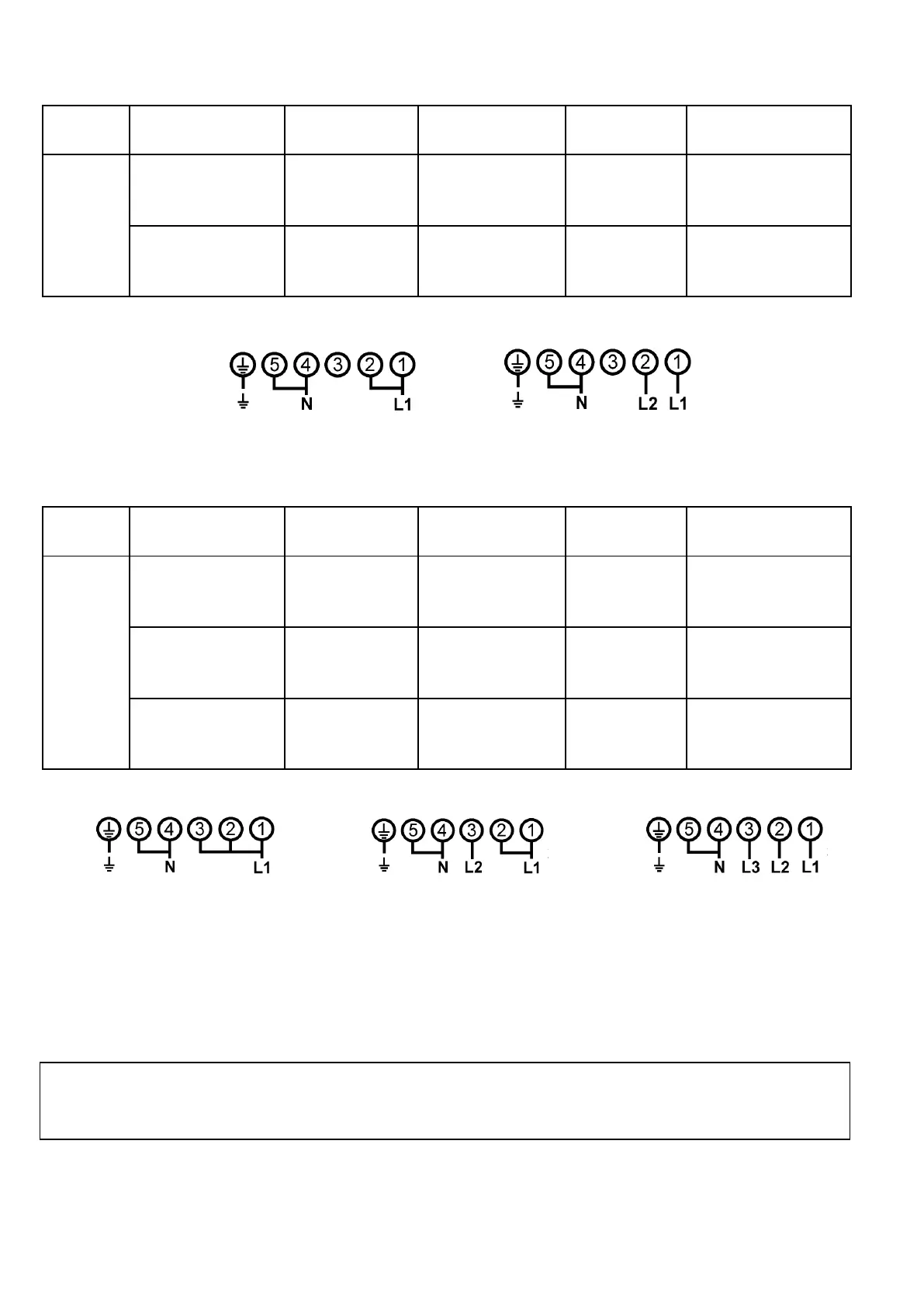

4 zones
Country
Mains
Connection
Cable diameter
Cable
Protection calibre
EN
230V~ 50/60Hz
1 Phase + N
3 x 2,5 mm²
H 05 VV - F
25 A *
H 05 RR - F
400V~ 50/60Hz
2 Phases + N
4 x 1.5 mm²
H 05 VV - F
16 A *
H 05 RR - F
* calculated with the simultaneous factor following the standard EN 60 335-2-6
5-6 Zones
Country
Mains
Connection
Cable diameter
Cable
Protection calibre
EN
230V~ 50/60Hz
1 Phase + N
3 x 4 mm²
H 05 VV - F
40 A *
H 05 RR - F
400V~ 50/60Hz
2 Phases + N
4 x 2.5 mm²
H 05 VV - F
25 A *
H 05 RR - F
400V~ 50/60Hz
3 Phases + N
5 x 1.5 mm²
H 05 VV - F
16 A *
H 05 RR - F
* calculated with the simultaneous factor following the standard EN 60 335-2-6
Frequent loosening and screwing of the screws on the connection box risks damaging the
efficiency of the tightness once screwed. It is therefore advisable to keep screwing and
unscrewing to a minimum.
Ensure that the cables are correctly inserted and tightly screwed down.
4 weeks after installation, be sure to tighten again the screws in the terminal block.
We cannot be held responsible for any incident resulting from incorrect connection or
which could arise from the use of an appliance which has not been earthed or has been
equipped with a faulty earth connection.
