23
INSTALLATIONSANVISNINGAR
Installationen får uteslutande utföras av specialister.
Installatören måste respektera lagstiftningen och standarderna i det land som denne är verk-
sam i.
Så fastgörs tätningslisten:
Tätningslisten som medföljer spishällen förhindrar att vätskor tränger in i skåpet.
Monteringen måste utföras noggrant enligt följande ritning.
Anpassning – installation:
• Storlek på utskärning:
23
INSTALLATION INSTRUCTIONS
The installation comes under the exclusive responsibility of specialists.
The installer is held to respect the legislation and the standards enforce in his home country.
How to stick the gasket:
The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.
His installation has to be done carefully, in conformity of the following drawing.
Fitting - installing:
• Cut-out size :
Cut size
Glass size
Flush mounting
Ref
Width
Depth
Width
Depth
Thick
Width
Depth
Thick
Radius
WE785EVW
750
490
780
520
4
786
526
4
8
• Ensure that there is a distance of 50 mm between the hob and the wall or sides.
• The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed
with plenty of space on either side. There may be a wall at the rear and tall units or a wall
at one side. On the other side, however, no unit or divider must stand higher than
the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of
furniture, the laminate coatings and the glue used to fix them, must be able to resist
temperatures of up to 100 °C.
• Do not install the hob at the top of a non-ventilated oven or a dishwasher.
• Ensure under the bottom of the hob casing a space of 20 mm to ensure good air
circulation of the electronic device.
• If a drawer is placed under the hob, avoid putting into this drawer flammable objects (for
example: sprays) or non-heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect
the cut out edge, apply a coat of varnish or special sealant. Particular care must be taken
when applying the adhesive joint supplied with the hob to prevent any leakage into the
supporting furniture. This gasket ensures a good seal when used in conjunction with
smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must comply with the
recommendations of the hood manufacturer. In the case of no instructions, a distance of
500 mm minimum should apply.
• The connection cord should not be subjected to any mechanical constraint.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance
or indicated by the manufacturer of the appliance in the instructions for use as suitable or
hob guards incorporated in the appliance. The use of inappropriate guards can cause
accidents.

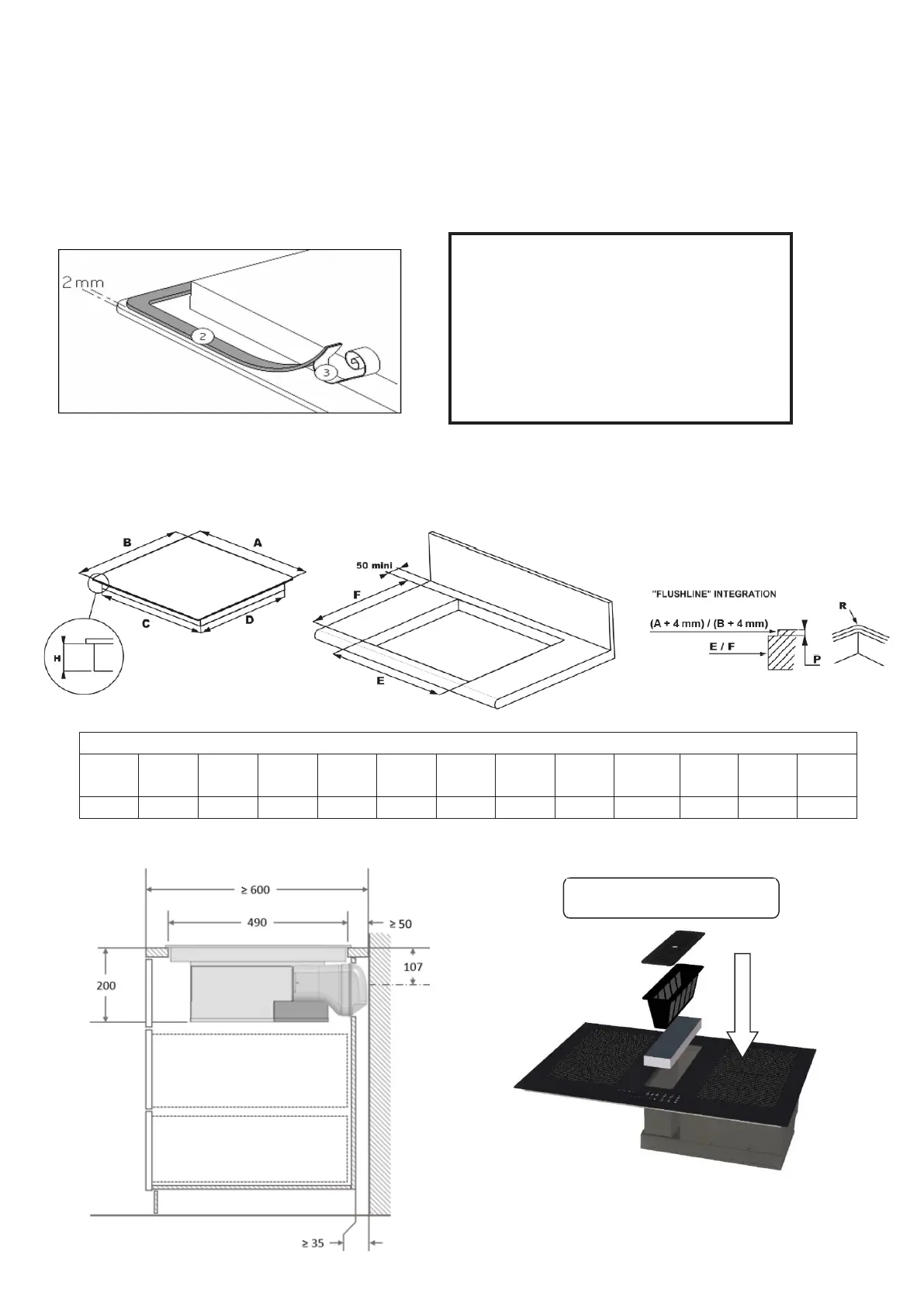

Stick the gasket (2) two millimetres
from the external edge of the glass,
after removing the protection sheet (3).
Fäst packningen(2) två
millimeter från glasets
ytterkant efter att
skyddstejpen(3) har tagits
bort.
LUNA78W
A
A
flush
B
B
flush
C D E F H Glass P R
R
flush
780
784
520
524
740
480
750
490
200
4
5
5
7
Filters installation
Installation av filter
Luna 78W/Luna 78MW
