About the AP-606
Made in USA
Package Contents:
• Arca-Swiss Style QR Plate: AP-606 Replacement Foot (Qty 1)
• Mounting Screw: 1/4-20 x 7/16”L Flat Head Socket Cap Screw (Qty 2)
• Mounting Bushing: 3/8-16 to 1/4-20 (Qty 1)
• Safety Stop Screws: M3 x 3mm Socket Head Cap Screw (Qty 2)
• Hex Key: 5/32 (Qty 1)
• Hex Key: 2.5mm (Qty 1)
Instructions continued on back >>
Wimberley, Inc. Phone: 1-434-529-8385
1750 Broadway St Toll Free: 1-888-665-2746 (USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
The AP-606 Replacement Foot fits the 200-800 RF f/6.3-9
Canon lenses and serves three main purposes:
1. Added Stiffness over the factory tripod mounting foot
connected to a lens plate, reducing flex and vibration.
2. Functions as the Arca-Swiss style quick-release plate
for your lens.
3. Creates a more ideal geometry for using your lens on
the Wimberley Sidemount Head and Sidekick, allowing
the lens to balance optimally.
Wimberley lens plates are compatible with Arca-Swiss style
quick-release clamps such as those made by Wimberley,
Kirk Enterprises, Really Right Stuff, Arca-Swiss, Markins,
and others.
Wimberley, Inc. Phone: 1-434-529-8385
1750 Broadway St Toll Free: 1-888-665-2746 (USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
Weight: 2.46 oz
Product Dimensions (L x W x H): 5.7” x 1.5” x 0.4”
Materials: Anodized 6061 Aluminum, Stainless Steel
AP-606
Quick-release Replacement
Foot for Canon:
200-800 RF f/6.3-9 IS
10 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details
Installation Instructions
1. Install the enclosed bushing in the 3/8 hole (Fig. 1).
2. Attach the AP-606 plate to the lens using the enclosed
1/4-20 screws (Fig. 1).
3. Drive the screw in until you first meet resistance,
then turn it about 30° farther to establish appropriate, but
not excessive, torque. Do not over tighten; it is possible to
shear the head off the fastener with the hex key included.
4. Install safety stop screws as shown on page 2 (Fig. 3).
Safety stop screws are not required, however they keep
your lens and camera secure when using a compatible QR
clamp.

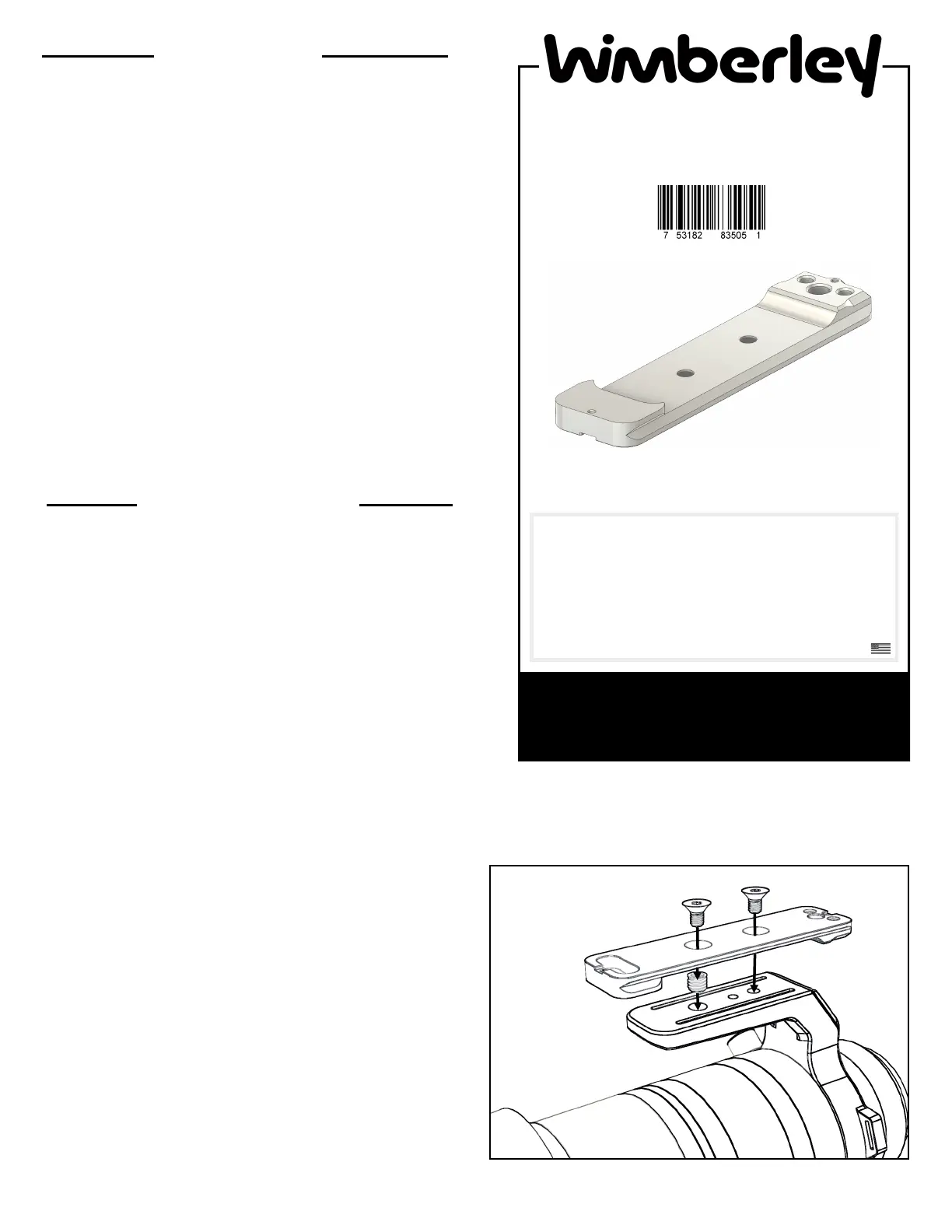

Figure 1
