7
FM+ C
The WaveCAST Networking Guide is available on the Williams AV website for additional networking tips. The
WaveCAST networking guide applies to the FM+ C as well as other WaveCAST products.

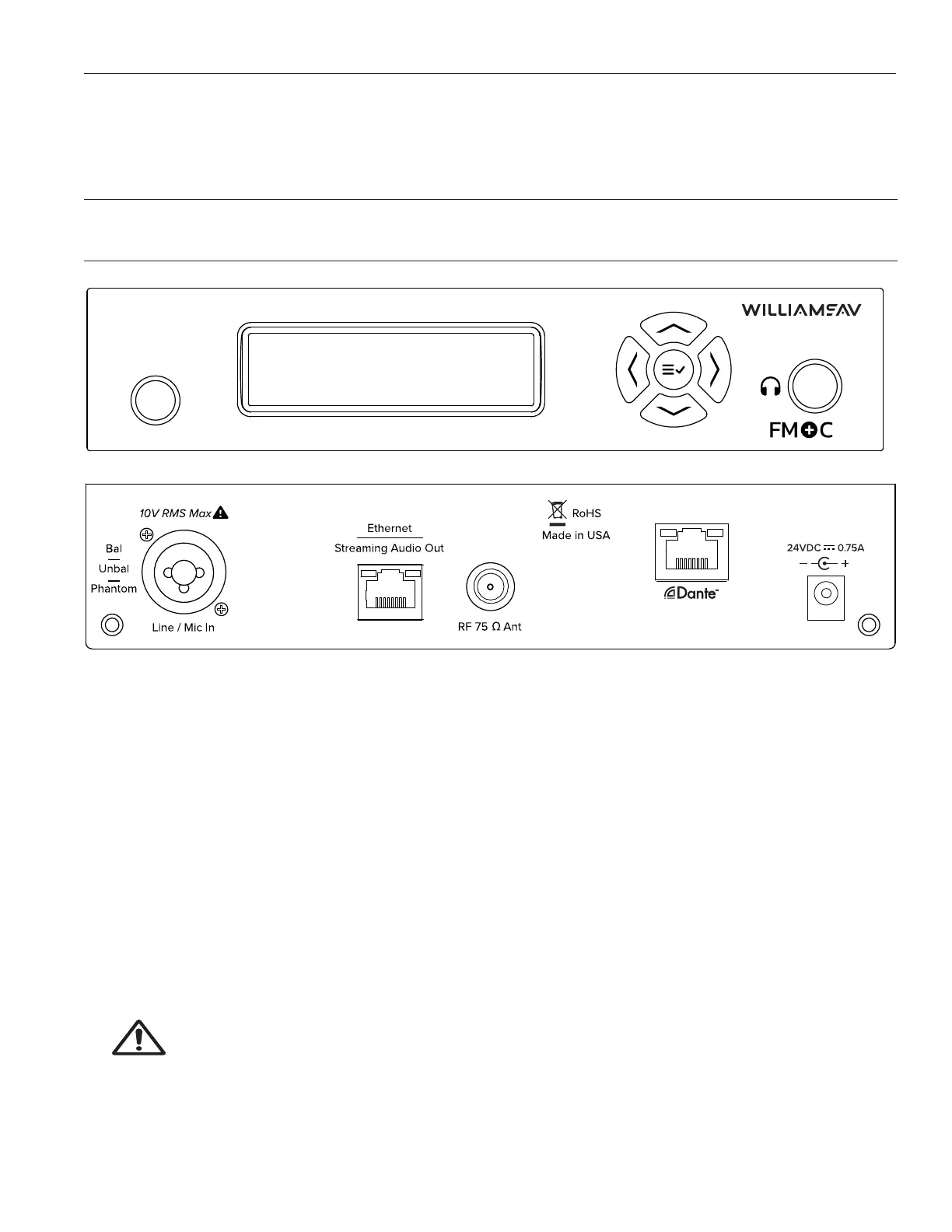

Wiring and Connections
Power Supply Connection
Connect the TFP 062 power supply to the round Power Supply Jack located on the rear of the FM+ C transmitter
labelled "24VDC 0.75A".
Ethernet and Dante RJ-45 Connection
If connecting to a network or directly to a PC, a. Ethernet cable must be used. A crossover cable is not necessary
because the T55C is auto-configuring.
Audio Source Connections
The FM+ C transmitter will accept the following audio sources:
1� Balanced Microphone with or without 12 volt phantom power (DIN 45596) on a 3-pin (XLR) connector�
2� Balanced/Unbalanced microphone with or without phantom power on 1/4 inch (TRS) jack
3� Balanced/Unbalanced Line on a 3-pin (XLR) connector�
4� Balanced/Unbalanced Line on 1/4 inch (TRS) jack�
5� Dante on an RJ-45 jack (optional)�
WARNING:
The FM+ C is not designed to accept 70 volt speaker signals! This may result in damage to your system�
The sound source should come directly from the system mixer or digital source as a low-level or
unprocessed signal�
IMPORTANT: When a suitable audio source has been determined, you MUST configure the audio source in
the menu of the FM+ C before plugging that source in�
