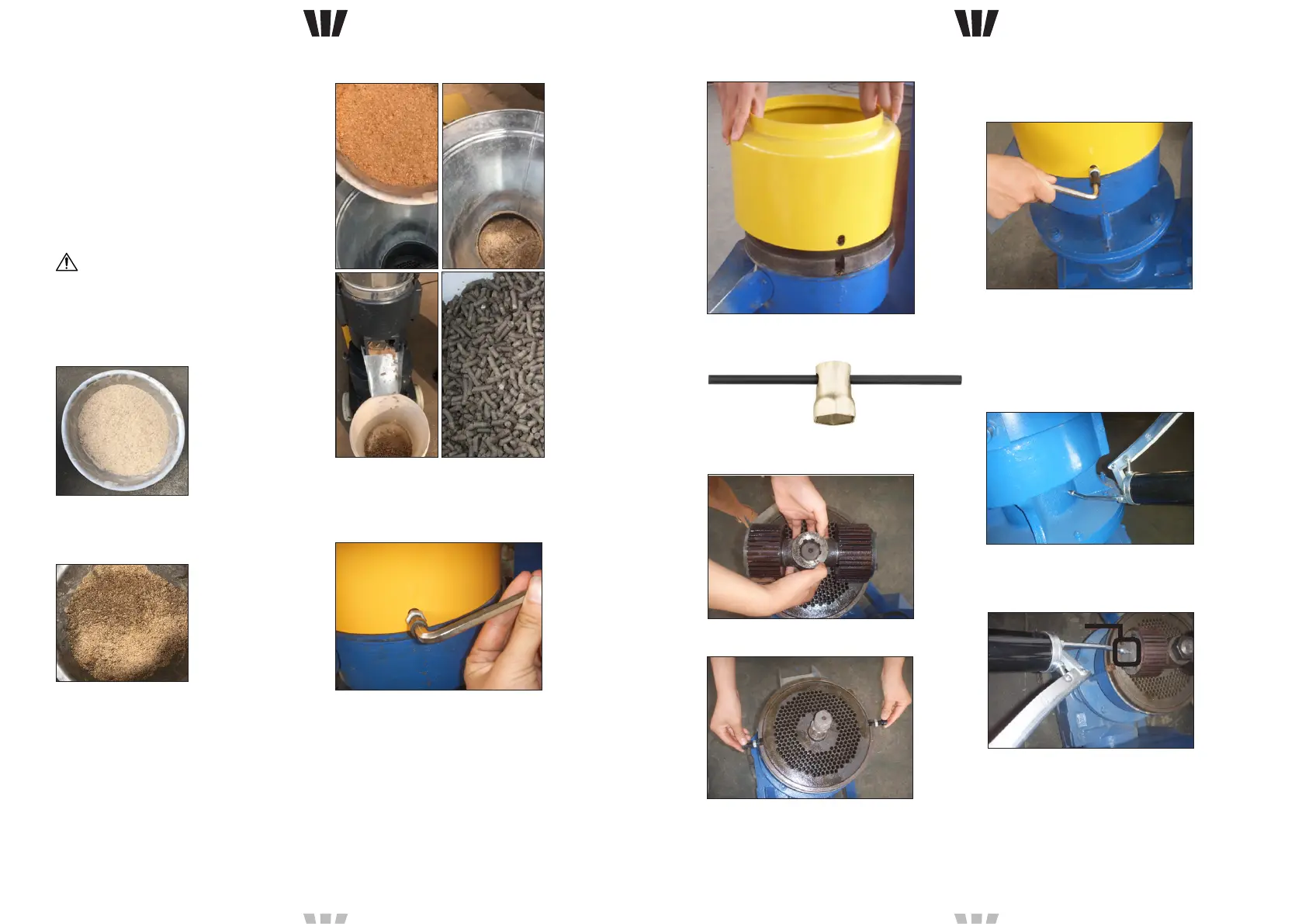

REPLACEMENT / REMOVAL OF THE DIE
To replace / remove the die, follow these steps:
• Disconnect the machine from the power supply.
• Unscrew the hopper and remove it from the machine.
• Loosen the clamping screw on the top casing.
• Remove the top casing. Clean the die and rolls from
the remnants of the material.
14
EN
• Assemble the special spanner included in the kit as
shown in the gure below.
• Use the special spanner to unscrew the large roller-
fastening nut located in the centre.
• Gently remove the rollers.
• Using the screws, slowly pull the die out of the
xture.
• The assembly should be carried out in the reverse
order as the disassembly.
15
EN
LUBRICATION OF BEARINGS AND ROLLERS
IMPORTANT: The rollers and the die should be lubricated
with bearing grease each time after 8 hours of machine
operation. Lubricate the bearings once a week.
To lubricate the bearings:
Press in the grease with the grease gun supplied with
the kit. Insert the end of the grease gun into the grease
injection hole as shown in the gure below.
To lubricate the rollers:
Press in the grease with the grease gun supplied with the
kit. Insert the end of the grease gun as shown in the gure
below.
ADJUSTMENT
Tighten the clamping screw so that the die rotates with
the rollers.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its
technical eciency and spot any damage.
i) Do not use sharp and/or metal objects for cleaning
(e.g. a wire brush or a metal spatula) because they
may damage the surface material of the appliance.
j) Do not clean the device with an acidic substance,
agents of medical purposes, thinners, fuel, oils or
other chemical substances because it may damage
the device.
k) Regularly lubricate the machine as per the
instructions.
GRINDING A NEW DIE
• 5 kg of ne sand (optional),
• 1,5 l of vegetable, used or dirty oil
b) Mix all ingredients in a bucket until to prepare
a mixture like in the photo below.
c) Press the mixture 80 to 90 times through the die,
until the granules coming out of the chute meet the
quality requirements.
IMPORTANT! the die is a consumable part - its
service life is approx. 300 working hours or 30 days
(daily use for approx. 6 hours). The used element is
not subject to warranty. If the wear of the die is 4
mm, replace it with a new one.
Before rst use, a new die should be polished and cleaned
using the following process:
a) Prepare
• 5kg our or saw dust,
