10.5"
9.5"
USABLE AREA
CONNECTOR INSERT PLATE
WFI12x12
The key latch body is installed from the back of the door and secured by
pushing the spring clip under the protruding ears and snapping the back
edge into the latch cutout in the door. Two keys are included with each
latch and all latches are keyed alike.

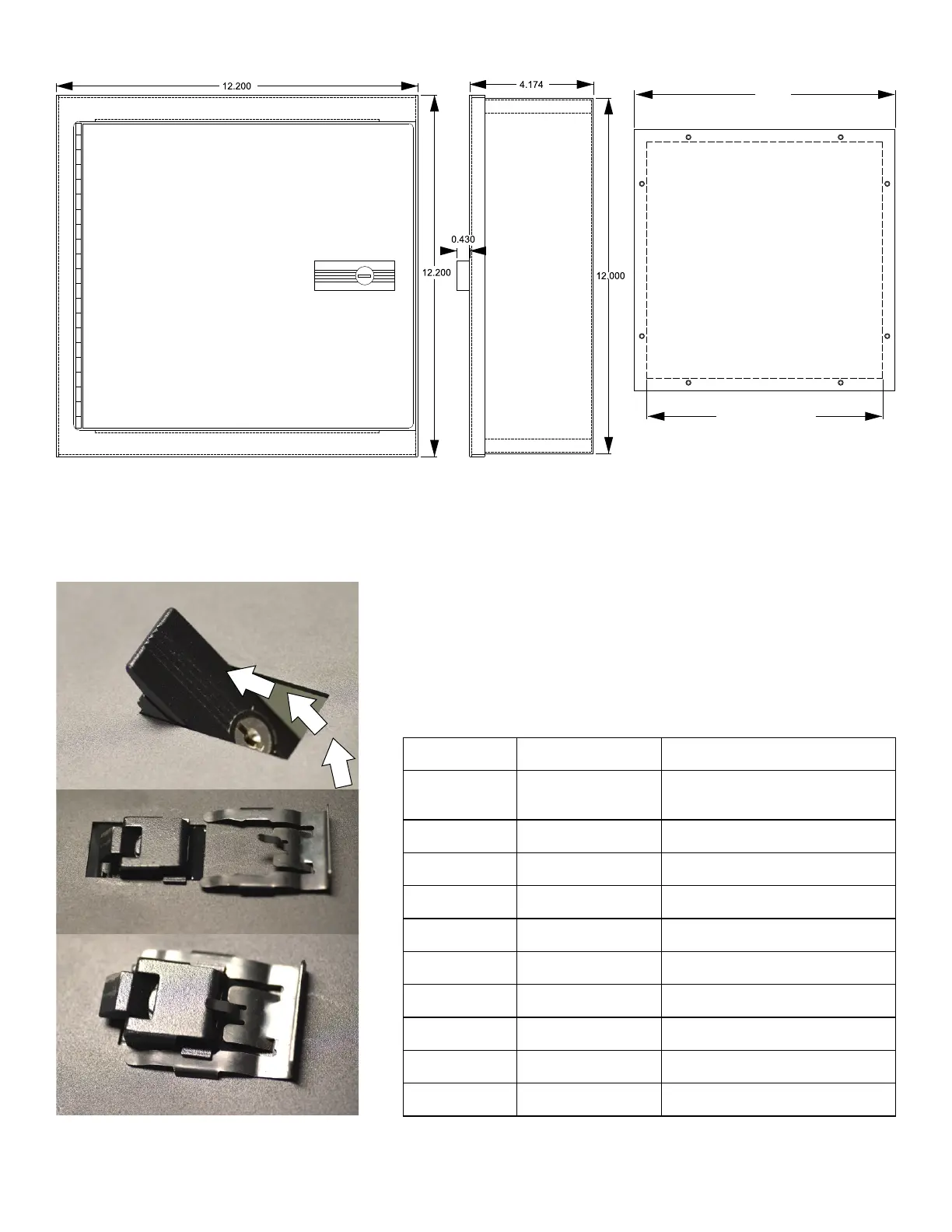

TYPE 1 NEMA DESIGN MOUNTING DIMENSIONS
BACKBOX MOUNTING HOLES BY INSTALLER
INCLUDED PARTS
Both the door and the connector plate attach to the separate black recess frame. The door attaches to the top and bottom of the
frame, which must be mounted to the 12X12” back box so that the holes for the cover mounting screws are positioned correctly.
Mounting holes for the frame are provided on all four edges and it is recommended that screws be installed in each side.
Flathead screws (SCR832X3/8FPU) are included.
whirlwind · 99 Ling Road Rochester, NY 14612 · 800 733-9473 · http://whirlwindusa.com
1 WFSD12 DOOR UNIT/ALMOND
1
WFSD12X1
OR
WFSD12X2.5
1” RECESSED FRAME 0R
2.5” RECESSED FRAME
2) 1” MAGSTRIP3/4 MAGNETIC STRIPS
8 SCR832X3/8FPU
FRAME TO BOX MOUNTING
SCREWS
6 SCR832X5/16PPMB DOOR MOUNTING SCREWS
1 KEYLATCHAMD
BODY WITH SPRING CLIP AND
KEYS/ALMOND
1 KEYLATCH STRIKE LATCH STRIKE
2 SCR#4X1/4PPB STRIKE MOUNTING SCREWS
8 SCR632X5/16FPM
CONNECTOR PLATE
MOUNTING SCREWS
1 WFI12X12 CONNECTOR PLATE
1 WFSD12BB 12X12X4 BACK BOX/ALMOND
