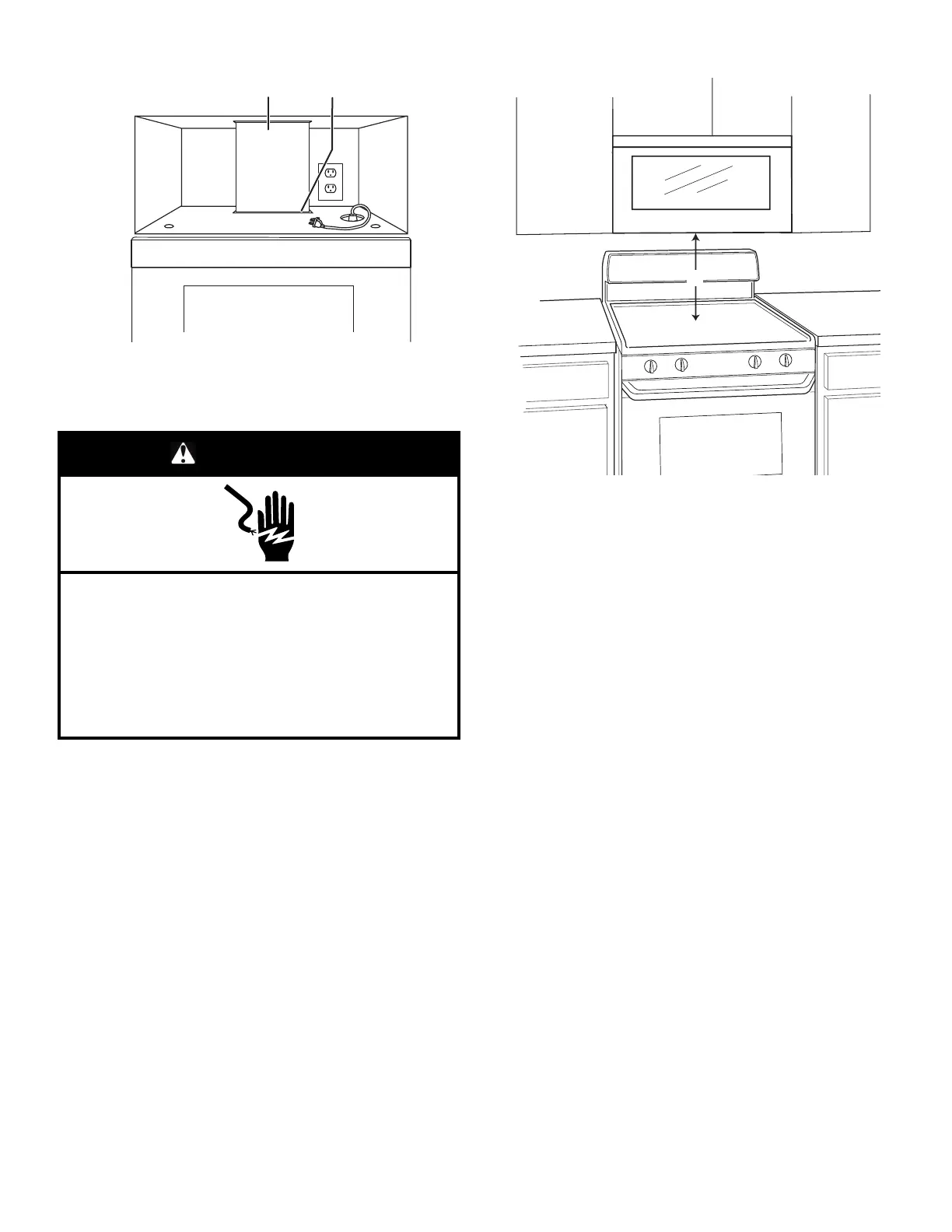

11. Connect vent to damper assembly.
A B
A. Vent
B. Damper assembly (under vent) Compact
Complete Installation
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug microwave oven into grounded 3 prong outlet.
2. Reconnect power.
3. Check the operation of microwave oven by placing
1 cup (250 mL) of water on the turntable and programming a
cook time of 1 minute at 100% power. Test vent fan and
exhaust by operating the vent fan.
4. If the microwave oven does not operate:
� Check that a household fuse has not blown, or that a
circuit breaker has not tripped. Replace the fuse or reset
the circuit breaker. If the problem continues, call an
electrician.
� Check that the power supply cord is plugged into a
grounded 3 prong outlet.
5. See the Quick Start Guide for more informations.
The installation is now complete.
Save this owner manual for future use.
A
A. 12
7
/
8
" (33 cm) is the height from the highest point of the
stove to the bottom of the microwave oven.
VENTING DESIGN
SPECIFICATIONS
This section is intended for architectural designer and
builder/contractor reference only.
NOTES:
� Vent materials needed for installation are not provided with
microwave hood combination.
� We do not recommend using a flexible metal vent.
� To avoid possible product damage, be sure to vent air outside,
unless using recirculation installation. Do not vent exhaust air
into concealed spaces, such as spaces within walls or ceilings,
attics, crawl spaces or garages.
For optimal venting installation, we recommend:
� Using roof or wall caps that have backdraft dampers.
� Using a rigid metal vent.
� Using the most direct route by minimizing the length of the vent
and number of elbows to provide efficient performance.
� Using uniformly sized vents.
� Using duct tape to seal all joints in the vent system.
� Using caulking compound to seal exterior wall or roof opening
around cap.
� Not installing 2 elbows together, for optimal hood performance.
If venting through the wall, be sure that there is proper clearance
within the wall for the damper to open fully.
