Check local codes. Check existing electrical supply. See “Electrical Requirements”.
It is recommended that all electrical connections be made by a licensed, qualified electrical installer.
NOTE:
� The hardware items listed here are for wood studs. For other types of wall structures, be sure to use appropriate fasteners.
� Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional
parts. To order, see the “Online Ordering Information” section of the Quick Start Guide.
Location Requirements
Check the opening where the microwave oven will be installed.
The location must provide:
� Minimum installation dimensions. See the “Installation
Dimensions” illustration.
� Minimum one 2" x 4" (5.1 x 10.2 cm) wood wall stud and
minimum 3/8" (1 cm) thickness drywall or plaster/lath within
cabinet opening.
� Support for weight of 150 lbs (68 kg) which includes
microwave oven and items placed inside the microwave oven
and upper cabinet.
� Grounded electrical outlet inside upper cabinet. See the
“Electrical Requirements” section.
NOTE:
� If installing the microwave oven near a left sidewall, make sure
there is at least 6" (15.2 cm) of clearance between the wall and
the microwave oven so that the door can open fully.
� Some models have a pocket handle. If installing the
microwave near a right side wall, make sure there is at least 3"
(7.6 cm) of clearance between wall and microwave oven so
you can grab the handle integrated inside the door.
� Some cabinet and building materials are not designed to
withstand the heat produced by the microwave oven for
cooking. Check with your builder or cabinet supplier to make
sure that the materials used will not discolor, delaminate, or
sustain other damages.
Special Requirements
For Wall Venting Installation Only:
� Cutout must be free of any obstructions so that the vent fit
properly and the damper blade opens freely and fully.
For Roof Venting Installation Only:
� If you are using a rectangular-to-round transition piece, the 3"
(7.6 cm) clearance needs to exist above the microwave oven
so that the damper blade can open freely and fully. See
“Rectangular to Round Transition” illustration in the “Venting
Design Specifications” section.
Product Dimensions
16
3
/
8
"
(41.6 cm)
17
1
/
8
"
(43.5 cm)
29
7
/
8
" (76 cm)
Up to 17
7
/
8
"
(45.4 cm
) *
*Overall depth of product will vary slightly depending on door
design.

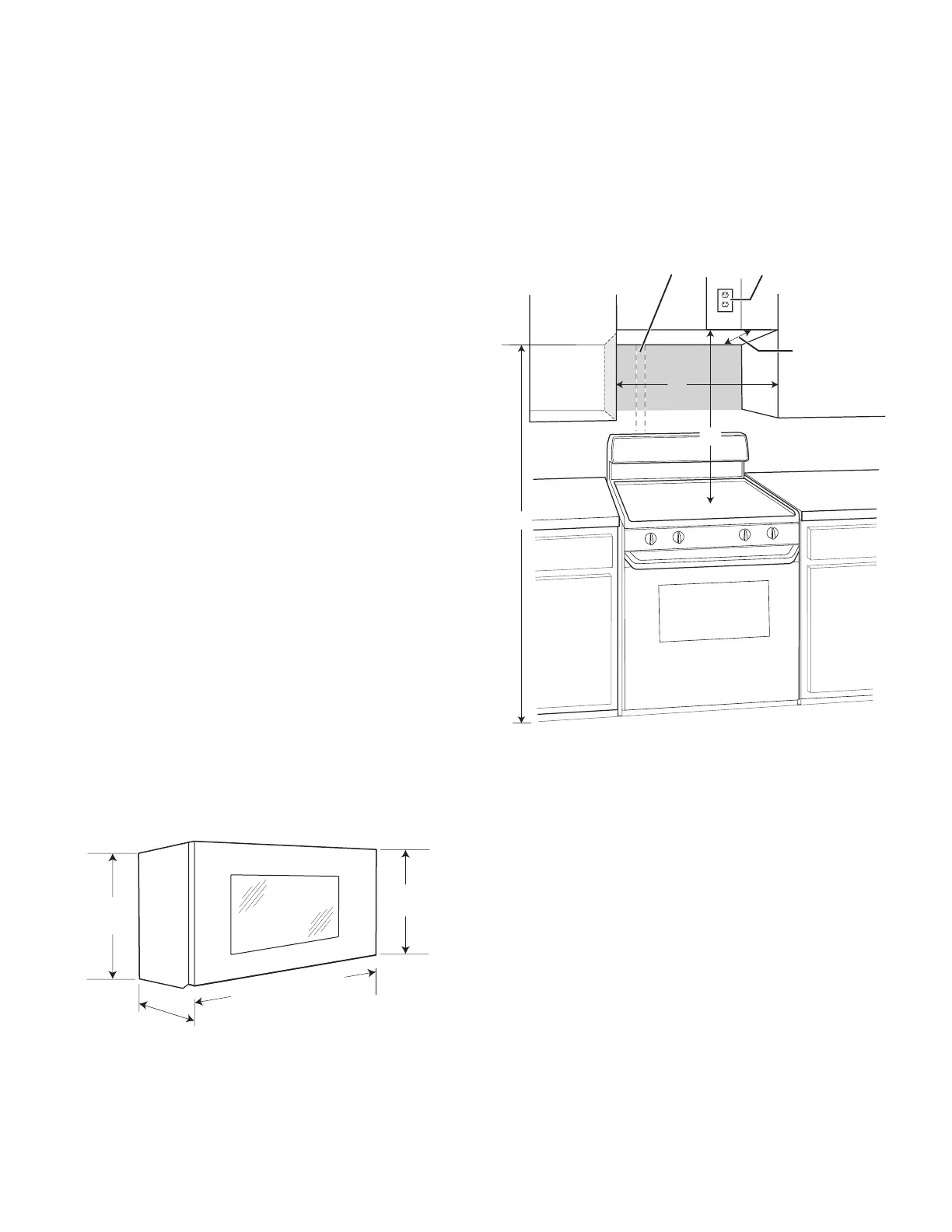

Installation Dimensions
NOTE: The grounded 3 prong outlet must be inside the upper
cabinet. See the “Electrical Requirements” section.
B
C
F
D
A
E
A. 2" x 4" (5.1 cm x 10.2 cm)
wall stud
B. Grounded 3 prong outlet
C. 12" (30.5 cm) minimum,
14" (35.6 cm) maximum*
D. 30" (76.2 cm) typical**
E. 30" (76.2 cm) minimum
F. 66" (167.6 cm) minimum
Exact dimensions may vary depending on type of range/cooktop
below.
*Upper cabinet and side cabinet depth: 12" (30.5 cm) minimum,
14" (35.6 cm) maximum*
**30" (76.2 cm) is typical for 66" (167.6 cm) installation height.
