18

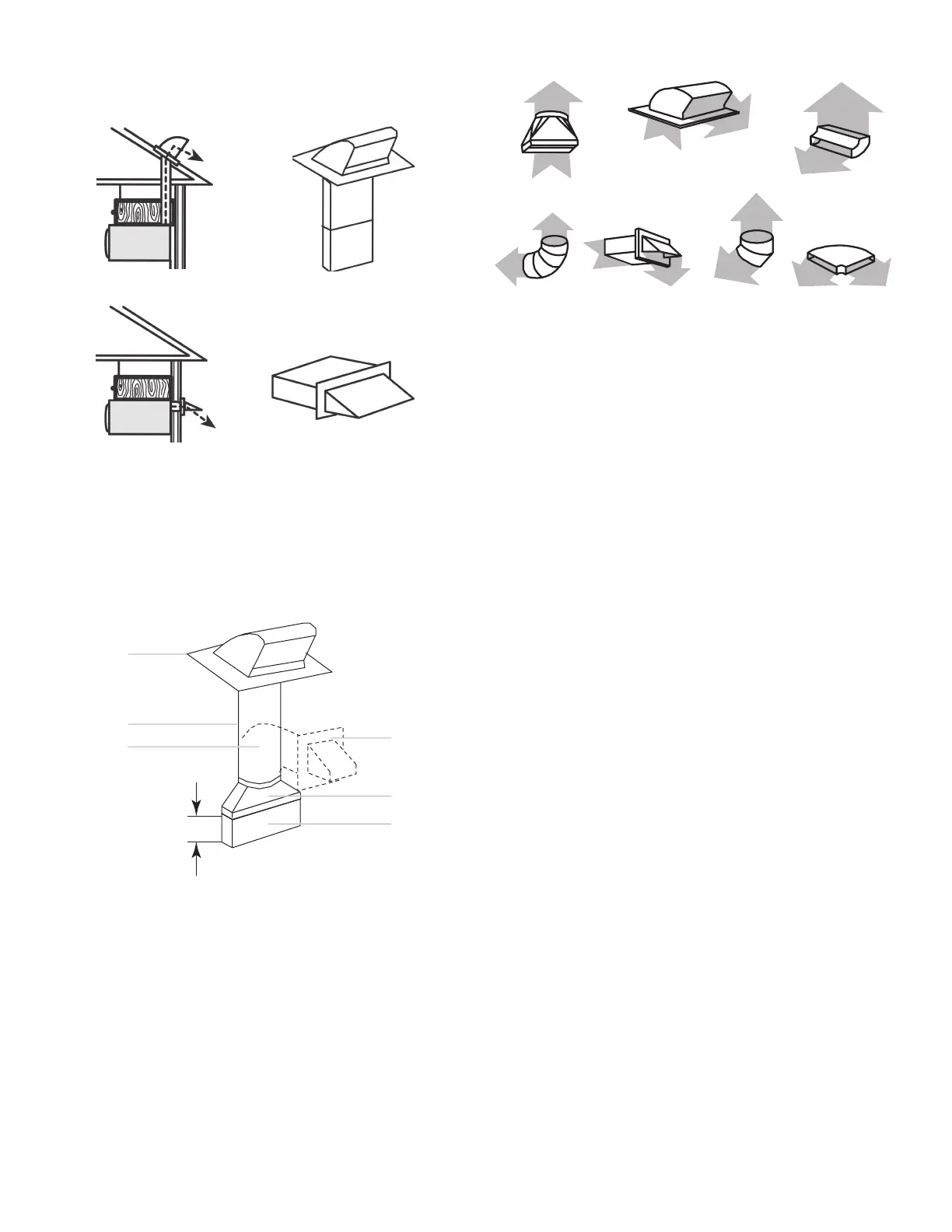

If venting through the roof, and rectangular-to-round transition is
used, be sure there are at least 3" (7.6 cm) of clearance between
the top of the microwave oven and the transition piece. See
“Rectangular-to-Round Transition” illustration.
A
B
C
D
A. Roof venting
B. Roof cap
C. Wall venting
D. Wall cap
Rectangular-to-Round Transition
NOTE: The minimum 3" (7.6 cm) clearance must exist between
the top of the microwave oven and the rectangular-to-round
transition piece so that the damper can open freely and fully.
A
B
C
E
F
G
D
A. Roof cap
B. 6" (152 mm) minimum diameter round vent
C. Elbow (for wall venting only)
D. Wall cap
E. 3
1
/
4
" x 10" to 6" (8.3 x 25.4 cm to 15.2 cm) a
rectangular-to-round transition piece
F. Vent extension piece, at least 3" (7.6 cm) high
G. 3" (7.6 cm)
Recommended Standard Fittings
NOTE: The minimum 3" (7.6 cm) clearance must exist between
the top of the microwave oven and the rectangular-to-round
transition piece so that the damper can open freely and fully.
A B C
D E F G
A. Rectangular-to-round transition piece: 3
1
/
4
" x 10" to 6" = 5 ft
(8.3 x 25.4 cm to 15.2 cm = 1.5 m)
B. Roof cap: 3
1
/
4
" x 10" = 24 ft (8.3 x 25.4 cm = 7.3 m)
C. 90° elbow: 3
1
/
4
" x 10" = 25 ft (8.3 x 25.4 cm = 7.6 m)
D. 90° elbow: 6" = 10 ft (15.2 cm = 3 m)
E. Wall cap: 3
1
/
4
" x 10" = 40 ft (8.3 x 25.4 cm = 12.2 m)
F. 45° elbow: 6" = 5 ft (15.2 cm = 1.5 m)
G. 90° flat elbow: 3
1
/
4
" x 10" = 10 ft (8.3 x 25.4 cm = 3 m)
Recommended Vent Length
A 3
1
/
4
" x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round
vent should be used.
The total length of the vent system including straight vent,
elbow(s), transitions and wall or roof caps must not exceed the
equivalent of 140 ft (42.7 m) for either type of vent. See the
“Recommended Standard Fittings” section for equivalent lengths.
For best performance, use no more than three 90° elbows.
