15

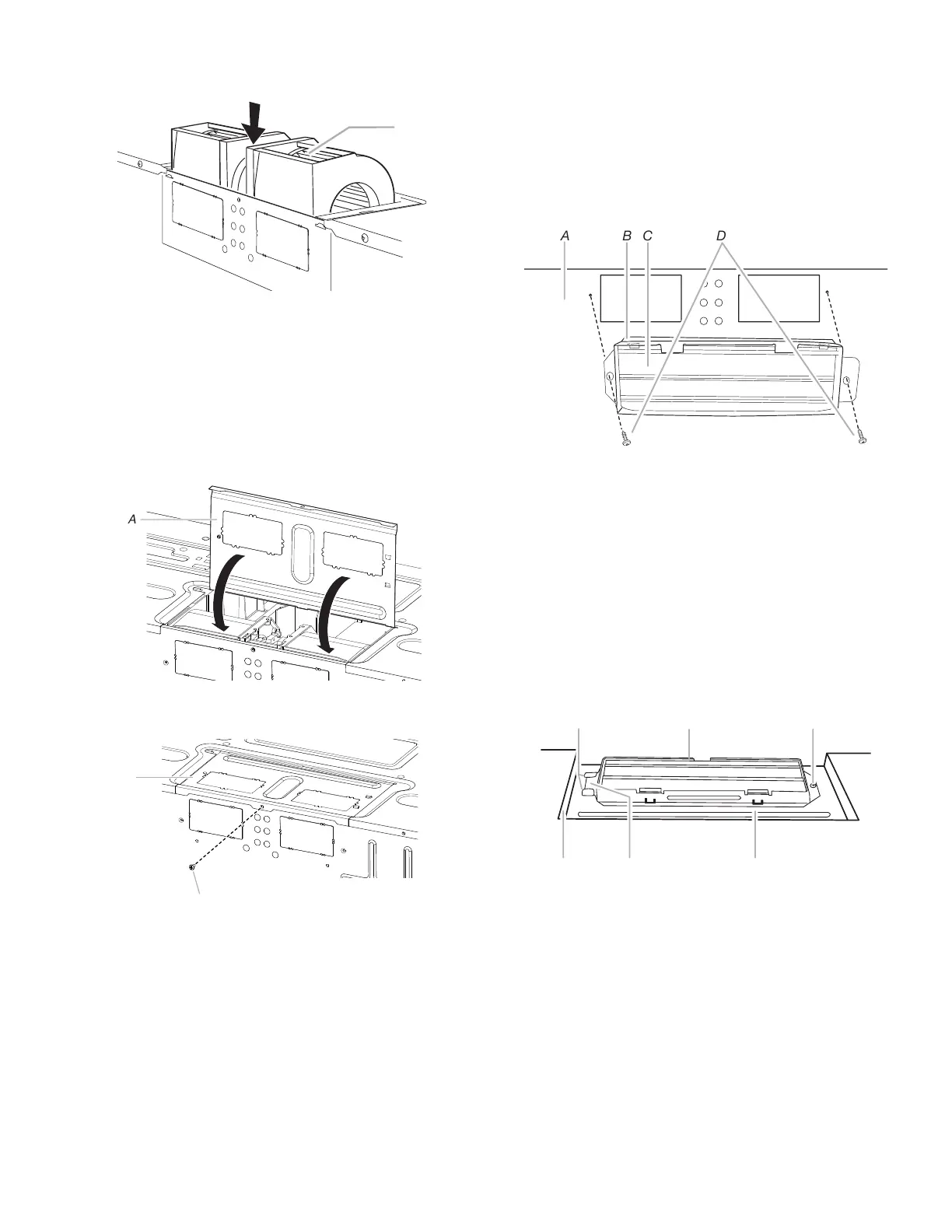

3. Lower blower motor back into microwave oven. Exhaust ports
face the top of microwave oven.
A
A. Exhaust port
IMPORTANT: If blower motor is not positioned with flat side
facing the back of the microwave oven (as shown),
performance will be poor.
4. Reconnect the blower motor wire into the connector.
5. Reattach the 2 blower screws into the recessed holes in the
back of the microwave.
6. Check to make sure the 2 screws are secured properly in the
blower motor screw holes, so that the motor cannot move.
7. Return the damper plate to its original horizontal position.
A
A. Damper plate
8. Secure damper plate with screw removed in Step 1.
A
B
A. Damper plate
B. Screw
9. Repeat Step 14 from “Wall Venting Installation Only.”
Install Damper Assembly
If for recirculation installation, no need to install the damper
assembly, this section can be skip. And save it for future use.
Install Damper (For Wall Venting)
1. Find the damper in outer foam in the carton.
2. Check that damper blade moves freely, and opens fully.
3. Position the damper assembly on the back of the microwave
oven so that the damper blade hinge is at the top, and the
damper blade opens away from the microwave oven.
A B C D
A. Back of microwave oven
B. Damper assembly
C. Damper blade
D. #6 x 3/8" Sheet metal
screws (in the screw pack)
4. Secure damper assembly with two #6 x 3/8" sheet metal
screws, see above illustration.
Install Damper (For Roof Venting)
1. Find the damper in outer foam in the carton.
2. Check that damper blade moves freely and opens fully.
3. Insert damper assembly through the cabinet cutout so that the
long tab of the damper assembly slides under the raised tabs
of the damper plate. Then secure with #6 x 3/8" sheet metal
screw.
NOTE: The screw cannot be installed if the damper assembly
is not positioned as shown.
A B C
D E F
A. Raised tabs
B. Damper assembly
C. #6 x 3/8" Sheet metal
screws
D. Upper cabinet cutout
E. Long tab
F. Damper plate
