14

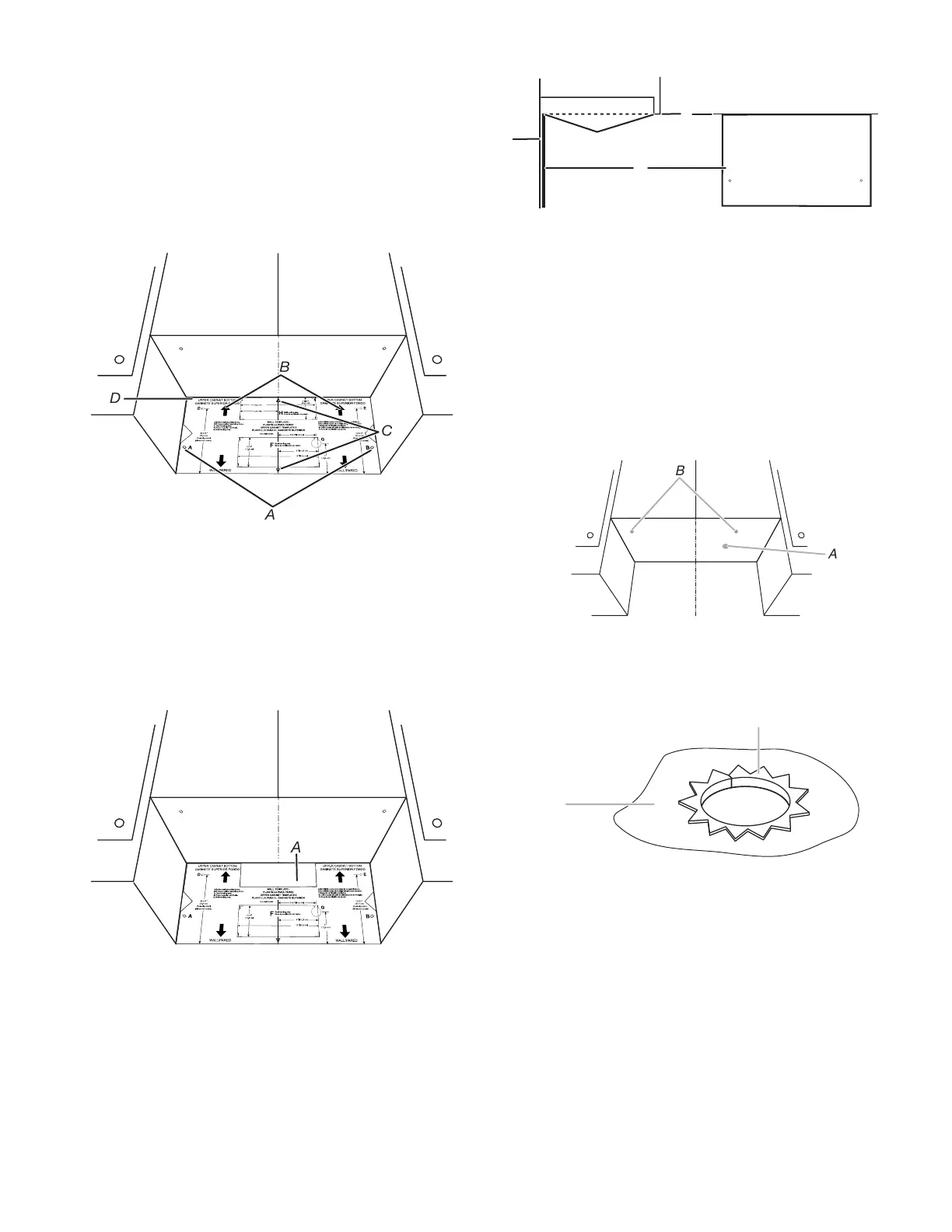

Mark Rear Wall
The microwave oven must be installed on a minimum of 1 wall
stud, preferably 2, using a minimum of 1 lag screw, preferably 2.
See “Find the Wall Stud(s)” section for find the wall studs.
Align the center markers on the cardboard plate, to the centerline
on the wall, making sure it is level, and that the top of the
cardboard template is butted up against the back edge of the
upper cabinet. (see following NOTE before making marks).
1. Use a pencil to draw two small circles A and B holes.
A
B
C
D
A. A and B holes
B. Arrows to upper cabinet
C. Center marks on cardboard plate
D. Back edge of upper cabinet
2. Use a pencil to mark the wall venting hole (wall venting
installation only), skip it if your unit is for recirculation or upper
cabinet venting installation.
A
A. Wall venting hole
NOTE: If the front edge of the upper cabinet is lower than the back
edge, lower the cardboard template so that its top is level with the
front edge of the cabinet.
A
C
B
D
A. Rear wall
B. Cardboard plate
C. Top of cardboard plate must align with front edge of
cabinet
D. Front edge of upper cabinet
Drill holes in Upper Cabinet
1. Using a drill and the 3/4" (1.9 cm) hole saw, cut out the power
cord hole (A).
2. Drill two mounting nut holes (B), which are 3/8" (10 mm) holes
at points “D” and “E” on the cardboard template. These are for
two 1/4-20 x 3" bolts and washers used to secure the
microwave oven to the upper cabinet.
A
B
A. Power Cord Hole
B. Mounting Nut Holes
NOTE: If upper cabinet is metal, the supply cord bushing
needs to be installed around the supply cord hole as shown.
A
B
A. Metal cabinet
B. Power supply cord bushing
