13

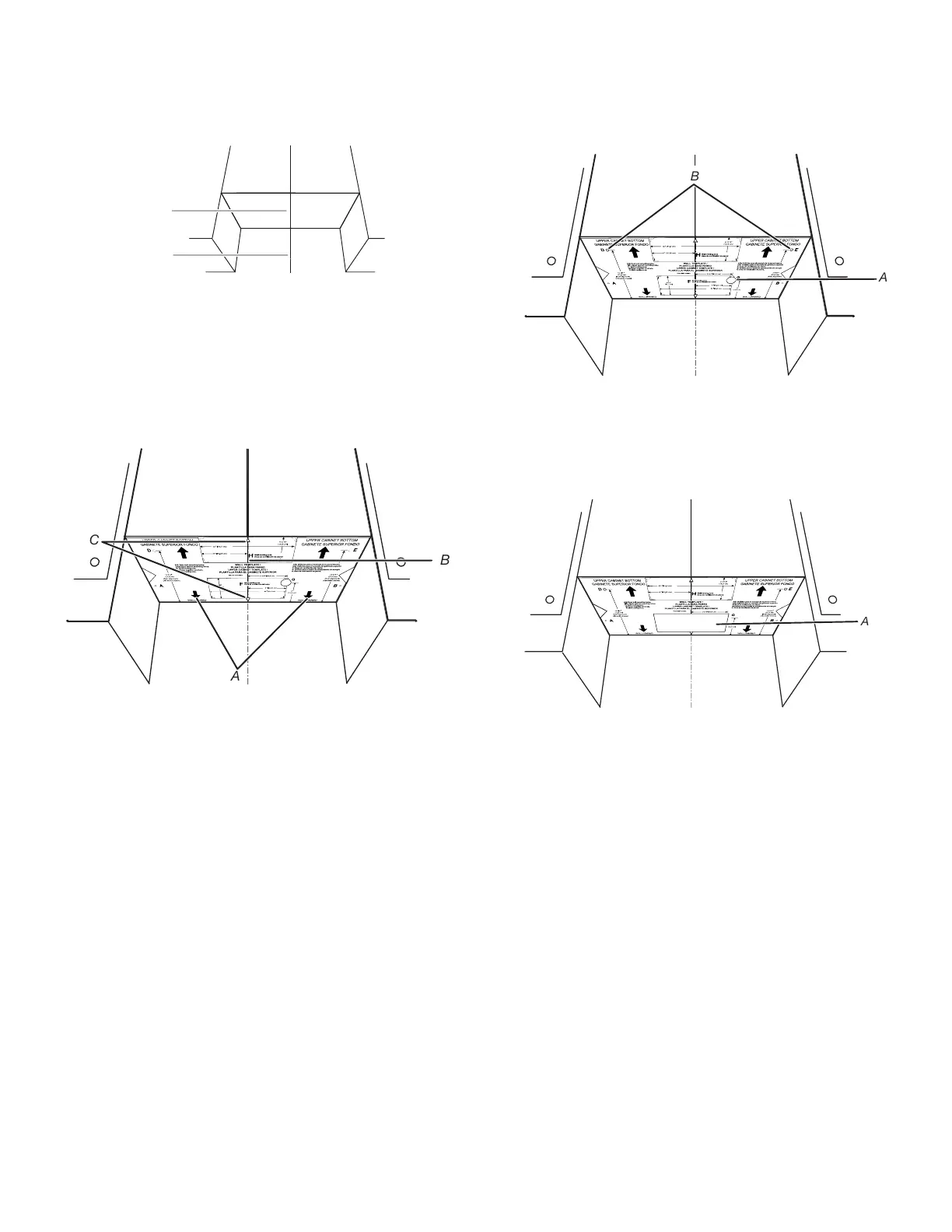

Mark Upper Cabinet
1. Using a tape, measure clearly and mark the vertical centerline
of the opening. Make sure it aligns with the vertical wall
centerline. Use a pencil to draw the centerlines on the upper
cabinet and wall.
A
B
A. Upper cabinet centerline
B. Wall centerline
NOTE: The cardboard plate is fit for depth of 12" to 14" (30.5 to
35.6 cm) cabinet installation, if cabinets are larger than 14"
(35.6 cm), and up to 15" (38.1 cm), using the bump out mounting
kit, replacing the mounting plate supplied with the product. The
bump out mounting kit (part#- W11185746) is not provided.
To order, see the “Online Ordering Information” section of the
Quick Start Guide.
B
A
C
A. Arrows to wall
B. Upper cabinet centerline
C. Center marks on cardboard plate
2. Placing the cardboard plate against the bottom of the upper
cabinet. Make sure the cardboard plate centerline aligns with
the centerline on the upper cabinet which drew in step 1. And
the Arrows to wall(A) must be against the rear wall so that the
holes cut into the upper cabinet align with the holes in the top
of the microwave oven.
3. Use a pencil to mark power supply hole(G) and 2 mounting
holes(D) and (E) as shown in following figure. Make sure the
10
3
⁄
4
" (27.4 cm) dimension from the rear wall to "D" and "E"
on the mounting plate is maintained. And 1
1
⁄
2
" (3.8 cm)
diameter for "G" hole.
A
B
A. Power cord hole
B. Mounting nut holes
4. Use a pencil to mark the upper cabinet vent hole. This step
can be skipped if your unit is using recirculation or wall venting
installation.
A
A. Upper cabinet vent hole
