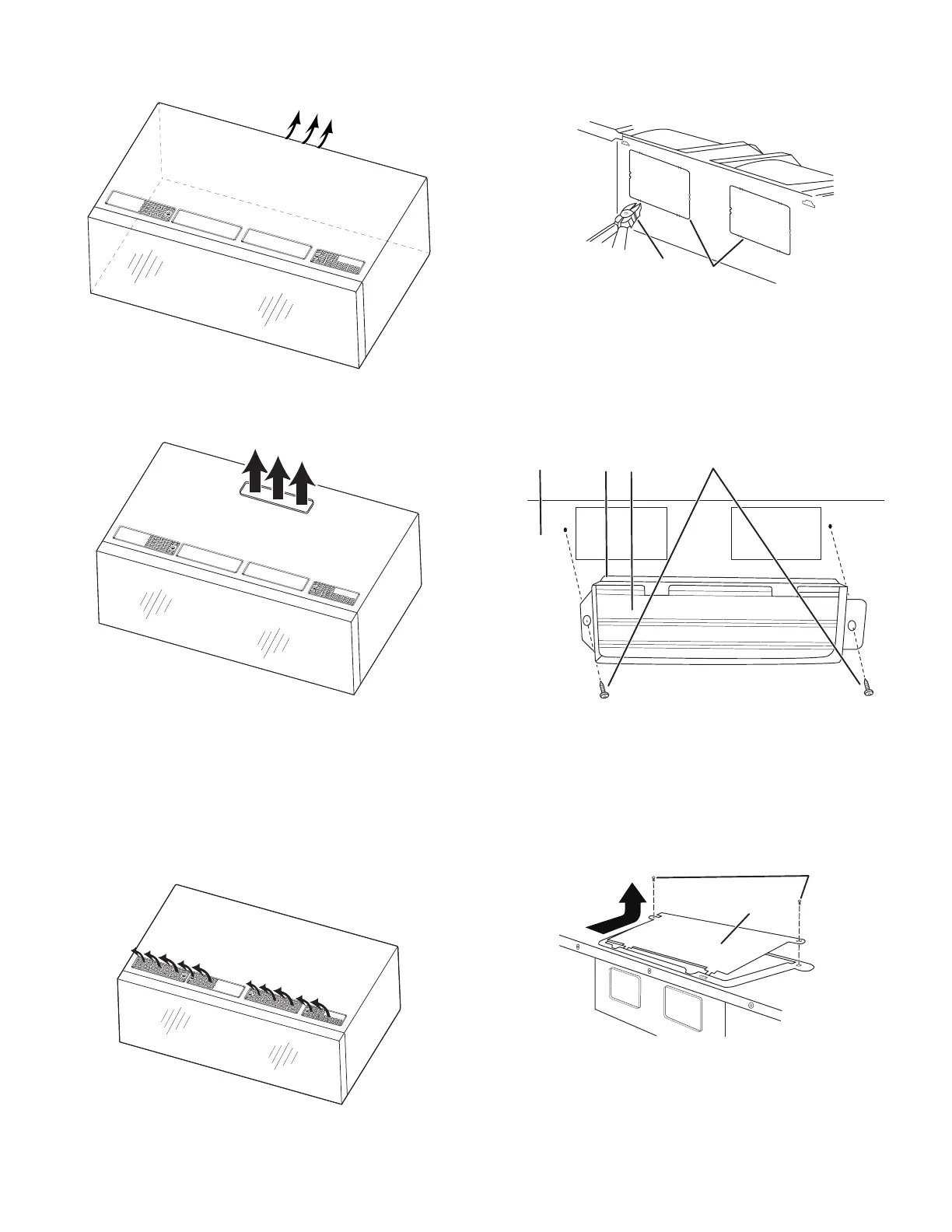

Install Damper (For Wall Venting)
1. Using diagonal wire cutting pliers, gently snip out the
rectangular vent cover on the damper plate.
A
B
A. Diagonal wire cutting pliers
B. Damper vent covers
2. Find the damper in outer foam in the carton.
3. Check that damper blade moves freely, and opens fully.
4. Position the damper assembly on the back of the microwave
oven so that the damper blade hinge is at the top, and the
damper blade opens away from the microwave oven.
5. Secure damper assembly with two #6 x 3/8" Sheet metal
screws, see above illustration.
A
B C
D
A. Back of microwave oven
B. Damper assembly
C. Damper blade
D. #6 x 3/8" Sheet metal screws (in the screw pack)
Install Damper (For Roof Venting)
1. Remove screws attaching damper plate to top of microwave
oven exterior. Slide damper plate toward the front of the
microwave oven and lift up.
A
B
A. Screws
B. Damper plate
2. Find the damper in outer foam in the carton.
3. Check that damper blade moves freely, and opens fully.
Wall Venting
Roof Venting
INSTALLATION INSTRUCTIONS
The Microwave oven is set for recirculation installation. For wall or
roof venting, changes must be made to the venting system.
NOTE: Skip below sections if you are using recirculation
installations. Go to section "Locate Wall Stud(s)". Keep the
damper assembly in case the venting method is changed or the
microwave oven is reinstalled in another location where wall or
roof venting may be used.
