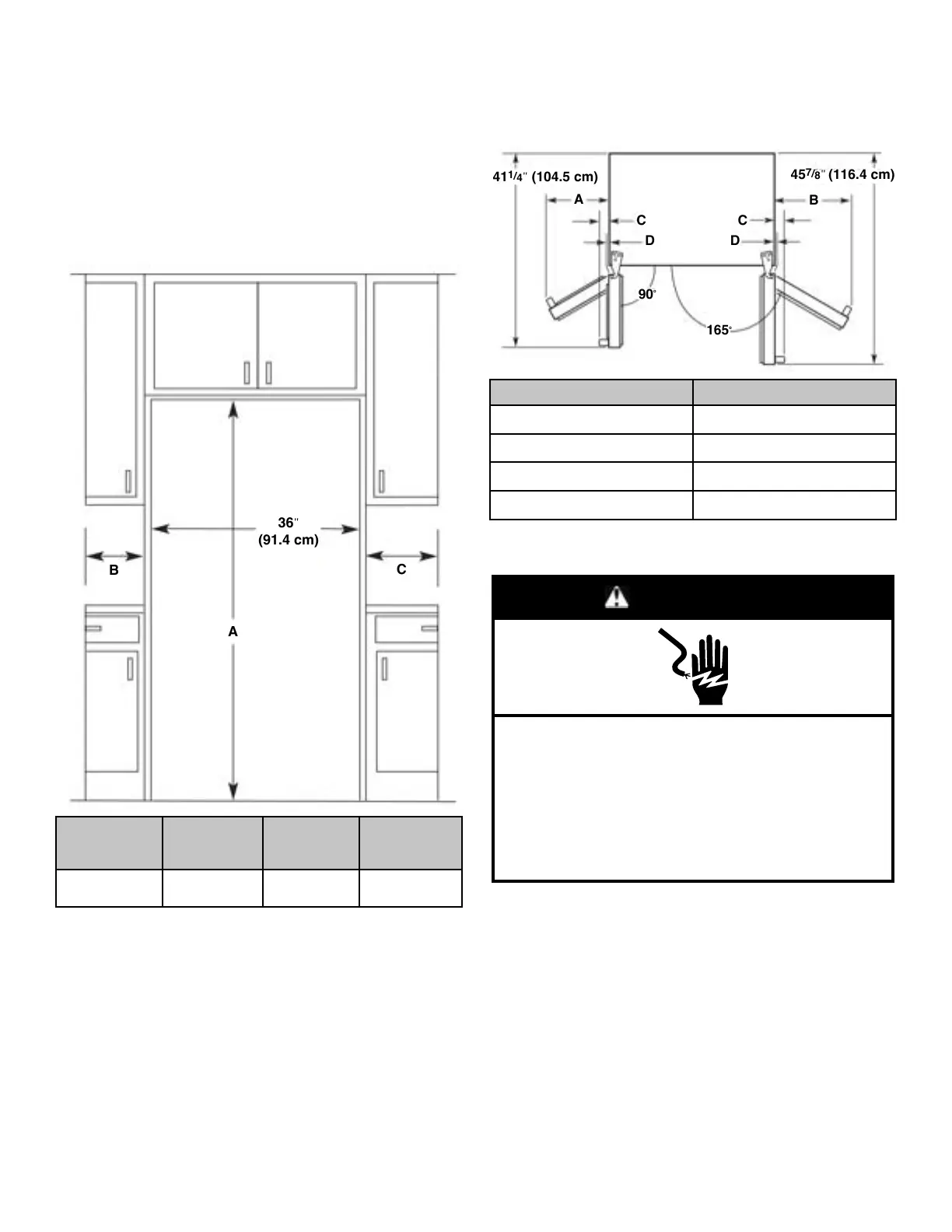

Opening Dimensions
� Height dimensions are shown with the leveling legs extended
to the minimum height of 1/4" (6.35 mm) below the refrigerator.
NOTE: When leveling legs are fully extended to 1" (25 mm)
below the refrigerator, add 3/4" (19 mm) to the height
dimensions.
� In the following graphic, “A” represents the opening height
required for standard cabinets. For full-overlay cabinet doors
with a trim kit, add 1/8" (0.3 cm).
� In the following graphic, “B” represents the distance needed to
fully open the freezer door and “C” represents the distance
needed to fully open the refrigerator door.
36
”
(91.4 cm)
B
A
C
Model Size
and Door
Style
Height A Width B Width C
69" Curved 69"
(175.3 cm)
13
5
/
8
"
(34.6 cm)
18
3
/
8
"
(46.7 cm)
Door Swing Dimensions
� Location must permit doors to open to a minimum of 165°.
� In the following graphic, “A” represents the distance needed to
fully open the freezer door and “B” represents the distance
needed to fully open the refrigerator door.
41
1
/
4
”
(104.5 cm)
45
7
/
8
”
(116.4 cm)
A
C
C
D
90
o
165
o
D
B
Dimension Curved Doors
A 13
3
/
4
" (34.9 cm)
B 18
3
/
8
" (46.7 cm)
C 3
3
/
4
" (9.5 cm)
D 1
1
/
4
" (3.2 cm)
Electrical Requirements
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 V, 60 Hz AC-only, 15 A or 20 A fused, grounded electrical
supply is required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn cooling off or turn the control
(thermostat, refrigerator, or freezer control depending on the
model) to Off. Then disconnect the refrigerator from the electrical
source. When you are finished, reconnect the refrigerator to the
electrical source. Turn cooling on or reset the control (thermostat,
refrigerator, or freezer control depending on the model) to the
desired setting. See “Control Descriptions” in the Quick Start
Guide.
