14
Water and Ice Dispensers
On how to use your water and ice dispensers, see the online
“Side-by-Side Refrigerator Dispensers” Feature Guide.
NOTES:
� Connect to potable water supply only.
� The dispensing system will not operate when either door
(refrigerator or freezer) is open.
� Allow 24 hours for the refrigerator to cool down and chill water.
� Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced. Wait 72 hours for full ice
production.
� On some models, the display screen on the dispenser control
panel will turn off automatically and enter “sleep” mode when
the control buttons and dispenser pads have not been used for
2 minutes or more. While in “sleep” mode, the first press of a
control button will only reactivate the display screen, without
changing any settings.
Flush the Water System
Air in the water dispensing system can cause the water dispenser
to drip. After connecting the refrigerator to a water source or
replacing the water filter, flush the water system. Flushing the
water dispensing system forces air from the water line and filter
and prepares the water filter for use.
NOTE: As air is cleared from the system, water may spurt out of
the dispenser.
1. Using a sturdy container, depress and hold the water
dispenser pad for 5 seconds; then release it for 5 seconds.
2. Repeat step 1 until water begins to flow.
3. Once water begins to flow, continue depressing and releasing
the dispenser pad (5 seconds on, 5 seconds off) until a total of
3 gallons (12 Liter) has been dispensed.
Additional flushing may be required in some households.
The Water Dispenser
IMPORTANT:
Dispense at least 1 quartz (1 Liter) of water every week to
maintain a fresh supply.
If the flow of water from the dispenser decreases, it could be
caused by low water pressure.
� With the water filter removed, dispense 1 cup (237 mL) of
water. If 1 cup of water is dispensed in 8 seconds or less, the
water pressure to the refrigerator meets the minimum
requirement.
� If it takes longer than 8 seconds to dispense 1 cup of water, the
water pressure to the refrigerator is lower than recommended.
See “Water Supply Requirements” or online “Troubleshooting”
for suggestions.
Ice Maker and Storage Bin
� Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
� The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
� Do not use anything sharp to break up the ice in the storage
bin. This can cause damage to the ice container and the
dispenser mechanism.
� Do not store anything on top of or in the ice maker or storage
bin.
Style 1

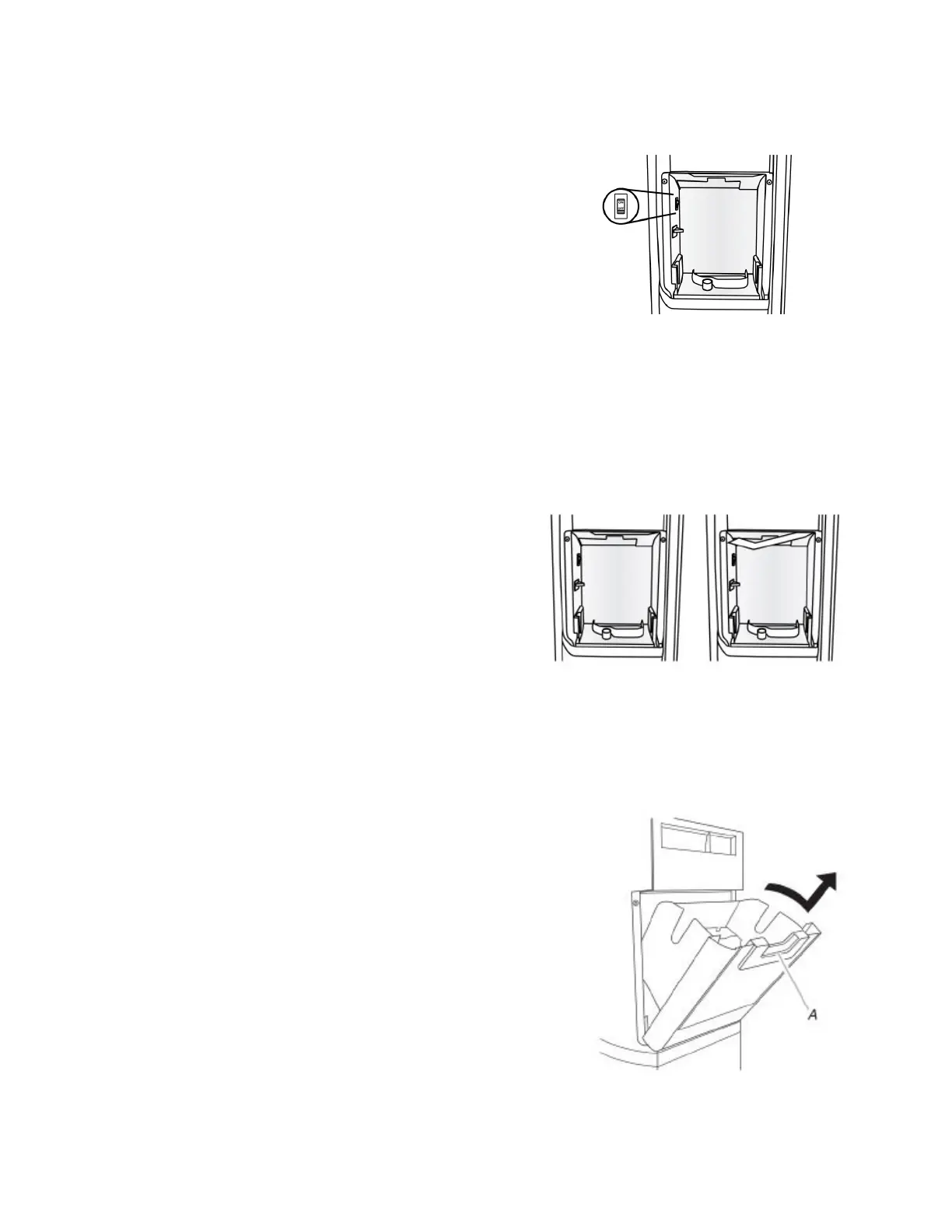

Turning the Ice Maker On/Off:
The On/Off switch, located on the left wall of the freezer door, can
only be accessed when the ice storage bin has been removed.
See the following section for bin removal instructions.
� To turn on the ice maker, flip the switch to the On (up) position.
� To manually turn off the ice maker, flip the switch to the Off
(down) position.
NOTE: The ice maker has an automatic shut-off to keep the
storage bin from overfilling during normal operation. As ice is
made, the ice cubes will fill the ice storage bin, and the ice cubes
will raise the shut-off arm to the Off (arm up) position. When the
storage bin is at full capacity, the ice maker will automatically stop
ice production, but the ice maker On/Off switch will remain in the
On (up) position.
Ice production Off (shut-off
arm up)
Ice production On (Shut-off
arm down)
Removing and Replacing the Ice Storage Bin:
1. Press down the release lever and tilt the bucket outward. Use
both hands to hold the base of the storage bin, and then lift it
up and out.
A. Release lever
