Replace Doors and Hinges
1. Replace the parts for the bottom hinge as shown in Bottom
Hinge graphic. Tighten screws. Replace the refrigerator door.
NOTE: Provide additional support for the refrigerator door
while the hinges are being moved. Do not depend on the
door gasket magnets to hold the door in place while you are
working.
2. Assemble the parts for the top hinges as shown in Top
Hinge graphic. Do not tighten the screws completely.
External Dispenser Models Only:
■ Reconnect the wiring plug on top of the left-hand
side refrigerator door.
■ Reconnect the water line by pulling back the locking
collar ring while rmly pushing the water line into the
connector. Check for leaks.
3. Align the door so that the bottom of the refrigerator door
aligns evenly with the top of the freezer drawer. Tighten all
screws.
4. Replace the top hinge covers.
Remove and Replace Freezer Drawer Front
IMPORTANT: Two people may be required to remove and replace
the freezer drawer. Graphics are included later in this section.
Remove Drawer Front
1. Open the freezer drawer to full extension.
2. Loosen the four screws attaching the drawer glides to
the drawer front. See Drawer Front Removal graphic.
NOTE: Loosen screws three to four turns. Keep the screws in
the drawer front.
3. Lift drawer front upward and off the screws. See Drawer Front
Removal graphic.
4. The refrigerator leveling/roller assembly protrudes from each
side of the cabinet base. Remove the three screws attaching
each assembly, and remove the assemblies. See Refrigerator
Leveling/Roller Assembly graphic.
Replace Drawer Front
1. Align the leveling/roller assembly with the holes on each
side of the refrigerator cabinet. Using the screws removed,
reinstall the assemblies to the cabinet base. Tighten the
screws completely.
2. Slide the drawer glides out of the freezer compartment. Insert
the screws in the top of the drawer front into the slots in the
drawer brackets. See Drawer Front Replacement graphic.
3. Pull the drawer brackets toward you to position the two
screws in the bottom of the drawer front into the brackets.
Completely tighten the four screws. See Drawer Front
Replacement graphic.
4. Replace the base grille.
■ Pull open the freezer drawer.
■ Align the three clips on the back of the base grille
with the three tabs at the base of the refrigerator.
■ Push the base grille in toward the refrigerator until
it is rmly in place.
Final Steps
1. Plug into a grounded 3 prong outlet.
2. Return all removable parts to doors and drawer and food to
refrigerator and freezer.
WARNING
Excessive Weight Hazard
Use two or more people to lift the refrigerator door.
Failure to do so can result in back or other injury.
A
B
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING

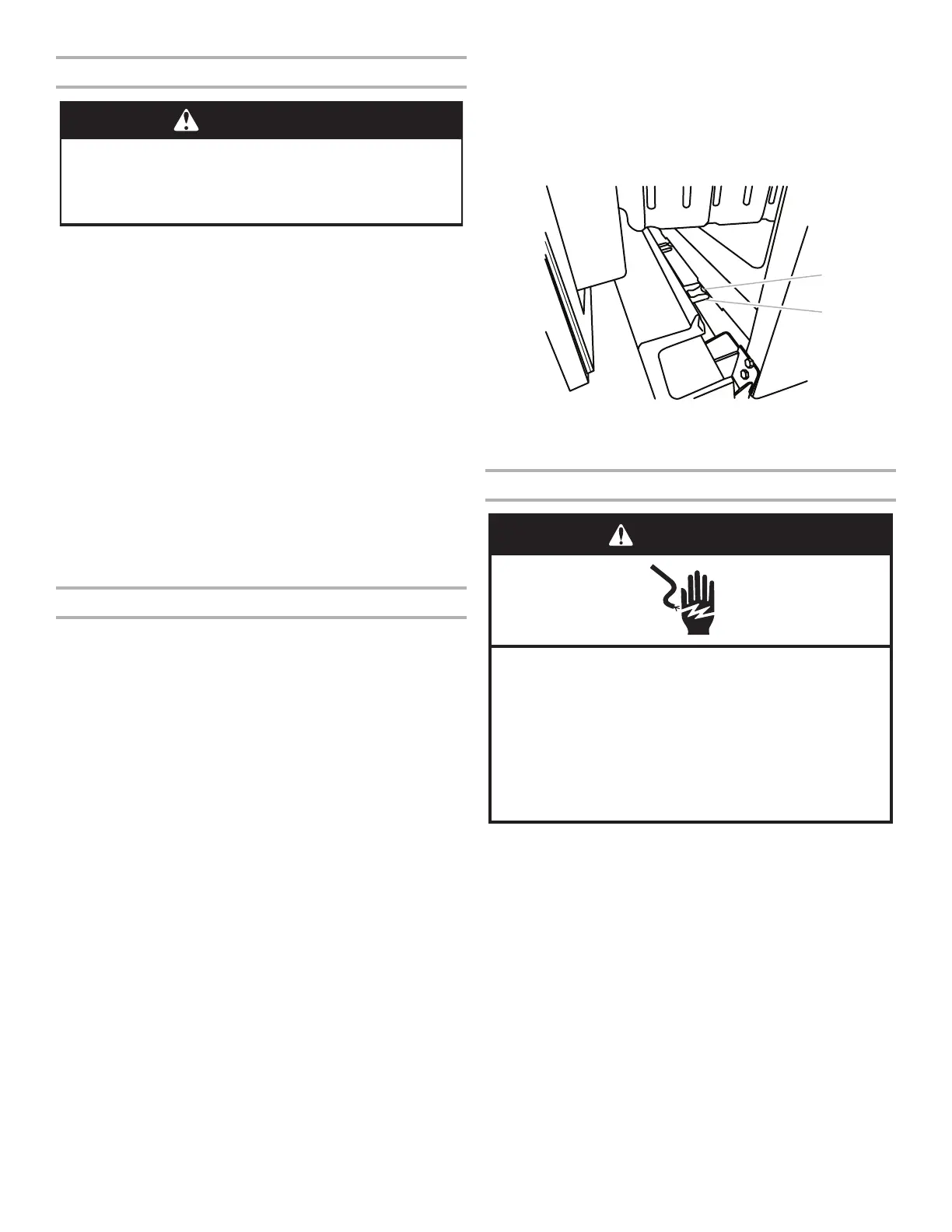

A. Tab
B. Clip
