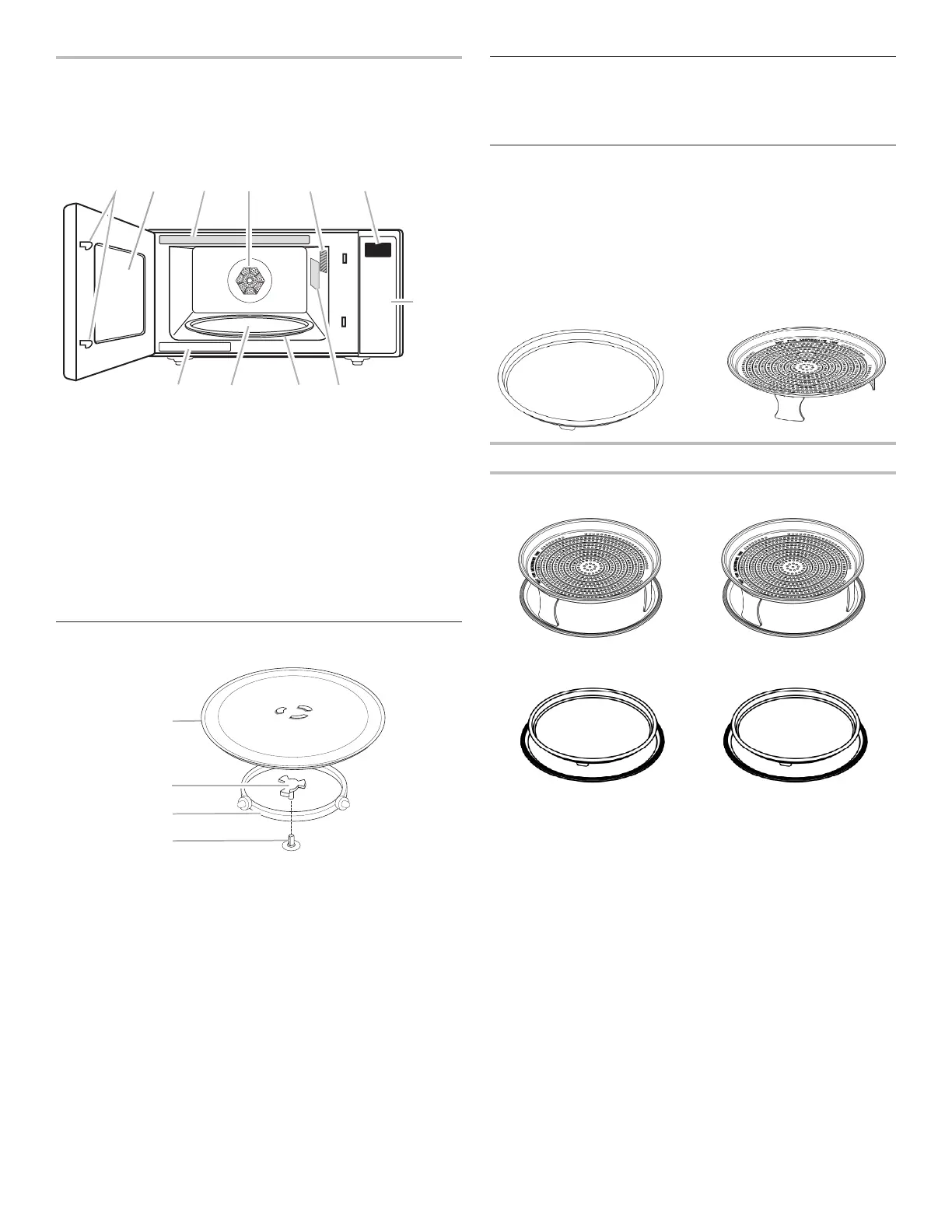

PARTS AND FEATURES
This manual may cover several different models. The model you
have purchased may have some or all of the features shown
here. The appearance of your particular model may differ slightly
from the illustrations in this manual.
*NOTE: To avoid damage to the microwave oven,do not
removemicrowave inlet cover. See the “Parts and Features”
section.
Turntable
A.Turntable
B.Hub
C.Support
D.Shaft
The turntable can rotate in either direction to help cook food
more evenly. For best cooking results, do not operate the
microwave oven without having the turntable in place. See the
“Assistance or Service” section to reorder any of the parts.
To Install:
1. Place the support on the microwave oven cavity bottom.
2. Place the turntable on the support.
Fit the raised, curved wedges in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should t inside the turntable bottom ridge.
A. Door lock system
B. Window
C. Cooking guide label
D. Convection element and fan
E. Microwave oven light
F. Display
G. Control panel
H. Microwave inlet cover*
I. Removable turntable support
J. Glass turntable
K. Model and serial number plate
Parts and Features
Not Shown: Grill element (on
cavity ceiling)
DA EC F B
H
J I
G
K
A
B
C
D
Grill Element
The microwave oven uses a cal rod thermal element for grilling.
The microwave oven cavity and door will become hot. The use of
oven mitts is recommended.
Convection Element and Fan
The microwave oven’s convection system is composed of
a convection element which heats in conjunction with the
convection fan for true convection cooking. The convection
system is embedded in the wall of the microwave oven cavity,
behind the screen. See the “Parts and Features” section. The
microwave oven cavity and door will become hot. The use of
oven mitts is recommended.
Grill and Convection Accessories
Accessory Configurations
Grilling Air Frying
Baking Roasting
Baking Tray Baking Tray
