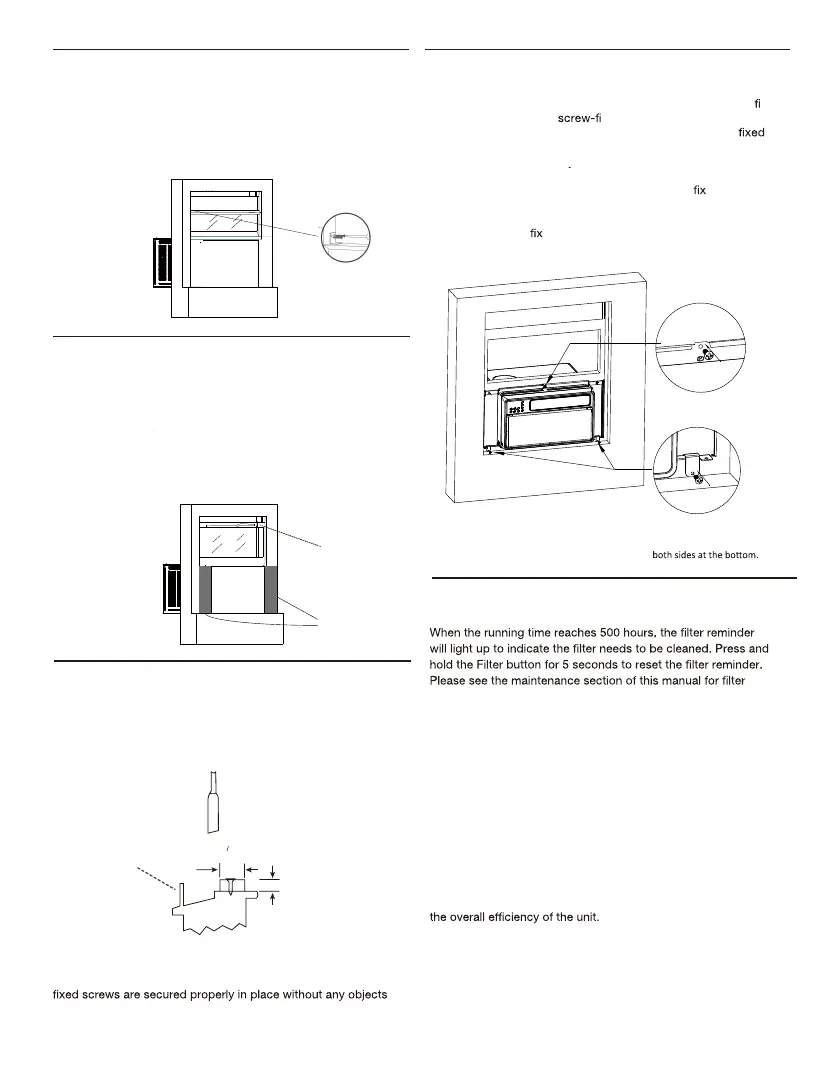

Step 10: Installing the Security Bracket
(Recommended)
Step 11: Filling the Gap Between Sashes
Applying the Panel Seals
If AC is Blocked by Storm Window Frame
For security purposes, it is recommended to attach the security
bracket to the top of the window using two 1/2" screws to
prevent opening the window from outside. However, the security
bracket can be removed to allow you to open the window when
desired.
Trim the non-adhesive foam seal to the appropriate length and
insert between the window sashes.
fastened tightly from the AC unit curtain to the window frame.
Measure the length extended by the side panels, trim the panel
seals to the appropriate length, peel off the backings and apply
on the panels on both sides.
Add wood as shown. Remove the storm window frame/obstruction
before installing the window air conditioner. if the Storm Window
Frame must remain, be sure the drain holes or slots are not caulked
or painted shut. Accumulated rainwater or condensation must be
allowed to drain out.
Non-Adhesive
Foam Seal
Panel Seals *2
SASH
INSIDE
1-1
2" min
(38mm)
Storm window
frame or other
obstruction
Board thickness as
required, for proper
pitch to rear, along
entire sill.
Fasten with nails or
screws.
OUTSIDE
9
If install specal window fame
IMPORTANT: When opening the window, be sure that the
affecting their attachment to the side brackets and associated
window frame to prevent the unit from becoming unstable and
falling.
When open the window, be sure that all the screws are
For some special window frame, as too thin or too thick, you
may need to use the back-up lock frame to do the additional
xed.
If the AC unit can not be
xed well by the steel frame holes,
you must use the back-up lock frame to do the additional
,
as the aluminum alloy window.
1. Install the screw into the top channel of the AC unit, and screw
into the window frame.
2. Select two suitable back-up using lock frames,
them at the
bottom of steel frame near the sides with screws.
3. If needed, you can use the other two back-up using lock frames
to do the additional
at the top area
Srew the top channel
into the window frame
with 3/4" screw.
Screw the back-up lock
frame into the window
frame with 3/4 screws,
.
Other Features
Filter Reminder
cleaning instructions.
Display Auto Off
Display will dim after 30 seconds (or after 15 seconds in sleep mode)
Wake up the display by pressing any button.
Memory
If the air conditioner is turned off but stays connected to the power,
it will resume the previous settings (except the timer setting) when
it is turned on again.
Drain Water
This unit was designed to collect moisture from condensation in a
collection pan in the base of the unit. The collected water is
distributed by the rear fan on to the condenser coil. This aids in
It is normal to hear the water sloshing around when the fan is spinning.
