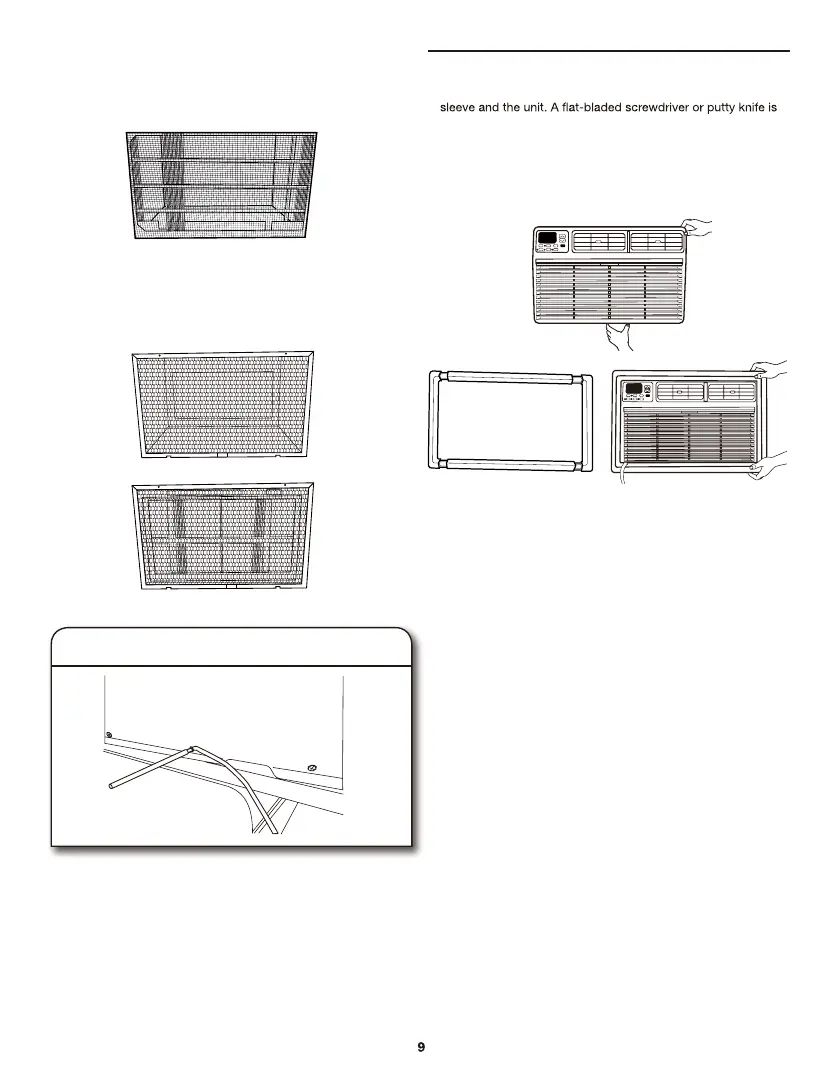

Trim Kit Installation Instructions
1. Install the 1" x 1½" x 84" long stuffer seal between the wall
needed.
2. Assemble the trim frame by inserting the top and bottom
pieces into side pieces and snapping into place.
3. Pull the power cord through the trim frame and slide the trim
over the unit until ush with the wall.
Energy saving suggestion: In order to reach the maximum
energy saving and comfortability, it is necessary to use an
appropriately sized cover to provide additional insulation and air
sealing when the unit is not in use during the off-using-season.
HIGH
COOL
DRY
FAN
AUTO
NEXT
MED
LOW
AUTO
SPEED
FAN
SPEED
SPLEEPFILTER
TIMER
ECO MODE POWER
1. Attach the one end of the ground wire inside the sleeve with
the screw according to preparation instruction.
2. Before sliding unit all the way back remove the second screw
(2/5" screw) from the left side of the unit.
3. Remove the plastic washer from the screw.
4. Attach the other end of the ground wire to the unit with screw
as shown above. Make sure that the toothed washer is against
the cabinet.
5. Slide unit completely to the rear.
6. Install Ground Wire
Insert the unit with the seals attached into the sleeve
pushing it all the way to the rear, making sure the seals are
against the rear grille. The seals are necessary to reduce
recirculation of hot air into the intakes which would reduce
system performance.
An option is to purchase 3/4" diamond cut aluminum grille and
cut it to t inside the sleeve. Secure it with screws. Attach the
dual intake grill directly to the back of the unit. Slide the entire
unit into the sleeve.
HIGH
COOL
DRY
FAN
AUTO
NEXT
MED
LOW
AUTO
SPEED
FAN
SPEED
SPLEEP
FILTER
TIMER
ECO MODE POWER
