15

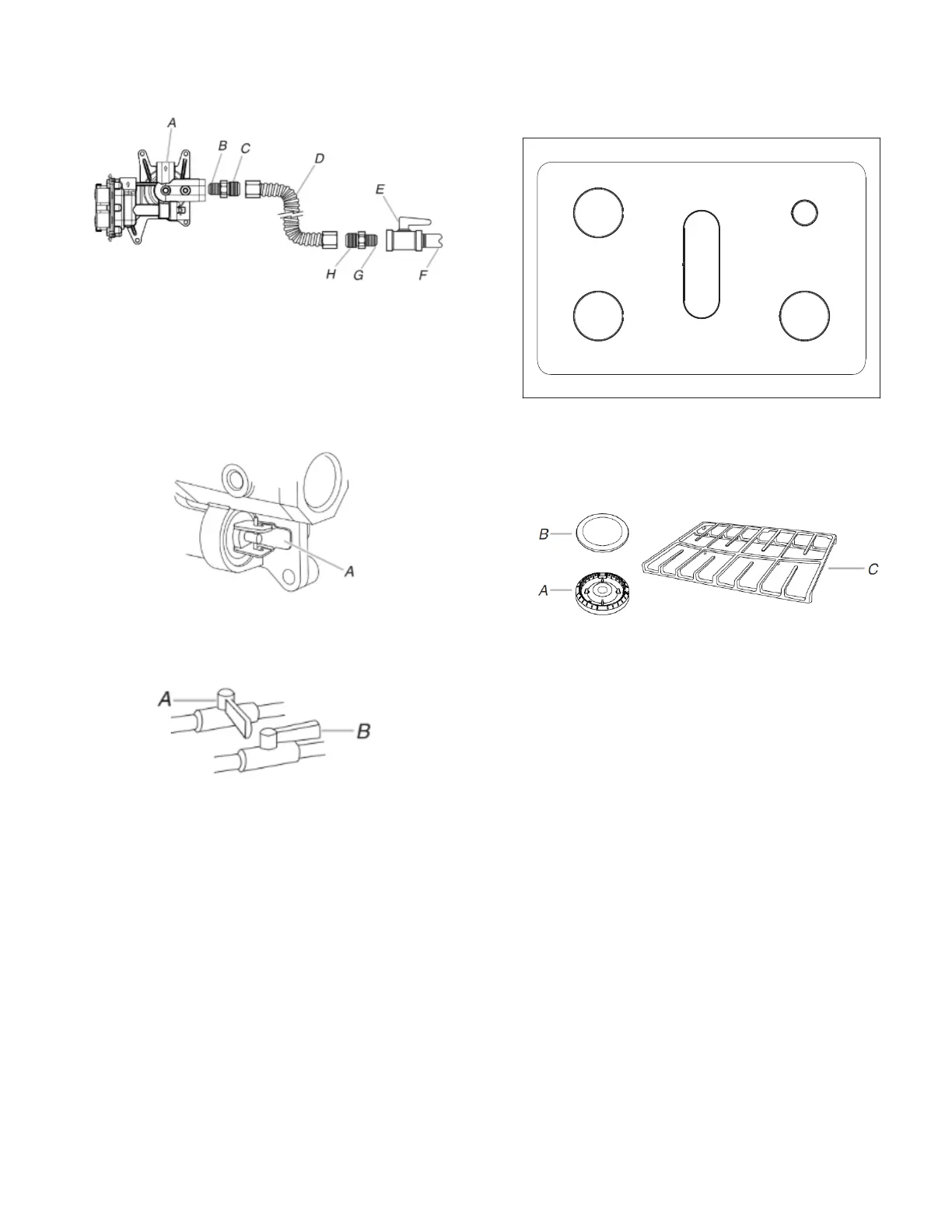

3. Use a 15/16" (23.8 mm) combination wrench and channel lock
pliers to attach the flexible connector to the adapters. Check
that connector is not kinked.
A. Gas pressure regulator
B.
C.
Use pipe-joint compound.
Adapter (must have 1/3"
[12.7 mm] male pipe thread)
E. Manual gas shutoff valve
F. 1/2" (12.7 mm) or 3/4"
(19.1 mm) gas pipe
G. Use pipe-joint compound.
H. Adapter
D. Flexible connector
Complete Connection
1. Check that the gas pressure regulator shutoff valve is in the
“on” position.
A. Gas pressure regulator shut-off valve shown in the
“on” position
2. Open the manual shutoff valve in the gas supply line. The
valve is open when the handle is parallel to the gas pipe.
A. Closed valve
B. Open valve
3. Test all connections by brushing on an approved noncorrosive
leak-detection solution. If bubbles appear, a leak is indicated.
Correct any leak found.
4. Remove cooktop burner caps and bases from package
containing parts. Place the burner bases as indicated by the
following illustration for your model:
For MFGS8030R and MFGS7030S* Models:
C
B
E
A D
A. Large (Rapid)
B. Large (Rapid)
C. Oval
D. Small (Auxiliary)
E. Large (Ultra Rapid)
5. Burner caps should be level when properly positioned. If
burner caps are not properly positioned, surface burners will
not light. Place burner grates over burners and caps.
A. Burner base
B. Burner cap
C. Burner grate (varies depending upon model)
