INSTALLATION INSTRUCTIONS
REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools Needed
� Tape measure
� Flat-blade screwdriver
� Phillips screwdriver
� 1/8" flat-blade screwdriver
� Level
� Hand or electric drill
� Hammer
� Wrench or pliers
� Pipe wrench
� 15/16" combination wrench
� 1/4" drive ratchet
� 3/8" nut driver
� 1/8" drill bit (for wood floors)
� Marker or pencil
� Pipe-joint compound
resistant to Propane gas
� Noncorrosive leak-detection
solution
� 3/16" carbide-tipped
masonry drill bit
(for concrete/ceramic floors)
(For Slide-in/Front Control
Ranges)
For Propane/Natural Gas
Conversions
� 3/8" combination wrench
� 1/2" combination wrench
� 5/8" combination wrench
� 9/32" nut driver
� Quadrex
®
✝
or Phillips
screwdriver
� Masking tape
� 3/8" nut driver
(For Slide-in/Front Control
Ranges)
Parts Supplied
Check that all parts are included.

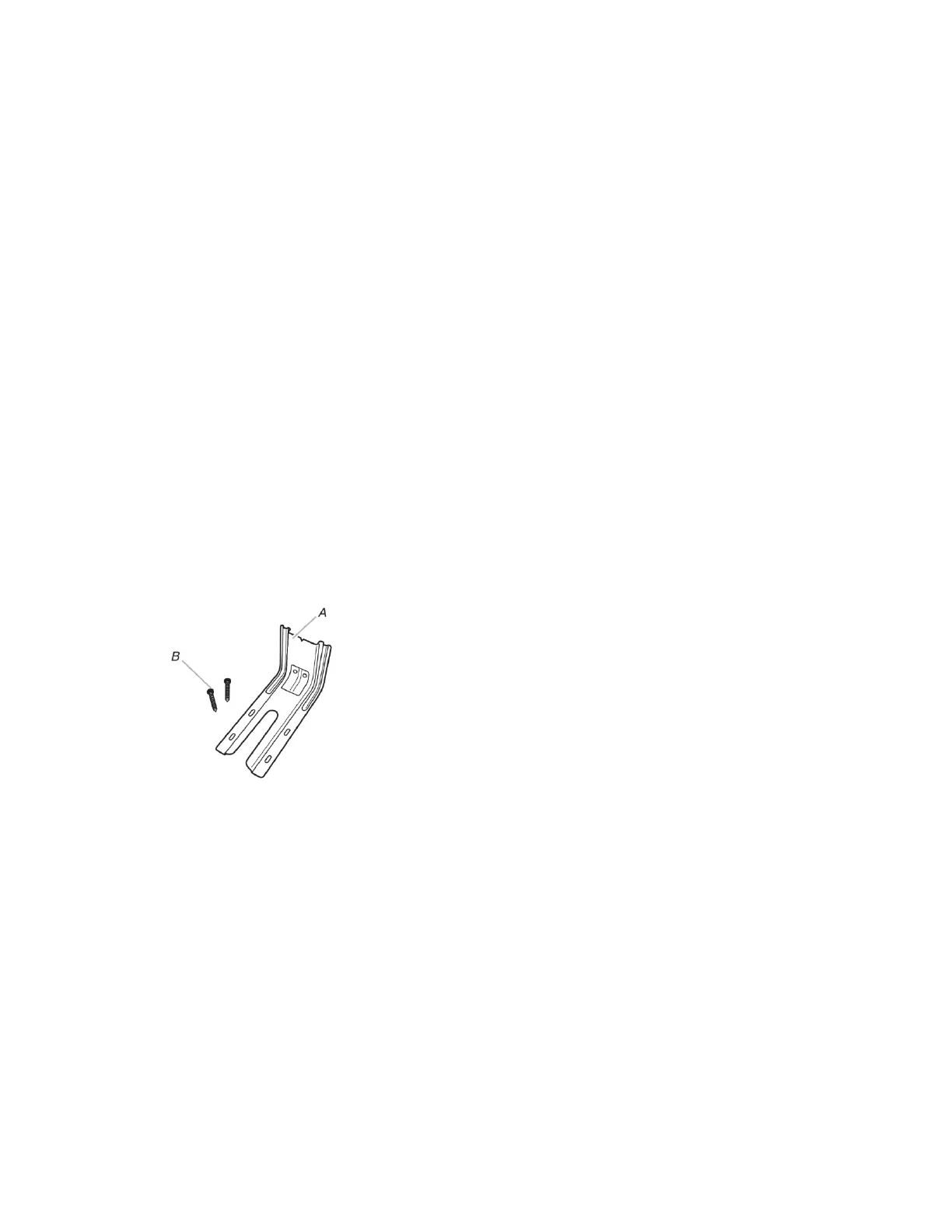

A. Anti-tip bracket
B. #12 x 1
5
/
8
" (4.1 cm) screws (2)
Anti-tip bracket must be securely mounted to floor or wall.
Thickness of flooring may require longer screws to anchor bracket
to floor.
Parts needed
Check local codes and consult gas supplier. Check existing gas
supply and electrical supply. See “Electrical Requirements” and
“Gas Supply Requirements” sections.
NOTE: Be sure to purchase only WHIRLPOOL factory-certified
parts and accessories for your appliance. Your installation may
require additional parts. To order, refer to the contact information
referenced in your Quick Start Guide.
Location Requirements
IMPORTANT: Observe all governing codes and ordinances. Do
not obstruct flow of combustion and ventilation air.
� It is the installer’s responsibility to comply with installation
clearances specified on the model/serial/rating plate. The
model/serial/rating plate is located behind the oven door on the
top right/left-hand side of the oven frame.
� The range should be located for convenient use in the kitchen.
� Recessed installations must provide complete enclosure of the
sides and rear of the range.
� All openings in the wall or floor where range is to be installed
must be sealed.
� Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
� The anti-tip bracket must be installed. To install the anti-tip
bracket shipped with the range, see “Install Anti-Tip Bracket”
section.
� Grounded electrical supply is required. See
“Electrical Requirements” section.
� Proper gas supply connection must be available. See
“Gas Supply Requirements” section.
� Contact a qualified floor covering installer to check that the floor
covering can withstand at least 200°F (93°C).
� Use an insulated pad or 1/4" (6.4 mm) plywood under range if
installing range over carpeting.
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures of 194°F (90°C).
Mobile Home - Additional Installation
Requirements
The installation of this range must conform to the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD Part 280). When such standard is not
applicable, use the Standard for Manufactured Home Installations,
ANSI A225.1/NFPA 501A or with local codes. In Canada, the
installation of this range must conform with the current standards
CAN/CSA-Z240.1 - latest edition, or with local codes.
Mobile Home Installations Require:
� When this range is installed in a mobile home, it must be
secured according to the instructions in this document.
� Any method of securing the range is adequate as long as it
conforms to the standards listed above.
✝Quadrex
®
is a registered trademark of NLW Holdings, Inc.
