9

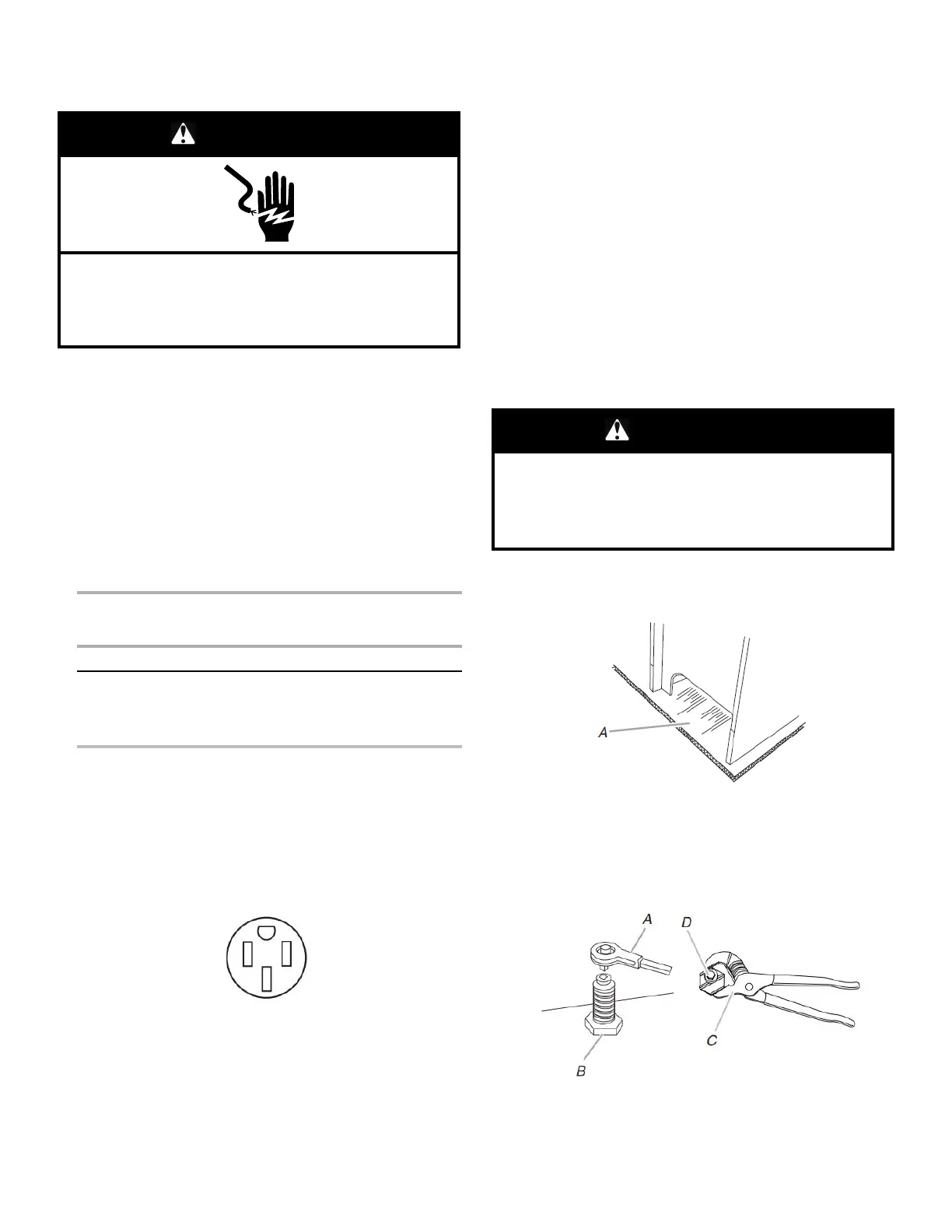

Electrical Requirements - Canada
Only
WARNING
Electrical Shock Hazard
Electrically ground appliance.
Failure to do so could result in death, fire, or electrical
shock.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path is adequate and wire gauge are in accordance
with local codes.
Be sure that the electrical connection and wire size are adequate
and in conformance with CSA Standard C22.1, Canadian
Electrical Code, Part 1 - latest edition, and all local codes and
ordinances.
A copy of the above code standards can be obtained from:
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
� Check with a qualified electrical installer if you are not sure the
range is properly grounded.
Range Rating* Specified Rating of Power
Supply Cord Kit and Circuit
Protection
120/240 V 120/208 V Amps
8.8-16.5 kW
7.8-12.5 kW
40 or 50**
16.6-22.5 kW
12.6-18.5 kW
50**
*The NEC calculated load is less than the total connected load
listed on the model/serial/rating plate.
**For 50 A rated cord kits, use kits that specify use with a
nominal 1
3
/
8
" (34.9 mm) diameter connection opening.
� A time-delay fuse or circuit breaker is recommended.
� This range is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-50R
wall receptacle. Be sure the wall receptacle is within reach of
range’s final location.
� Do not use an extension cord.
OVEN LIGHT
The oven light is a 40 W halogen bulb. Before replacing, make
sure the oven and cooktop are cool and the control knobs are in
the Off position.
To Replace:
1. Disconnect power.
2. Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
3. Remove bulb from socket.
4. Replace bulb, using tissue or wearing cotton gloves to handle
bulb. To avoid damage to or decreasing the life of the new
bulb, do not touch bulb with bare fingers.
5. Replace bulb cover by turning clockwise.
6. Reconnect power.
IMPORTANT: Do not use lamps rated higher than 40 W.
INSTALLATION
Unpack Range
WARNING
Excessive Weight Hazard
Use two or more people to move and install or uninstall
appliance.
Failure to do so can result in back or other injury.
1. Remove shipping materials, tape and film from range.
2. Remove oven racks and parts package from inside oven.
3. Do not remove the shipping base at this time.
A. Shipping base
4. On Ranges Equipped with a Storage Drawer:
Remove the storage drawer. See the “Storage Drawer”
section. Use a 1/4" (6.4 mm) drive ratchet to lower the rear
leveling legs one-half turn. Use a wrench or pliers to lower
front leveling legs one half turn.
A. 1/4" (6.4 mm)
drive ratchet
B. Rear leveling leg
C. Wrench or pliers
D. Front leveling leg
