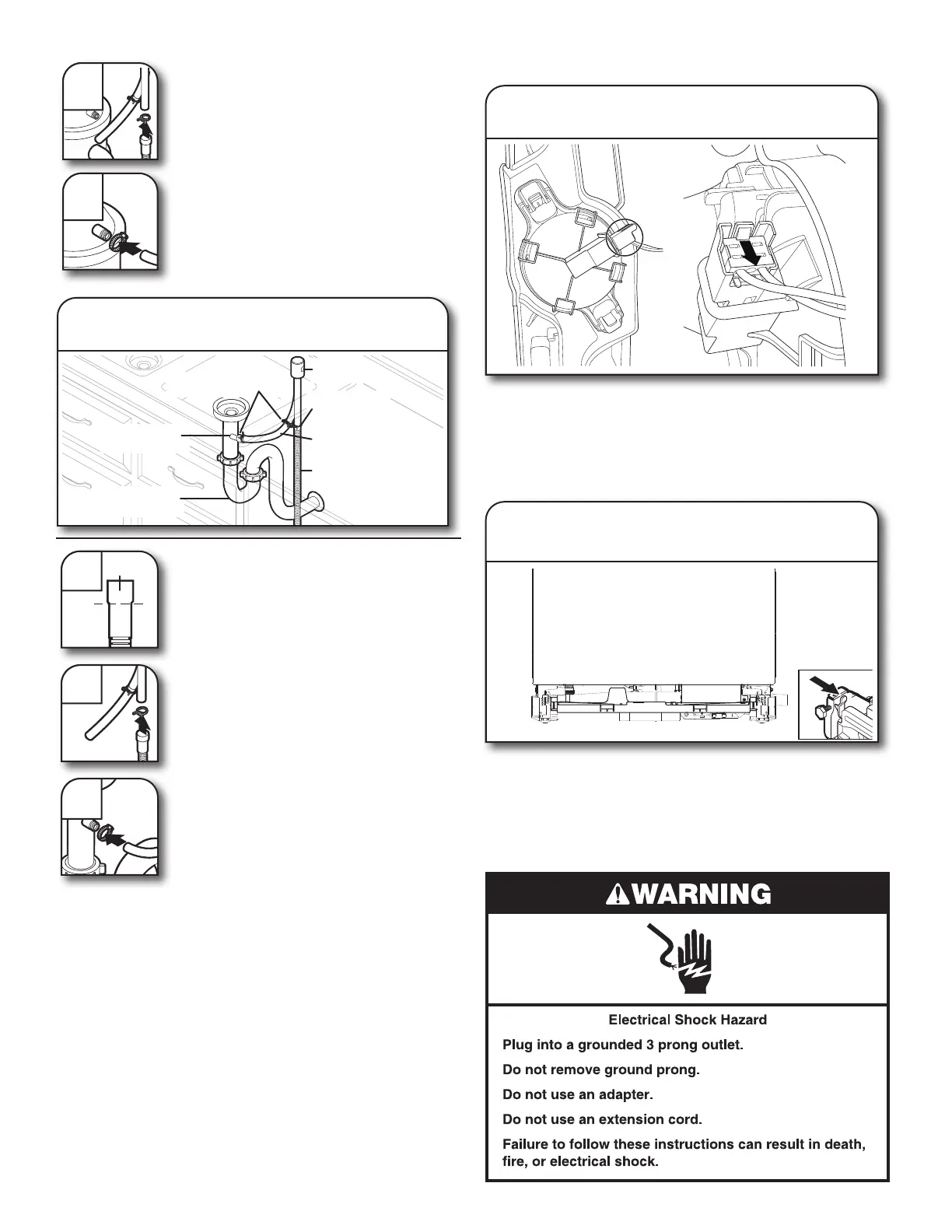

26
4
4. Attach drain hose to air gap with large
drain hose clamp (provided). Use pliers
to squeeze clamp open and move into
position.
5
5. Use a rubber hose (not provided) with
screw-type clamps to connect from air
gap to disposer inlet.
1. Connect rubber end of drain hose
toairgap.
2. Attach drain hose to air gap with large
drain hose clamp (provided). Use pliers
to squeeze clamp open and move into
position.
3. Use a rubber hose (not provided) with
screw-type clamps (not provided) to
connect from waste tee to air gap.
Option D: No waste disposer –
withairgap
Large drain
hose clamp
Drain hose
Screw-type clamps
Air gap
Rubber hose
connector
Drain trap
Waste tee
1
Rubber
end
2
3
COMPLETE INSTALLATION
Check that the power supply wire or cord does not touch
dishwasher motor or the lower part of the dishwasher tub.
Reconnect oat switch by aligning connector removed in Step 10
with the connector housing and pushing in until the locking tab is
visible over the back of the connector.
NOTE: Before replacing the dip tray, ensure that there is no water
present in the tray.
To replace drip tray, align with snaps in side members and push
in toward unit. It is important that the black hoses are above the
drip tray on both ends once it is pushed all of the way in.
46. Reconnect oat switch
47. Replace drip tray
