16

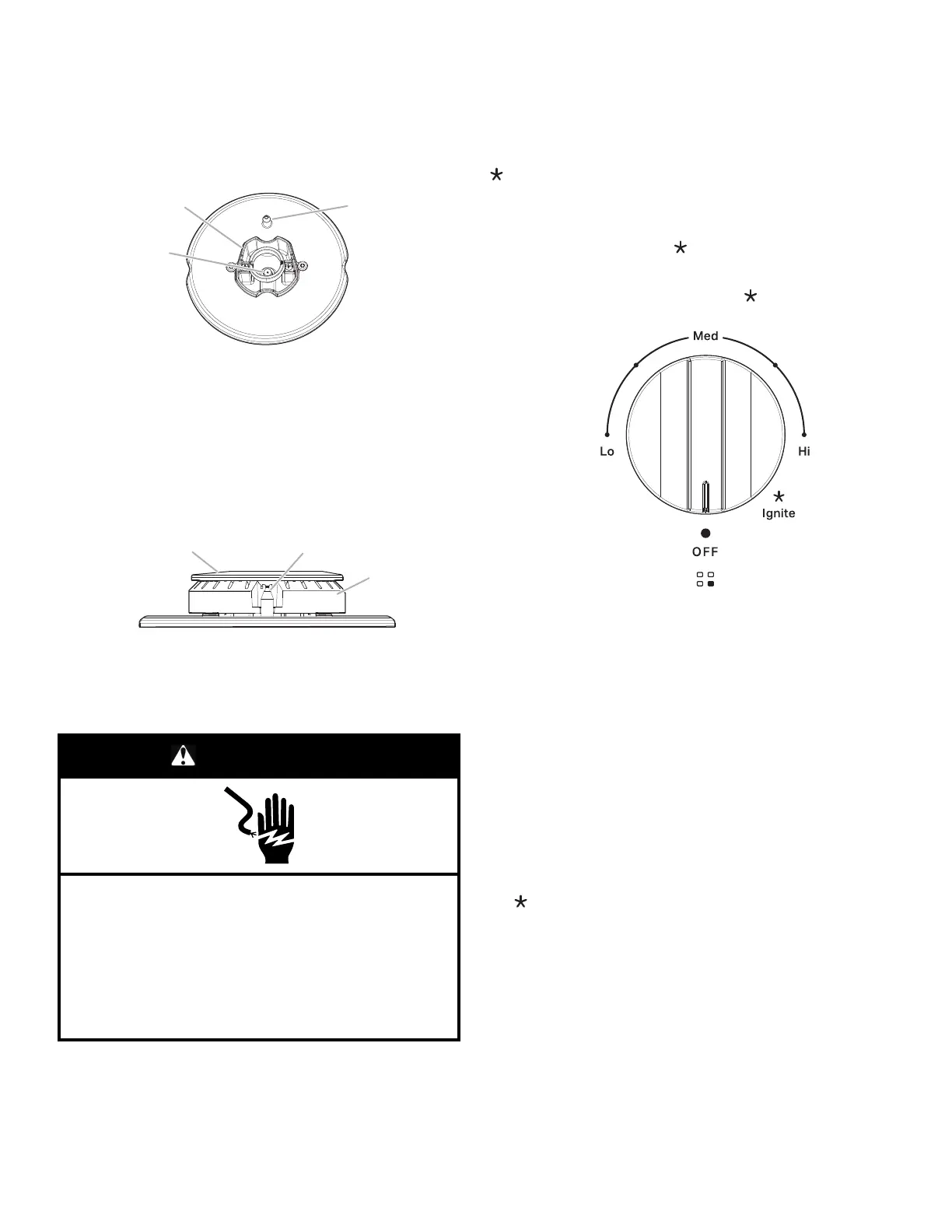

7. To Convert Standard Burner:
� Use 7.0 mm wrench to loosen and remove the
orifice spud (A).
� Set gas orifice spud aside.
� Replace with correct Natural gas orifice spud. See Natural
gas orifice spud chart.
A
B C
A. Orifice spud
B. Orifice spud holder
C. Spark electrode
8. Replace sheet of insulation.
9. Replace burner bases and burner caps.
The igniter electrode is ceramic and could break during
conversion. Be sure that the electrode comes through the hole
in the burner smoothly while you are replacing the burner
base.
A
B
C
A. Burner cap
B. Electrode
C. Burner base
10. Open shutoff valve in the gas supply line. The valve is open
when the handle is parallel to the gas pipe.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
11. Plug in cooktop or reconnect power.
REMEMBER: Once you have completed converting all of the
cooktop burners, test the cooktop for leaks by brushing on an
approved noncorrosive leak-detection solution. If bubbles appear,
a leak is indicated. Correct any leaks found.
12. To adjust single and dual valves, see the “Complete
Installation” section.
Lighting the Electronic Igniters
The cooktop burners use electronic igniters in place of standing
pilots. When the cooktop control knob is pushed in and turned to
Ignite, the system creates a spark to light the burner. This
sparking continues until the control knob is turned to the desired
setting.
To Check Operation of the Cooktop Burners:
1. Push in and turn knobs to
Ignite. The cooktop burner flame
should light within 4 seconds. The first time a burner is lit, it
may take longer than 4 seconds to light because of air in the
gas line. Do not leave the knob in the
Ignite position after
burner lights.
2. If burners do not light properly, turn the control knob to OFF.
Make sure the burner cap is in the proper position.
3. Check that the power supply cord is plugged in and circuit
breaker has been tripped or household fuse has not blown.
4. Check that the shut-off valve is in the on position.
5. Check burner operation again.
If one or all of the burners do not light at this point, refer to your
Quick Start Guide for contact information.
Low Flame Height Adjustment
Each burner flame has been factory set to the lowest position
available to provide reliable and constant reignition of the burner.
However, each burner can be adjusted.
To Adjust:
1. After lighting, push in and turn each control knob to the Lo
position.
2. If the burner does not stay lit on Lo, turn the control knob to
Ignite until the burner lights.
3. Quickly turn the control knob down to Lo.
If the burner goes out after adjusting, readjust the valve.
