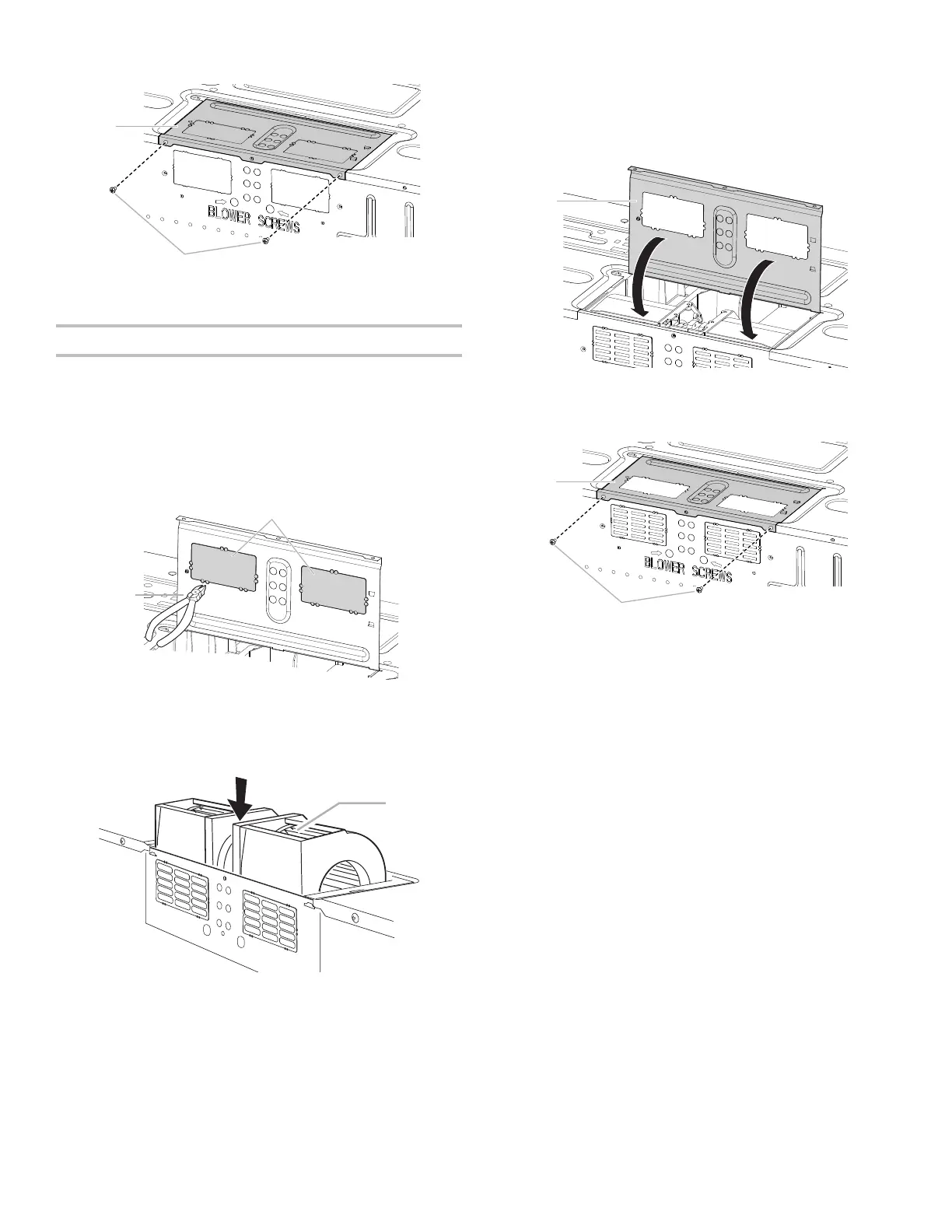

13. Secure damper plate with 2 screws removed in Step 1.
Roof Venting Installation Only
1. Repeat Step 1 from “Wall Venting Installation Only.”
2. Repeat Step 2 from “Wall Venting Installation Only.”
3. Repeat Step 3 from “Wall Venting Installation Only.”
4. Repeat Step 4 from “Wall Venting Installation Only.”
5. Repeat Step 5 from “Wall Venting Installation Only.”
6. Using diagonal wire cutting pliers, gently snip out the
rectangular vent covers on the damper plate at the
perforations.
7. Lower blower motor back into microwave oven. Exhaust
ports face the top of microwave oven.
IMPORTANT: If blower motor is not positioned with at
side facing the back of the microwave oven (as shown),
performance will be poor.
8. Reconnect the blower motor wire into the connector.
9. Reattach the 2 blower screws into the recessed holes in the
back of the microwave.
10. Check to make sure the 2 screws are secured properly in the
blower motor screw holes, so that the motor cannot move.
11. Return the damper plate to its original horizontal position.
12. Secure damper plate with 2 screws removed in Step 1.
A
B
A. Damper plate
B. Screws
B
A
A. Rectangular vent covers
B. Diagonal wire cutting pliers
A
A. Exhaust port
A. Damper plate
A
A. Damper plate
B. Screws
A
B
