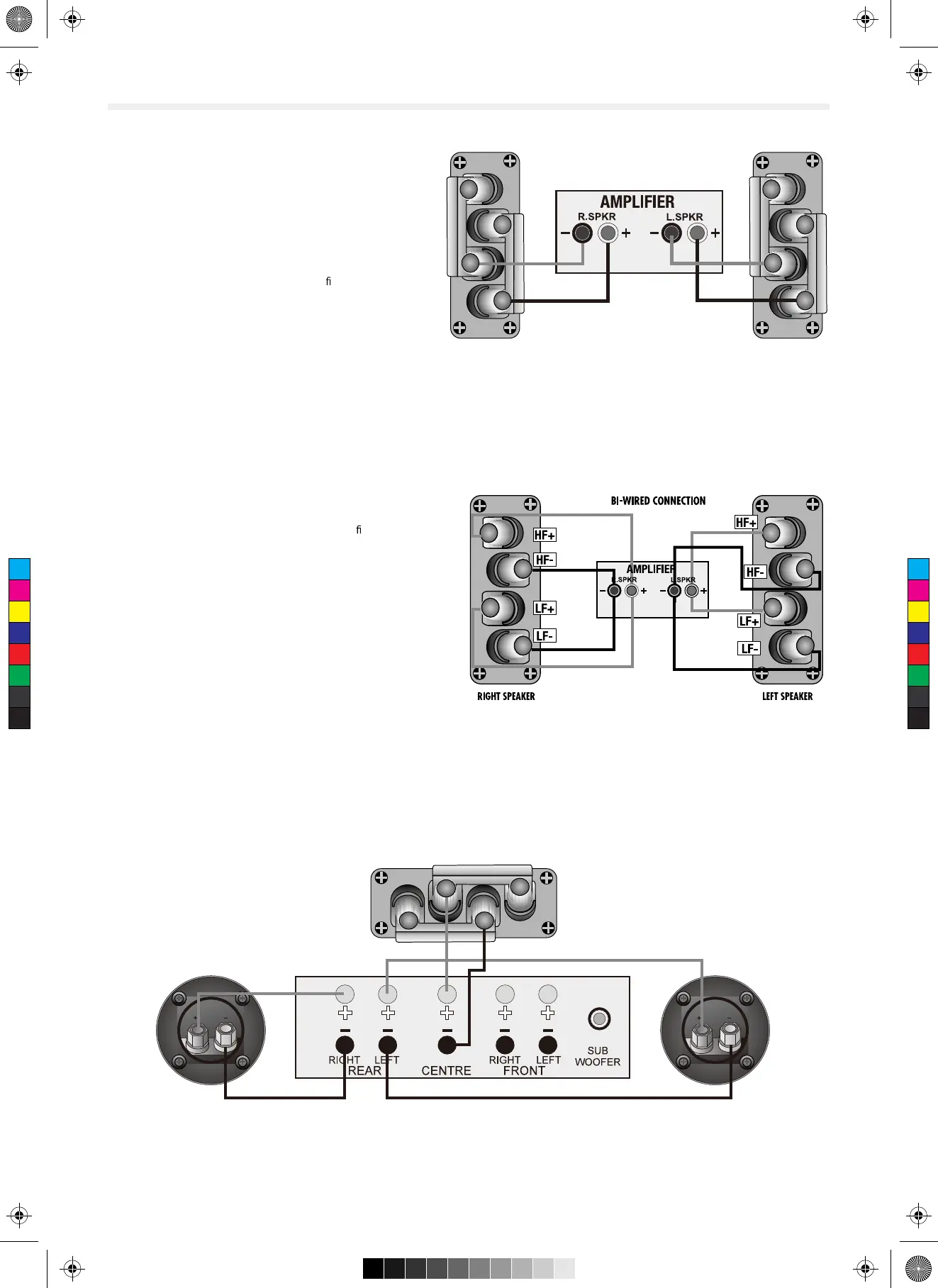

Standard Connection
Choose a suitable length of twin core speaker cable for each
channel, and prepare the ends. Unscrew each terminal a few
turns.
Connect the red, positive (+) terminal of the Left loudspeaker to
the corresponding red, positive (+) ampli
er terminal. Connect
the black, negative (-) terminals similarly. Tighten the terminals
securely. Repeat this procedure for the Right channel.
Connecting the Front Loudspeakers
Bi-Wiring
Unscrew each terminal a few turns and remove the metal
straps. Connect the cables between the ampli
er and the
loudspeakers as indicated above and re-tighten all the
terminals securely.
Connecting Centre Loudspeaker
The Centre channel speaker may be connected as shown, or bi-wired.
