The Diamond 12 3D Surround is designed to offer elevation / height channel additions to your home theatre system in conjunction with
AV receivers and processors which offer this performance capability.
The Diamond 12 3D is designed for placement on top of any flat-top loudspeaker but optimised for the DIAMOND 12.3 and DIAMOND 12.4.
It can also be wall mounted.
3D and Heigh Channel Speaker Placement
R L
HEIGHT
AMPLIFIER
~ 600mm(2ft)
Diamond 12.C
SW Subwoofer
Diamond 12.3 + 3D Surround Diamond 12.3 + 3D Surround
Diamond 12.3 + 3D Surround
Diamond 12.4 + 3D Surround
Diamond 12.1 + 3D Surround
Diamond 12.2 + 3D Surround
Diamond 12.3 + 3D Surround
Diamond 12.4 + 3D Surround
LF
LF
Diamond 12.1 + 3D Surround
LR
LR
Diamond 12.1 + 3D Surround
RR
RR
RF
RF
Diamond 12.C
SW Subwoofer
Diamond 12.3 + 3D Surround Diamond 12.3 + 3D Surround
Diamond 12.3 + 3D Surround
Diamond 12.4 + 3D Surround
Diamond 12.0
Diamond 12.1
Diamond 12.2
LF
LF
Diamond 12.0
LR
LR
Diamond 12.0
RR
RR
RF
RF

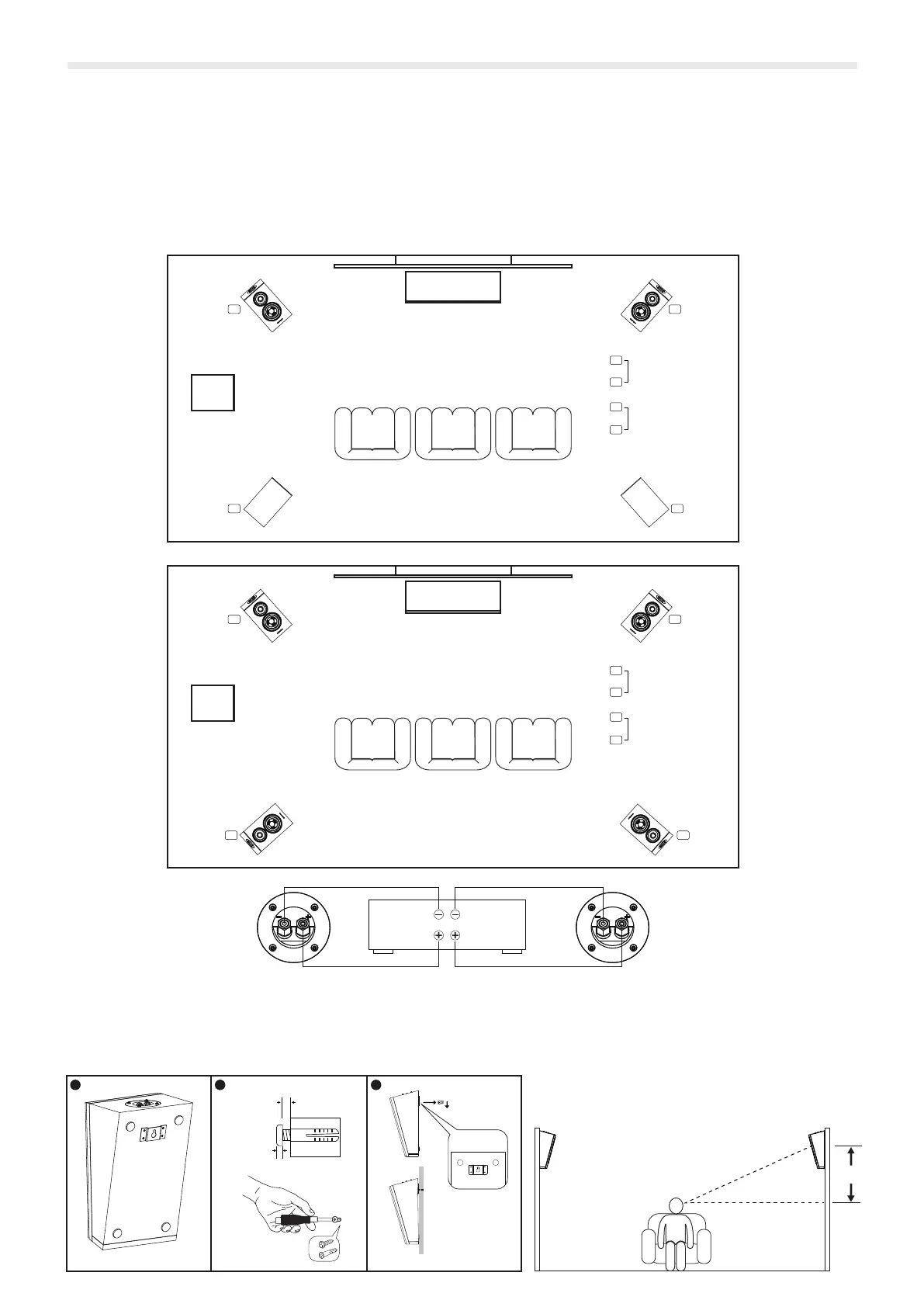

The suggested positioning can be seen below:
Wall mounting option:
Minimum 1.5 mm
Maximum 3 mm
1x
1 2
3
Rubber feet (for mounting on flat surfaces or on top of floorstanding speakers such as Diamond 12.3 or Diamond 12.4) and a wall bracket,
with mounting screws (for wall fixing) are included with the Diamond 12 3D.
For wall mounting, the bracket should be securely fixed into position with the included screws. The bracket can be used to hang the
speaker on an appropriate and securely positioned wall fixing.
