11
NOTE: For single door models, the door handle must be
completely removed to provide clearance to the cupboard
door and the resulting handle mounting holes hidden with
a cover. Installer must use a tape or plastic cover that suits the
installation appearance (not supplied).

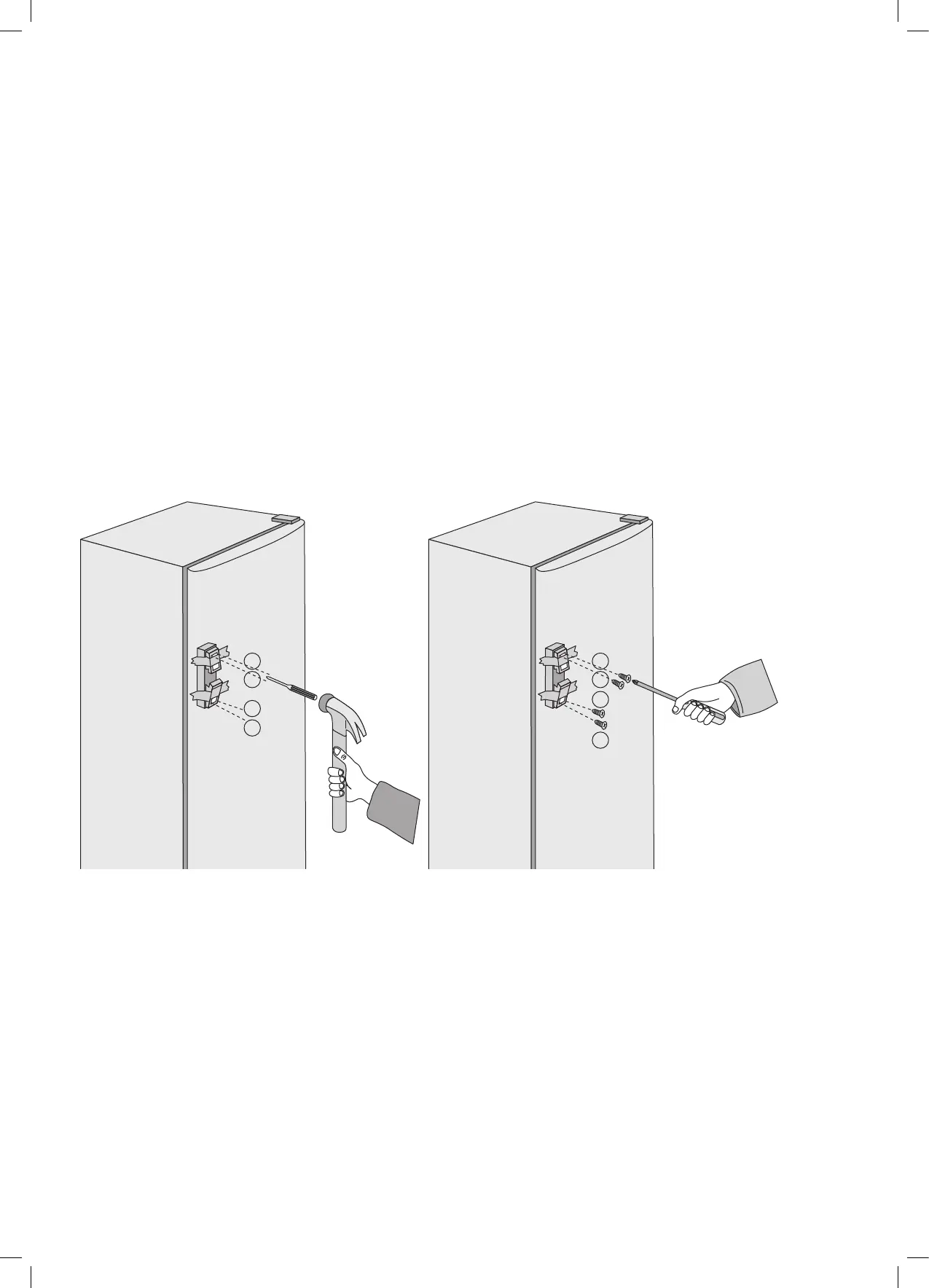

3. While the slide-housing is taped in position, punch a
small hole in the refrigerator door skin corresponding
to the four (4) holes in the housing (Figure 5).
4. The holes should be punched, not drilled, to ensure
the maximum thread can be formed in the metal.
5. Screw four (4) refrigerator screws into the holes
securing the housing in place. The refrigerator screws
are supplied in kit (Figure 6).
If you have a two door refrigerator, repeat this process for
the other door.
1
2
3
4
1
2
3
4
Figure 5 Figure 6
