7. TROUBLE SHOOTING
No. Problem Description
Cause
Remedy
1
Turn the key switch to
ON, coulometer doesn’t
indicate power level.
1. Switch is not working correctly.
2. Terminals and inserters are loose.
1. Check and change switch.
2. Check terminals and inserters.
2
Platform (Fork) does
not lift up when pushing
LIFT button
1. Switch is not working correctly.
2. Fuse is broken.
3. Terminals and inserters are loose.
4. Electric pump is needs oil.
1. Check and change switch.
2. Replace fuse.
3. Check terminals and inserters.
4. Fill oil to recommended
position.
3
Lifting speed is too slow
when pushing LIFT
button.
1. Battery does not have enough power.
2. Relief valve is not in proper position.
1. Recharge the battery.
2. Adjust the relief valve.
4
Fork do not lift to top. 1. Electric pump is low on oil. 1. Fill oil to prescribed position.
5
Electric pump does not
work.
1. Electric pump is broken.
2. Terminals and connector are loose.
3. Battery does not have enough power.
1. Check and change.
2. Check terminals and inserters.
3. Recharge the battery.
6
Fork does not lower 1. Switch is not working correctly. 1. Check and change switch.

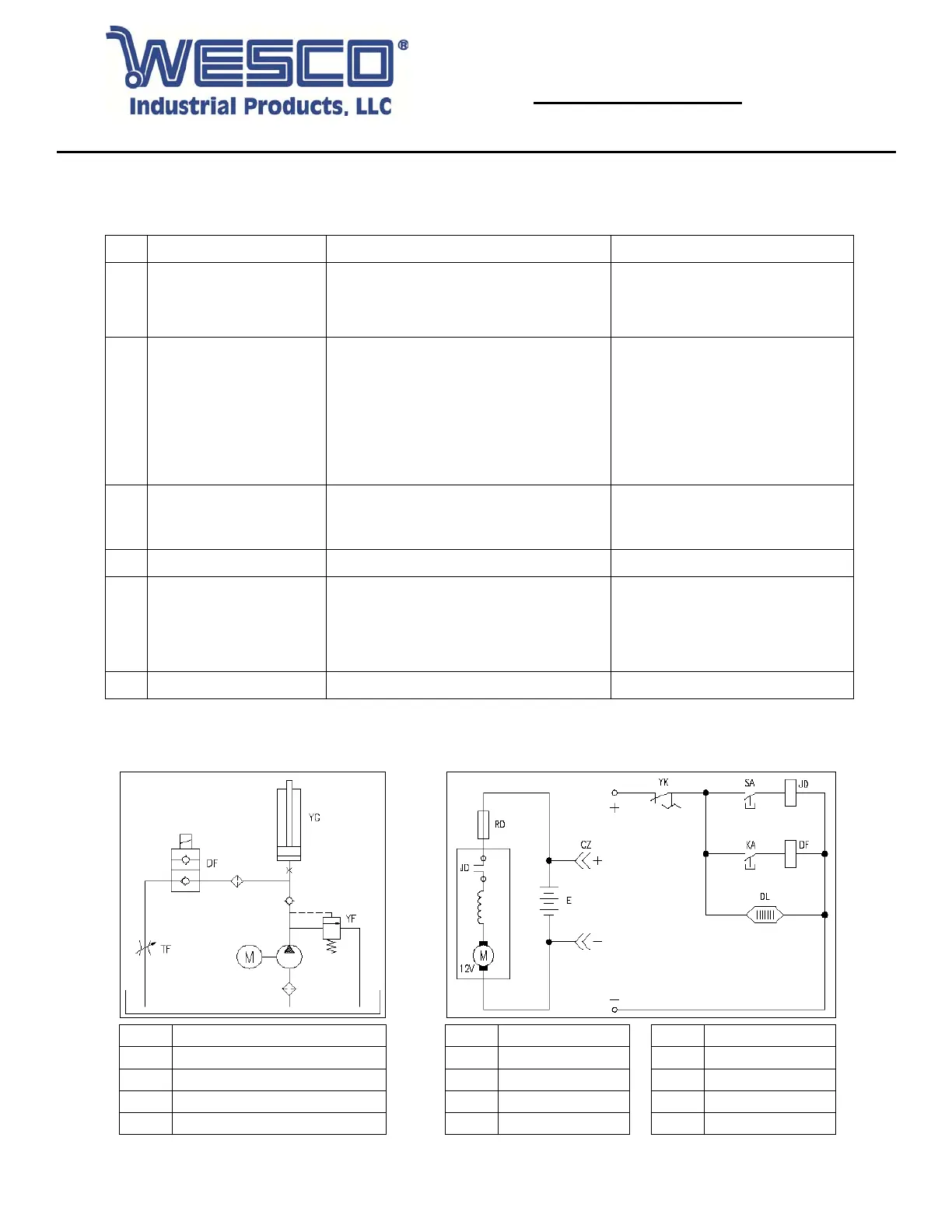

8. SYSTEM DIAGRAMS
Hydraulic System Electrical Control System
YG
Hydraulic Cylinder JD Relay YK Switch
DF
Magnet Valve RD Fuse SA LIFT-Button
TF
Speed Control Valve M DC Motor XA LOWER-Button
YF
Discharge Valve E Battery DF Magnet Valve
M
Electric Pump CZ Charger Socket DL Coulometer
Electric Value Lift Stackers
(Part # 273203 & 273204)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO VALUE LIFT
STACKER, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
