© Copyright 2015 WESCO Industrial Products Inc. Specifications subject to change. Not responsible for errors or omissions

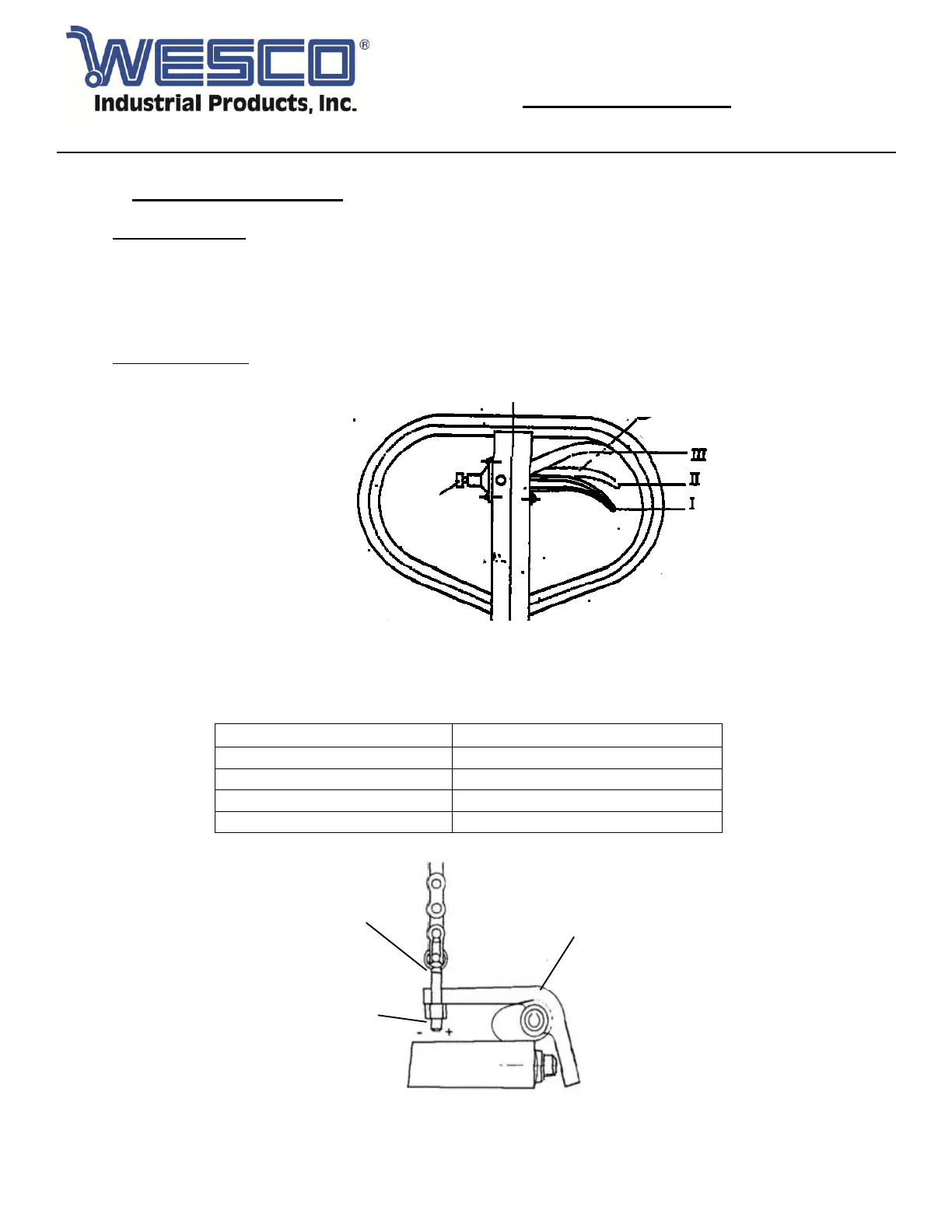

2. ASSEMBLY & ADJUSTMENT
Handle Installation
- Take 3 pieces of M10 Nut (Item 185) & Spring Washer from spare parts bag. Select handle to
match the truck with the same fitting numbers.
- Assemble the handle on the Handle Base (Item 181) with 3 pieces of M10 Nut & Spring Washer
tightly.
- Put the chain’s Eye Bolt (Item 110) in the slot at the front end of Pendulum Arm (Item 112).
Handle Adjustment
- There are 3 different positions with different functions for the Release Lever (Item 106).
Position I: Rapid lifting of forks
Position II: Slow lifting of forks
Position III: Descending of forks
- Test the functions of the unit by setting the Release Lever in each position. If it does not
function properly, then make the following adjustment to the Lock Nut (Item 113) depending on the
problem occurring:
Problem Turning Direction of Lock Nut
Forks do not lift up
- (counter-clockwise)
Forks do no lower down
+ (clockwise)
Slow lifting function does not work
+ (clockwise)
Rapid lifting function does not work
- (counter-clockwise)
Figure 2
Telescoping Manual High Lift Truck
(Part # 272754, 272755, 272975 & 272976)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HIGH LIFT
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
Figure 1
EyeBolt
(Item110)
PendulumArmfor
ReleasingOil
AdjustingNut
(Item113)
Screw
(Item187)
ReleaseLever
(
Item106
)
