Page11of15
©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions
Electric Office Lift
(Part # 272468)
Instruction Manual
8. PART INFORMATION (UNITS MANUFACTURED AFTER JUNE 2014)

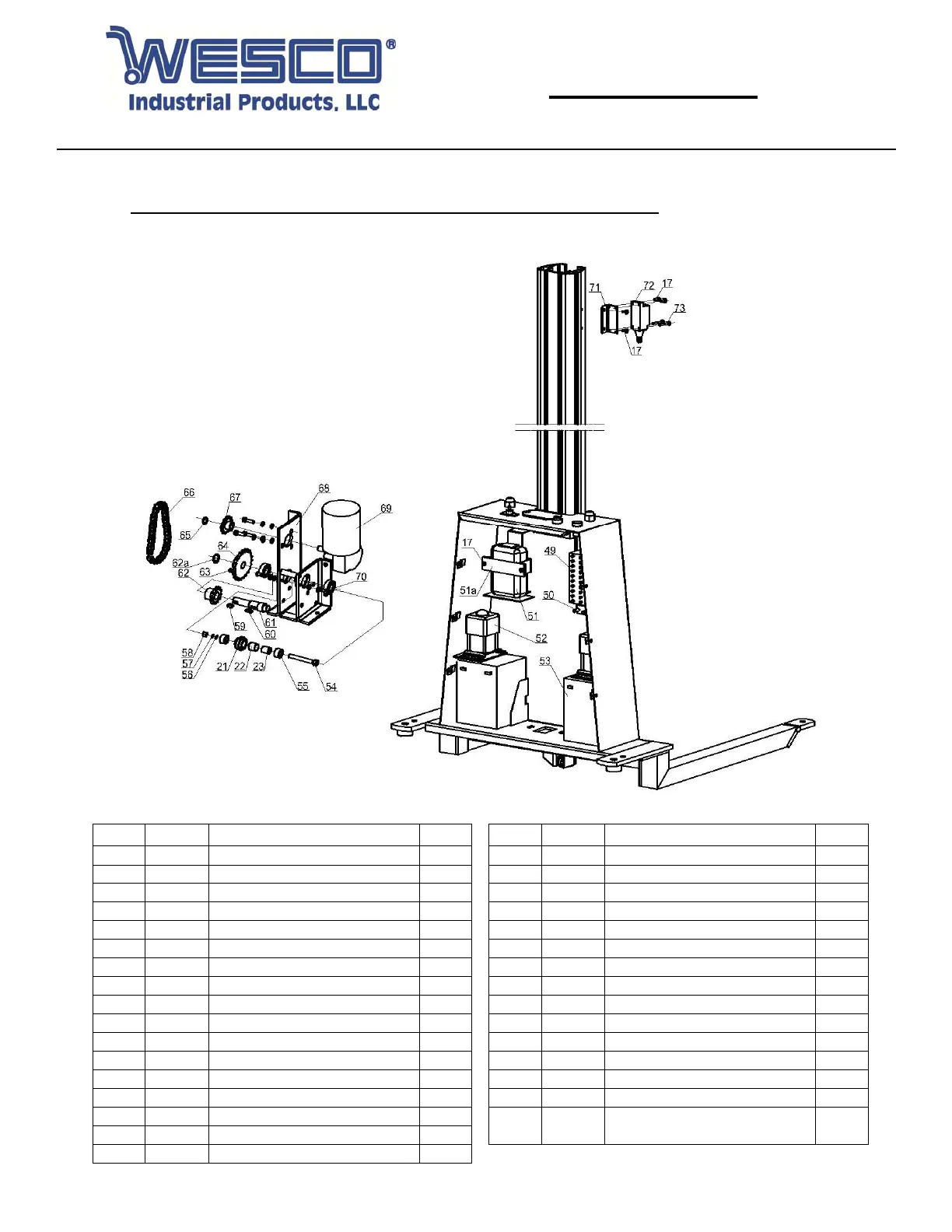

8.5 ELECTRICAL BOX PART DIAGRAM
8.6 ELECTRICAL BOX PART LIST
Item P/N Description Qty. Item P/N Description Qty.
17 Countersunk Head Screw M4x10 14
61 273957 Transmission Shaft 1
21 Load Chain Guide Wheel 3
62 Sprocket Wheel-12 Teeth 1
22 Copper Bush 15x1 3
62A Retaining Ring 1
23 Spacer Tube 3
63 Stopper Screw M5x10 1
49 Terminal Block 1
64 273955 Sprocket Wheel 23 teeth 1
50 Circuit Breaker-Automatic Reset 1
65 Retaining Ring 1
51 273188 Charger 24VDC 1
66 Transmission Chain 1
51A Fixing Plate for Charger 1
67 273956 Sprocket Wheel-13 Teeth 1
52 273968 Contactor 2
68 Reducer Seat 1
53 Battery 12V12Ah 2
69 273185 Worm Gear Box Assembly 1
54 273965 Socket Head Cap Screw M8x60 1
70 Ball Bearing 6002 2
55 Bushing 2
71 Seat for Limit Switch 2
56 Plain Washer 8 1
72 273634 Limit Switch 2
57 Spring Washer 1
73 Countersunk Head Screw M4x25 4
58 Nut M8 1
*
Stopper Screw M5x6
(For Sprocket Wheel-13 Teeth)
1
59 Flat Key 6x6x10 1
60 Flat Key 5x5x14 1
*Notshown,usedinolddesign
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFTER, READ
THESE INSTRUCTIONS ENTIRELY BEFORE USING.
