©Copyright 2015 WESCO Industrial Products, Inc. Specifications subject to change. Not responsible for errors or omissions.

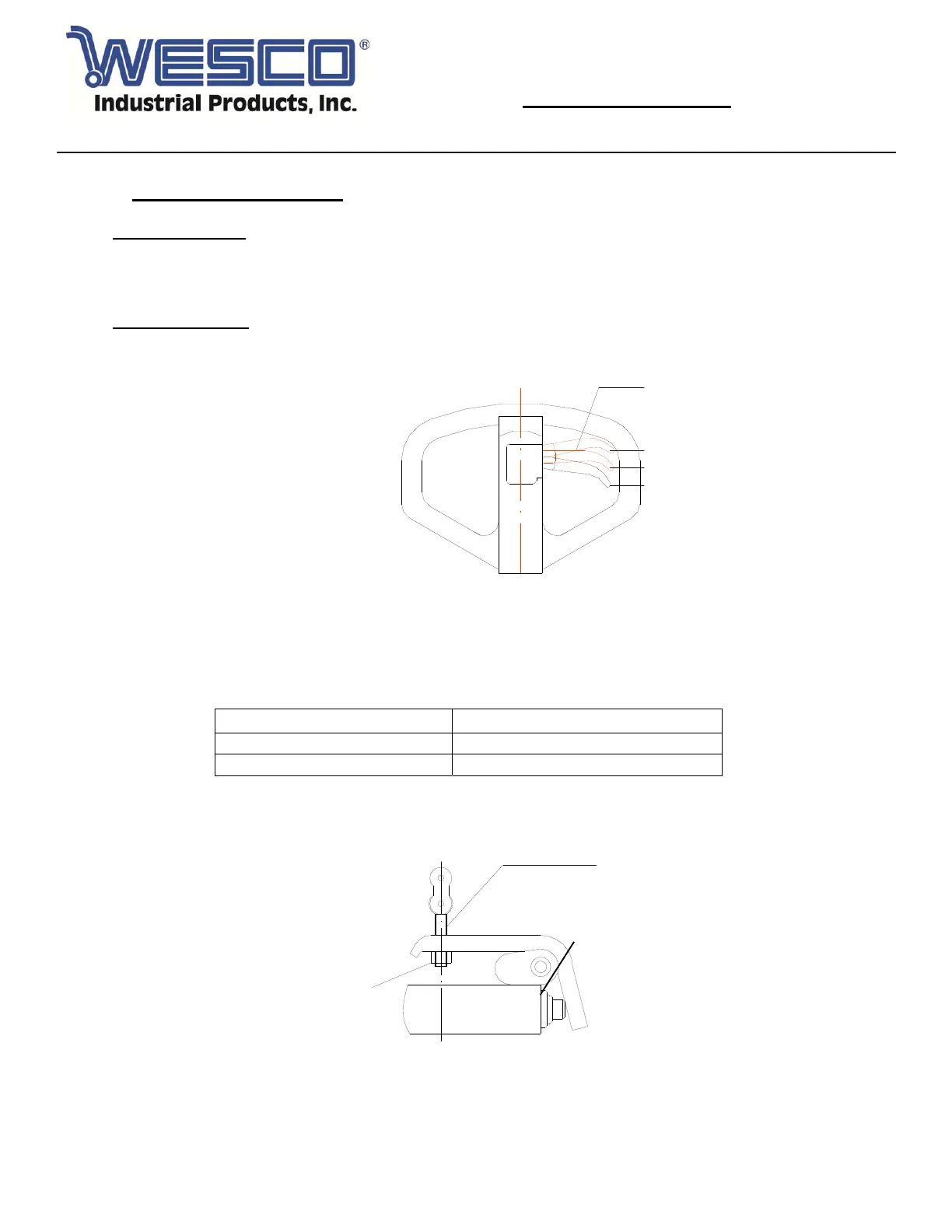

2. ASSEMBLY & ADJUSTMENT
Handle Installation
- Take off screw (Item 33) and pin (Item 32).
- Assemble the handle on the Handle Base with the two items screw (item 33) and Pin (Item 32).
- Press the handle, and take off the hooked plate.
Handle Adjustment
- There are 3 different positions with different functions for the Release Lever (Item 49).
Position I: Lifting forks
Position II: Neutral Position of forks
Position III: Descending forks
- Test the functions of the unit by setting the Release Lever in each position. If it does not
function properly, then make the following adjustment to the Lock Nut (Item 36) depending on the
problem occurring:
Problem Turning Direction of Lock Nut
Forks do not lift up
- (counter-clockwise)
Forks do no lower down
+ (clockwise)
Eye Bolt (No.37)
Adjusting
Nut (No.36)
-+
Figure 2
Manual Non-Telescoping High Lift Truck
(Part # 272462 & 272463)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO HIGH LIFT
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
Figure 1
PositionIII
PositionII
PositionI
ReleaseLever
(Item49)
