3 Analog Processing
This chapter in depth describes the analog nature of ngTubeComp.

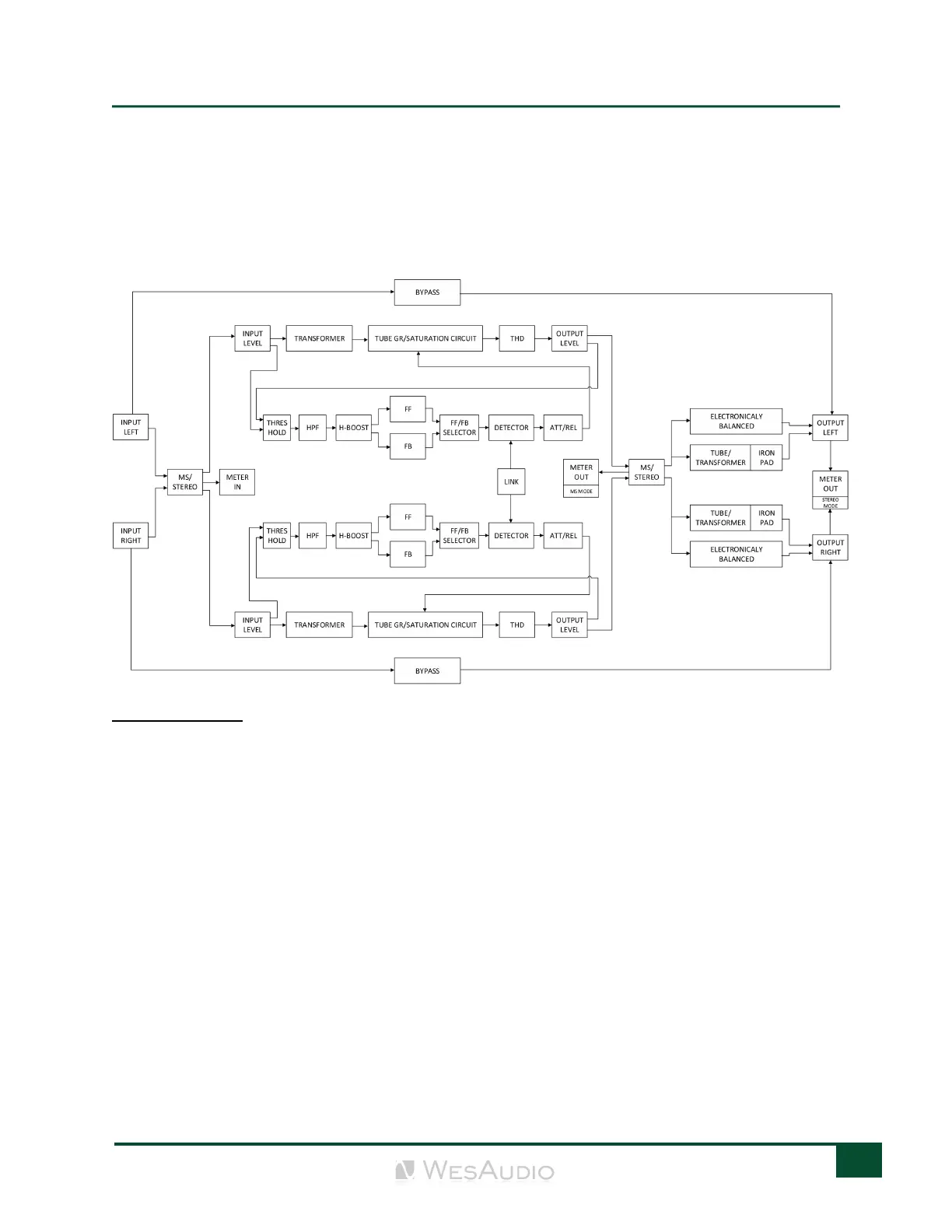

3.1 Analog Signal Flow
RELEVANT NOTES
The ngTubeComp remains a fully analog device, where certain features can influence one another due to its
integrated design. While further details are provided in subsequent chapters, the following summary highlights
key considerations regarding how specific functionalities interact within the unit:
• Bypass Functionality: Activating bypass directly connects the INPUT to the OUTPUT, rendering other
features in the signal chain inoperative. For instance, the MUTE function will not work when bypass is
enabled. If signal transmission occurs only in BYPASS mode, it's likely due to the INPUT from the
interface being incorrectly connected to the INPUT of the device, instead of the opposite.
• IRON Mode in Mid-Side (M/S) Processing: In Mid Side mode, the IRON mode's value is uniformly
applied to both channels. Since the output transformer (symmetrization) operates in Left/Right mode,
it is external to the Mid/Side processing domain.
• Metering in Mid-Side Mode: Metering functions remain within the Mid/Side domain and are not
influenced by the IRON PAD setting.
• IRON PAD Function: Positioned as the last analog circuit before the output XLR connector, the IRON
PAD allows for passive signal attenuation right before it exits the unit. This feature offers additional
