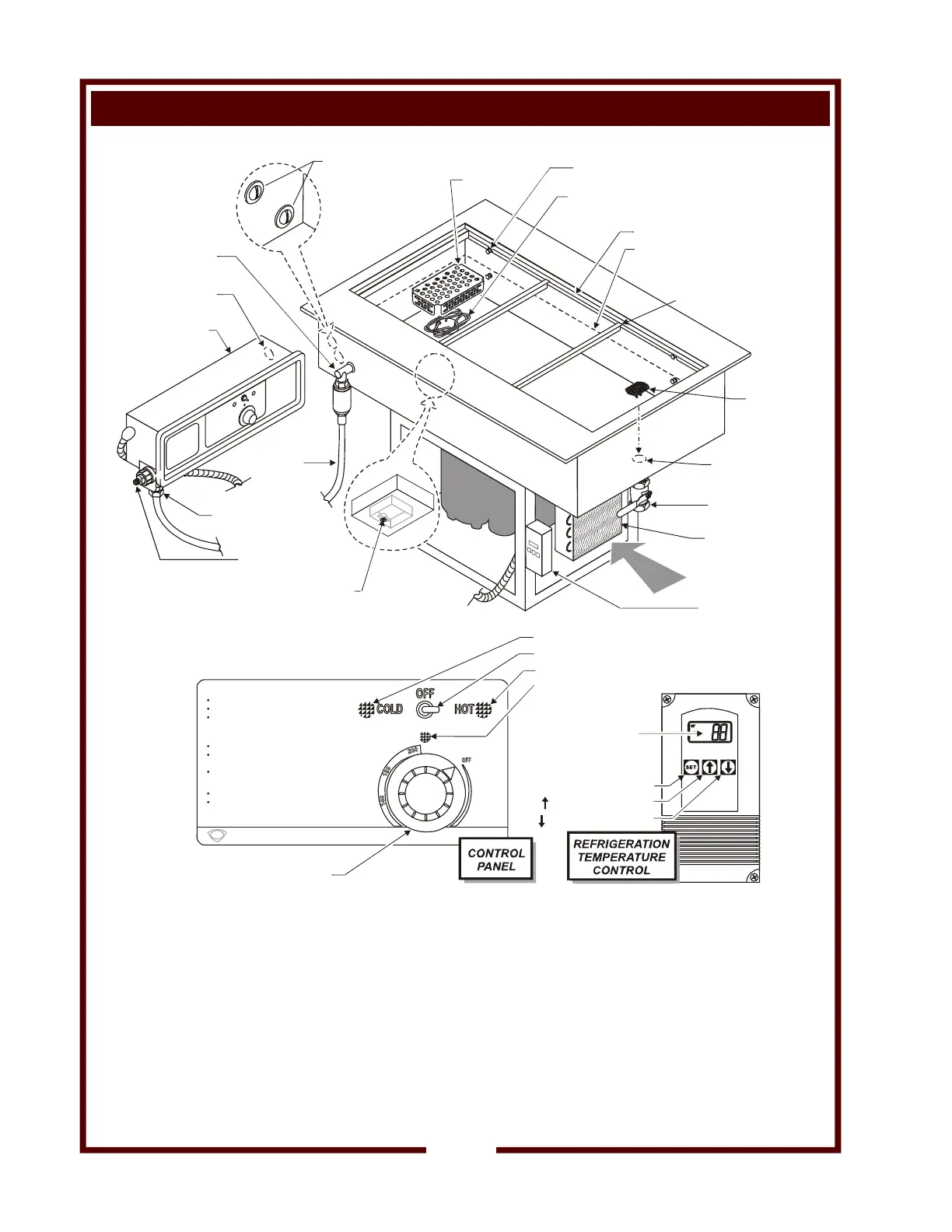

FEATURES & OPERATING CONTROLS
2
NOTE: Model HRCP-7300 shown. Models in series HRCP-ST slope tops are similar.
M406 p/n 2M-304942 Owners Manual HRCP-Series Heated Cold Pans
Parts Not Shown:
2E-302789 CONTACTOR 50A 3 PHASE 208
2E-Z17956 SOLENOID VALVE 1/4NPT 240
2E-304938 CONTROL WATER LEVEL HRCP
2E-305479 FUSE CLASS T TYPE JJS 15A
2E-37465 TERM BLOCK 3POLE 85AMP
2E-70889 RELAY 30AMP 120V
WS-23316 PAN RAIL FOR HRCP-7400
TEMPERATURE CONTROL
HOT OPERATION
COLD OPERATION
HOT OPERATION
SWITCHING FROM HOT TO COLD OPERATION
set selector to COLD position
cold pan temperature factory set
run until 30 minutes before adding
pre-chilled product
set selector to HOT position
turn thermostat dial to desired
water bath position
pan fills with water automatically
set selector to OFF position
drain hot water and allow to cool
NEVER SELECT COLD OPERATION
WHEN WATER REMAINS IN PAN
WELLS MANUFACTURING COMPANY . ST. LOUIS, MO USA
DRAIN
DRAIN
SCREEN
INDICATOR - COLD OPERATION
LCD READOUT
“SET” KEY
“ ” KEY (INCREASE)
“ ” KEY (INCREASE)
“ ” KEY (DECREASE)
SELECTOR - COLD - OFF - HOT
INDICATOR - HOT OPERATION
INDICATOR - HEATING
DRAIN
VALVE
REFRIGERATIO
N
CONDENSER
AUTOFILL
TUBE
ELEMENT
COVER
WATER LEVEL
PROBES
(inside pan)
AUTOFILL
BACKFLOW
PREVENTER
CONTROL
ASSEMBLY
(rotated 90° to
show detail)
ELECTRICAL
SUPPLY INLET
AUTOFILL TUBE
CONNECTION
WATER SUPPLY
CONNECTION
REFRIGERATION
TEMPERATURE
CONTROL
MANUAL RESET
OVER-TEMP SAFETY
NOTE: Reset is on bottom
of element and is accessible
from outside bottom of tank.
AIRFLOW
AIRFLOW
P2-31869
2V-47847
PS-304943
2V-47650
2T-304944
P2-46587
2E-304936
2J-31157
2J-30385
2E-Z17505
Knob: 2R-Y7690
Thermal Control, 36” Capillary: 2T-304937
Thermal Control, 84” Capillary: 2T-304937A
2J-40563
2E-Z17505
2N-304144; 2.5KW; 7100, 7200, 7400
2N-304145; 4.0KW; 7300, 7500, 7600
IL2693b
PAN RAIL SUPPORT
PAN RAIL (NSF 4 POSITION)
PAN RAIL (NSF 7 POSITION)
ADAPTER BAR
O3-303100
HEATING
ELEMENT
