3

10

Beauty Line Exclusive 1

Anslutningsdetaljer:

A. Flexibel arm

C. Munstycke

D. Nätkabel

Beauty Line Exclusive 2

Anslutningsdetaljer:

B. Arm med bordsfäste och exibel slang

C. Munstycke

D. Nätkabel

E. Anslutningsslang

A

C

D

B

C

ED

9. Artikelnummer

Beauty Line Exclusive 1 970-1021

Beauty Line Exclusive 2 970-1023

Förlter, 2-pack 970-2020

Huvudlter 960-2021

Fjärrkontroll 700-3035

Flexbel arm (A) 0F10B

Arm med bordsfäste och exibel slang (B) 3415B

Munstycke (C) NB

5

8

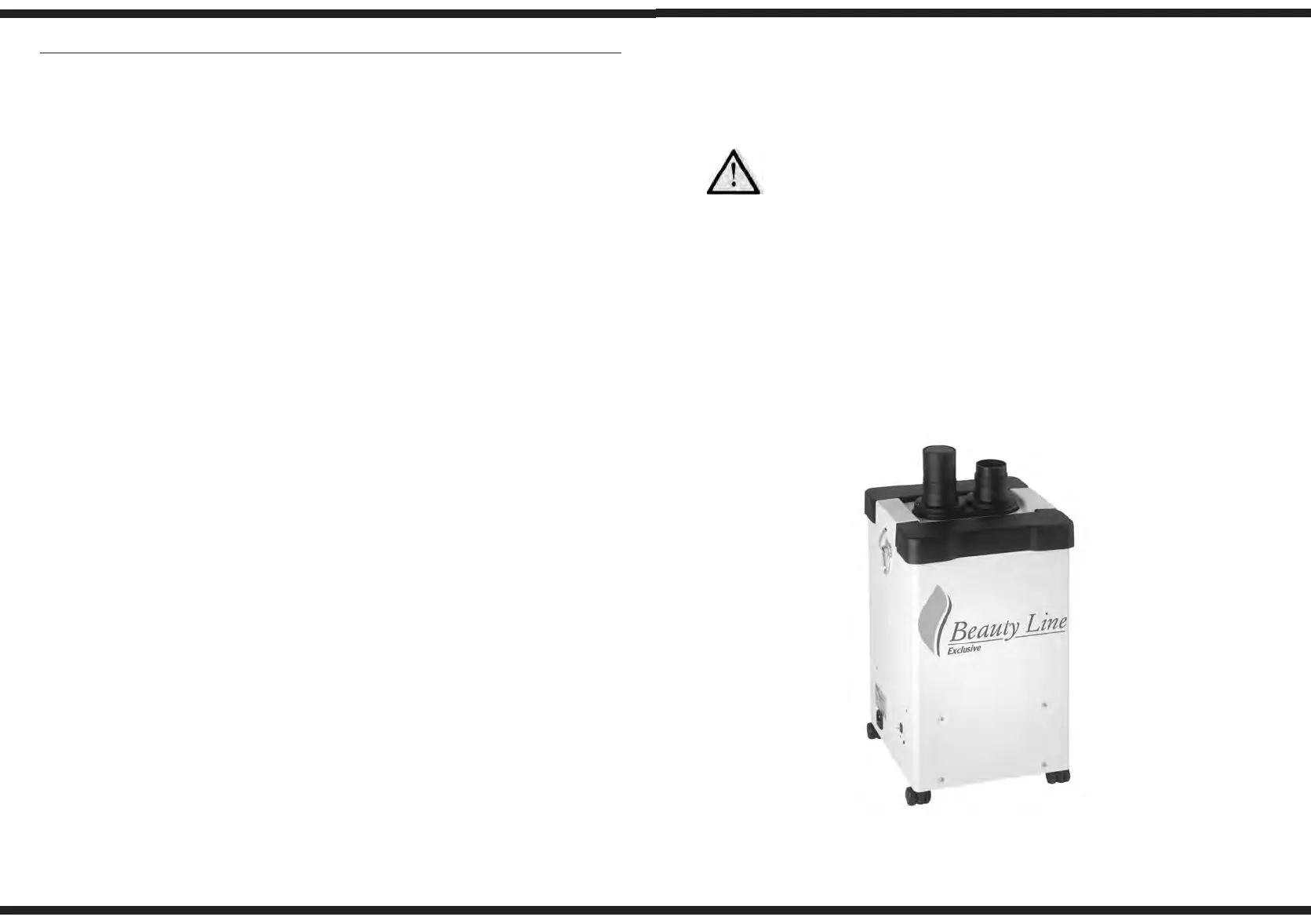

Beauty Line Exclusive 2:

Mount the extraction arm (B) on the table , thread the clamps through the rectangular

holes in the holding sheet and fasten them at the table edge. Mount the nozzle (C) on the

extraction arm (B). Mount the connection hose (E) between the hose connection (1) and the

extraction arm (B). Connect the power cord (D) to the lter system (8).

NOTE! The lter system may dust some from the main lter after trans-

portation. Make sure the starting of the system is made in an appropriate

room.

7. Maintenance and Service

Pre lter exchange

Change the pre lter when the alarm indicates.

1. Turn off the lter system by removing the

power cord (D).

2. Open the locks (5) and remove the lid (2).

3. Remove the pre lter by pressing the black

hose connection, see picture (10).

4. Mount a new pre lter.

5. Put the lid (2) and the locks (5) back.

If alarm comes back when starting, the main lter is

consumed and needs to be exchanged, see ”Main lter

exchange” below.

Beauty Line Exclusive 2

Place the extraction arm on the work bench. It is important that the extraction arm has

the correct position, see under headline 5 ”Management”. The power cord has to be con-

nected to a protective earth connection system, 10 A.

Start the lter system by pressing the button (8).

5

2

Main lter exchange

1. Turn off the lter system by removing the

power cord (8).

2. Open the locks (5) remove the lid (2).

3. Remove the main lter (4).

4. Mark the new main lter with the date of

change.

5. Mount the new lter in the lter system.

6. Put the lid (2) and the locks (5) back.

7. Reset the lter by pressing the button (8)

on the control panel for 10 seconds, until

a ready signal hears.

To guarantee a satisfactory function clean the

nozzle and hose connection regularly.

5

2

4

10

4.indd 1 08.04.15 10:45
