Mechanical and electrical design

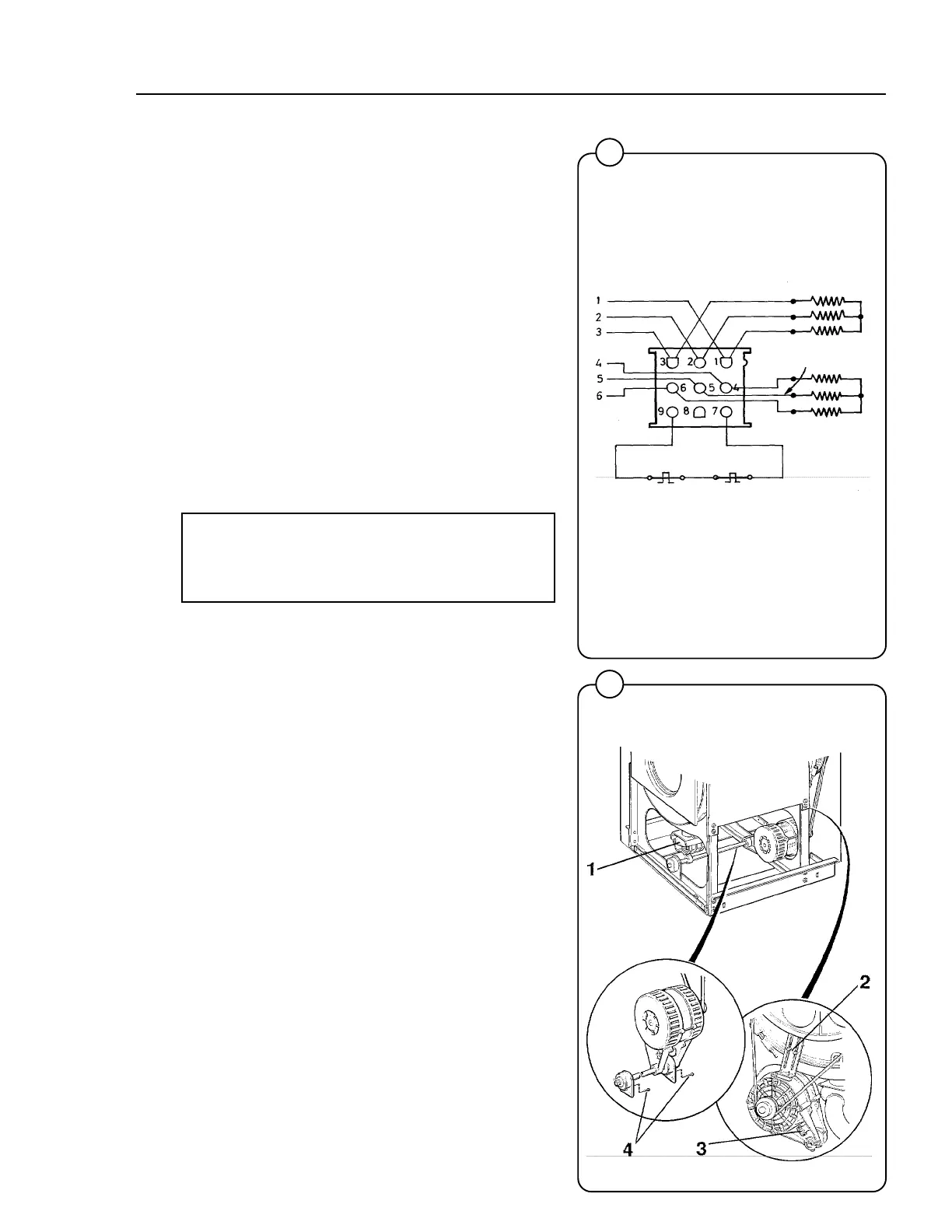

Motor connections
1, 2 and 3: wash speed (18-pole winding).
4, 5 and 6: extract speed (2-pole winding)
7 and 9: motor overload protector.
Motor overload protector
The motor is equipped with two self-resetting,
thermal overload protectors, situated one in the
each winding of the stator. The protectors are
connected in series and will trip at a temperature
of 120°C (248°F) (3-phase) or 130°C (266°F)
(single phase). In the event the protectors fail
but the motor remains otherwise undamaged, an
overload protector may be mounted in the control
unit of the machine. Before making such installa-
tion check to ascertain that the windings are not
damaged. A burned out motor can be re-wound.
NOTE
Before connecting a separate overload
protector consult the local code.
Single-phase W125 and W185 machines are
also equipped with a manually set overload
protector mounted on the extract relay in the
control unit. This overload protector protects the
motor during the start-up of the extraction.
Removing the motor
• Remove the drain valve (1) from the axle by
pulling it straight up.
• Remove the tightening unit (2) on the rear of
the motor.
• Disconnect the connector (3) placed
diagonally under the rear edge of the motor.
• Remove the t wo screws (4). Pull the axle
forward slightly until the guide pins pull out of
the axle brackets. Remove the motor unit.
35
34
0304
1157
F
F
25
Blue
White
Black
Black
HIGH SPEED
Overload protector
Blue
LOW SPEED
White
