Mechanical and electrical design
Control unit
The control panel, mounted at the front, includes all components necessary
for operating the machine, such as display window, control lights and a
program selection knob.

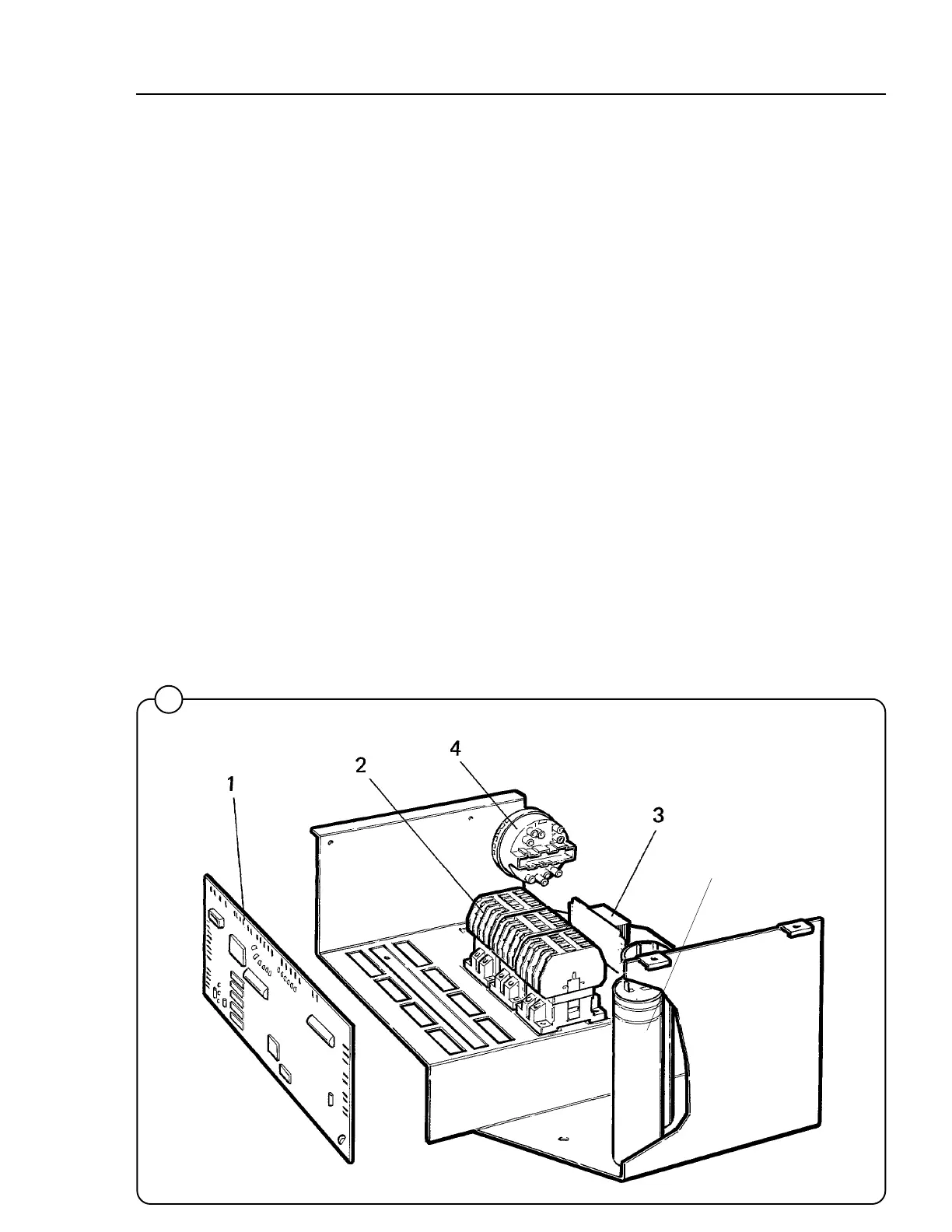

The printed circuit board (1) with the microprocessor-controlled electronic
timer is mounted just behind the control panel.
Relays (2), transformer (supplying the printed circuit board ) (3) and level
controls (4) are located at the top of the machine, easily accessible for
service, as are the motor capacitors (5) on 1-phase models.
Electrical connections to the machine are made by quick-disconnect plugs.
1151
28
F
19
5
