Mechanical and electrical design
25
Panels
The machines are equipped with a top panel made of stainless steel. The
front panel is available in different colors or in stainless steel. The colored
panels are made of phosphatized steel plate. For servicing purposes, the
panels can easily be removed.
Back gable and bearing
The back gable and the bearing trunnion housing are constructed of a
webbed heavy casting for extra rigidity. There are three neoprene seals to
protect from filtration of water. The sleeve bearings are water protected. An
intermediate safety outlet provides an escapement for any possible con-
densation.
The seals are mounted on a chrome-plated, specially hardened sleeve
bushing that is mounted on the drive shaft to prevent wear of the seals and
shaft. The main bearing is fitted machine-tight into the bearing trunnion
housing. A C-clamp is placed on the shaft to prevent the cylinder from
moving in and out.
The extension of the bearing trunnion housing supports the rear bearing
holding the shaft. The bearings are permanently lubricated and need no
maintenance.

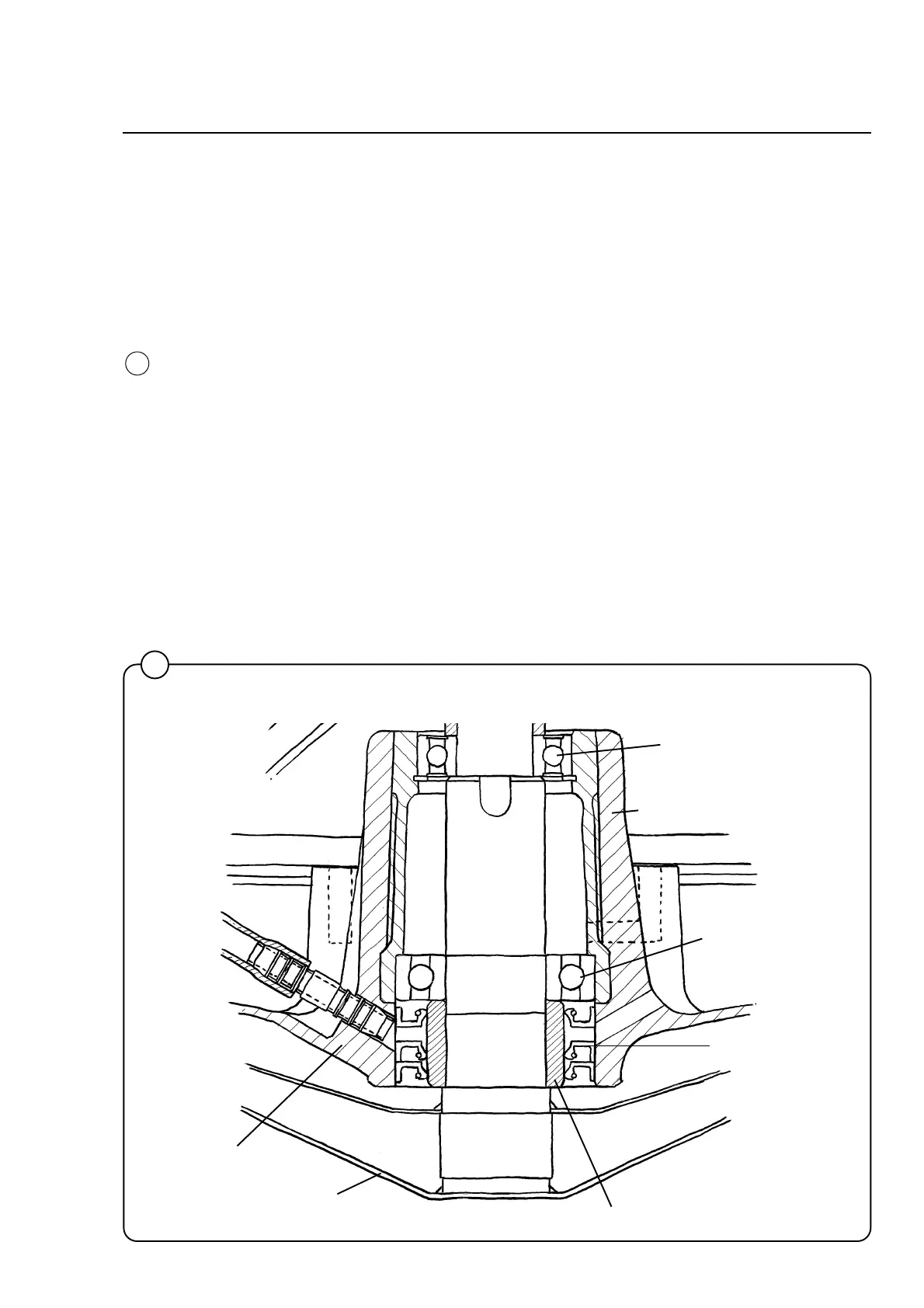

2412
17
W75
Rear wall
Bearing house
Rear bearing
Inner drum
Bushing
Sealing rings
Front bearing
Fig.
25
