38

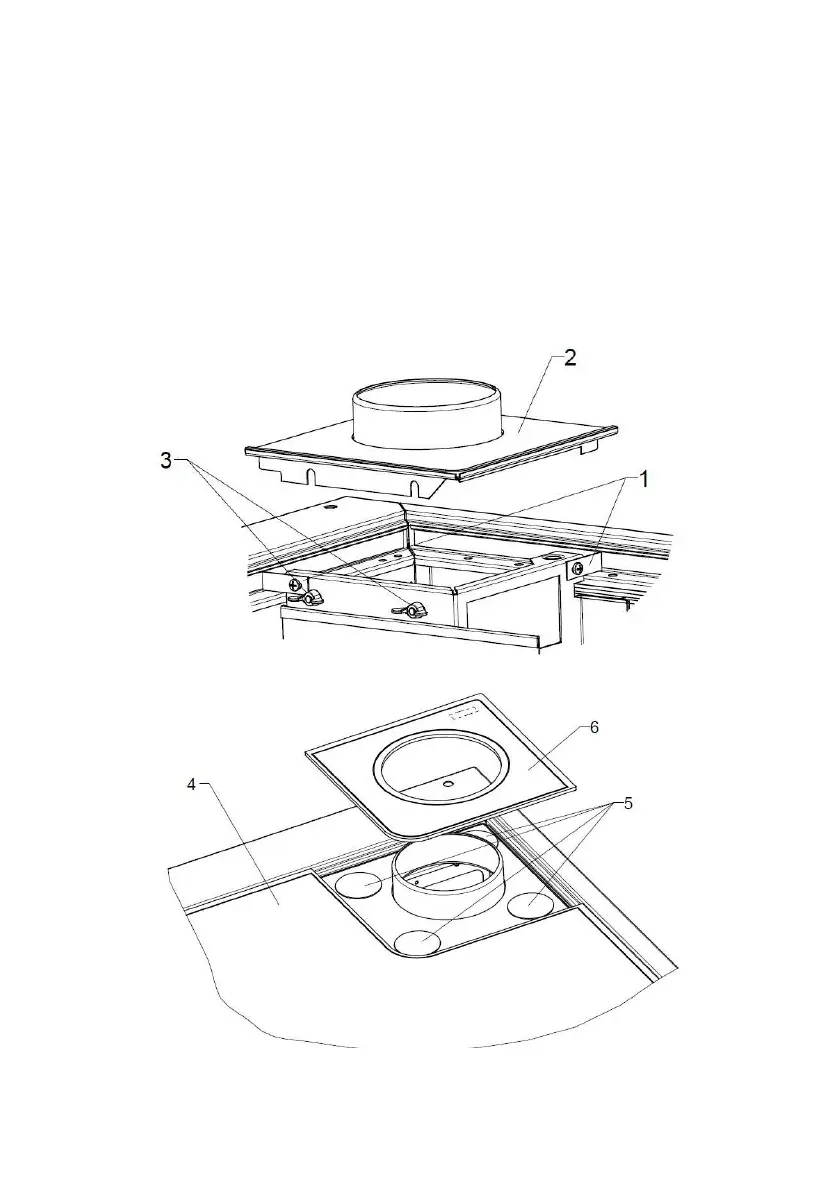

1.9 Connecting flue gas at Ceran plate (only K128 / K128F)
In principle, the devices are manufactured in the version as ordered. Once a device has
to be retrofitted or rebuilt, to be carried out subsequent operations (special order):
seal plates mounted (no. 1)
Mount connecting plate (no. 2) fixed to the bracket with the two wing nuts (no. 3)
Fix Ceran plate (no. 4) on the cooker
Hang 4 spacers (5 Nr.) on the connecting plate (no. 2) and position the small
Ceran plate (Nr. 6). Ceramic hob - Position can be aligned by adjusting the wing
nuts as desired.
