40
2.2 Combustion airflow settings
The settings must always be as shown.
Fuel
Primary
airflow
setting
Start damper
setting
Secondary
airflow
setting
Combustion
duration in
hrs
Lighting
1
open
1
-
Firewood
Nominal heat
2
closed
1
approx. 1
Lignite briquette
Nominal heat
1
closed
0
approx. 2
Lignite briquette
Long-term
3
closed
0
approx. 12
Not in use: do not add any more
fuel
3
closed
0
-
Table 2
3 Use
3.1 Important operating components
3.1.1 Adjustable grate
The range is equipped with a height adjustable grate for summer and winter operation.
Adjusting the grate for summer operation (K128 / K138)
To adjust the grate to the summer operation position, the grate and the grate support
should be removed from the range. Then attach the adjustable grate support (included with
the accessories) to the front of the upper grate support (see Fig. 7). Insert the grate
support with the grate on top.

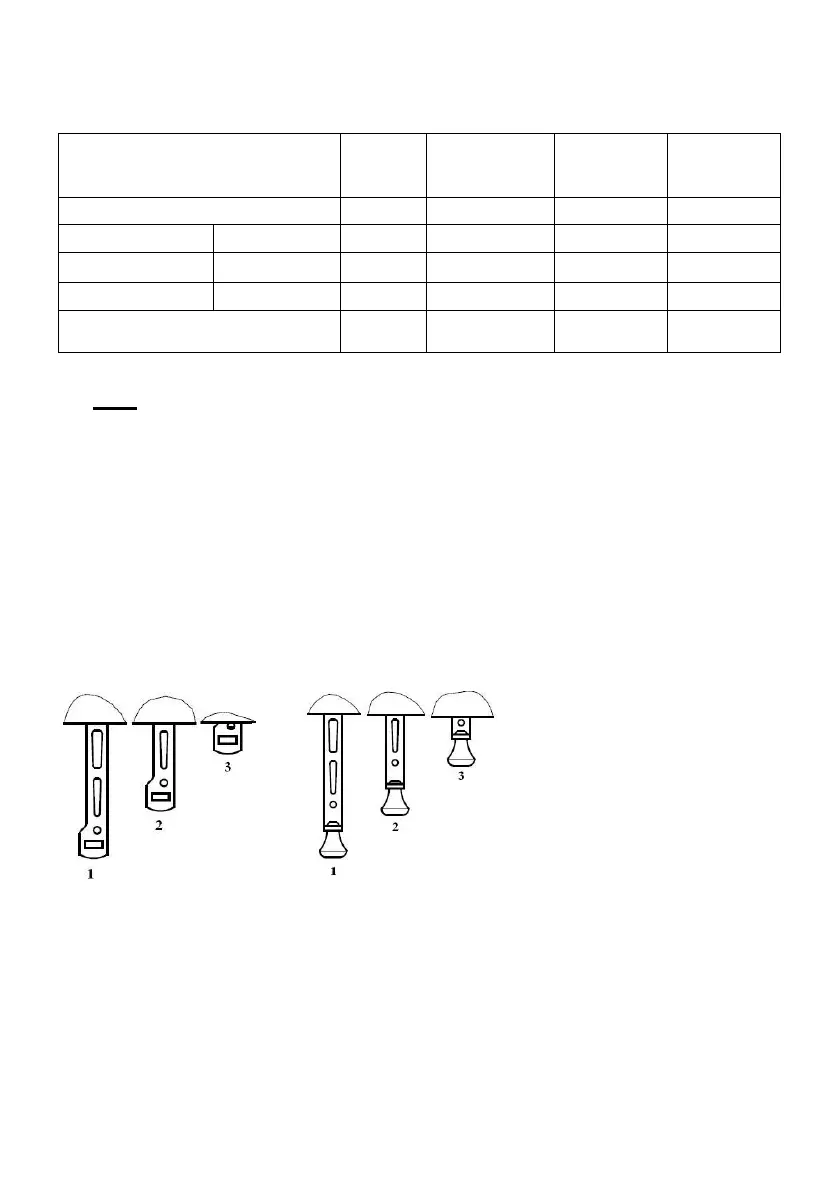

3.1.2 Performance control
The burning rate and therefore the heating capacity of the range can be regulated by the
combustion air intake under the grate. This primary air is set using the primary air regulator
(Fig. 6).
K118 / K128 / K138
K128F / K138F
1 = Lighting, Lignite (open)
2 = Wood
3 = Not in use (closed)
3.1.3 Secondary air control (without K 128 F / 138 F)
The secondary air regulator is in the top of the fire door and can be set according to the
fuel being used, wood (1) or coal (0) (Fig. 8).
3.1.4 Start damper
The start damper is operated from the front. The hooked end of the lid lifter lever which is
supplied should be latched into the operating lever slot (Fig. 9).
The start damper is open, if the operating lever is pushed forward as far as it will go
(lighting up, cooking).
The start damper is closed when the operating lever is pushed back as far as it will go
(baking, roasting).
