14 Device Description EPSITRON®
787-1662 Electronic Circuit Breaker
Manual
Version 1.0.0
Pos: 20 /A ll e Ser ien (Al lg emei ne M od ule)/ Üb ers chrif te n für al le S eri en/G erä teb esc hrei bu ng/A nsic ht - Ü b erschr if t 2 @ 4\ mod_1240984217343_21.docx @ 31958 @ 2 @ 1
3.1 View
Pos: 21 /S eri e 7 87 ( EPS ITR ON)/ Ger ät ebesc hrei bung /Ans icht/A nsic ht 787- 1662 @ 17\mod_1385383035632_21.docx @ 138262 @ @ 1

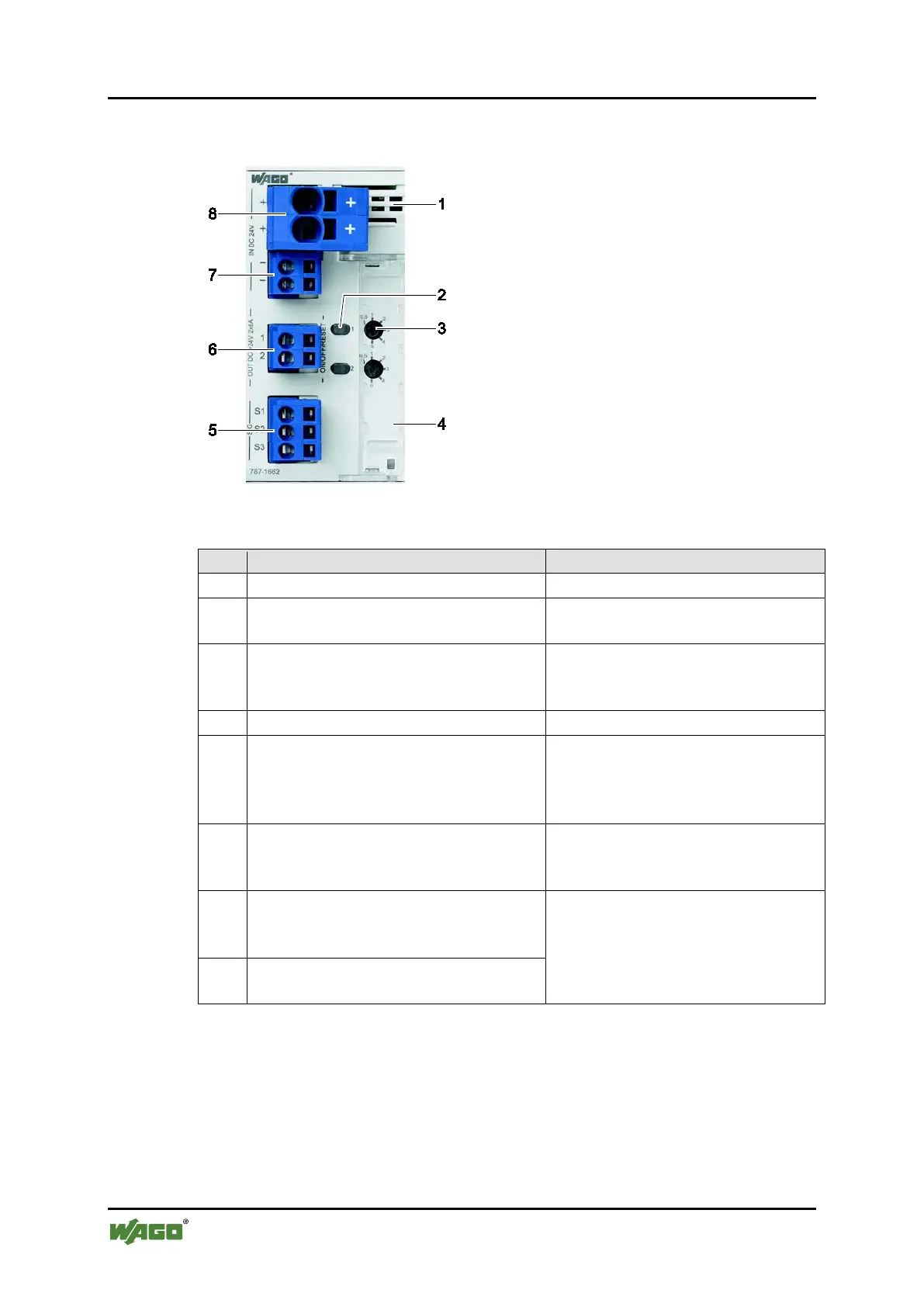

Figure 1: View of device
Table 5: Key for "Device view" figure
No.
Designation
Reference
1
Marking field *)
2
Switch
"Device Description" >
"Operating Elements" > "Buttons"
3
Rotary switch
"Device Description" >
"Operating Elements" >
"Rotary Switches"
4
Cover, sealable **)
5
CAGE CLAMP
®
connections
Control input S1 and
Signaling outputs S2 and S3
"Function Description" >
"Control Input S1"/
"Signaling Output S2"/
"Signaling Output S3"
6
CAGE CLAMP
®
connections
for fuse-protected output channels
"Device Description" >
"Connections" >
"Fuse-Protected Output Channels"
7
CAGE CLAMP
®
connections
for 0 V reference potential
(for internal supply only)
"Device Description" >
"Connections" > "Power Supply"
8
CAGE CLAMP
®
connections
for 24 V input voltage
*) can be marked using TOPJOB
®
S marker strips (Item No. 2009-110) or
WMB Multi marking system
**) can also be marked using TOPJOB
®
S marker strips (Item No. 2009-110)
