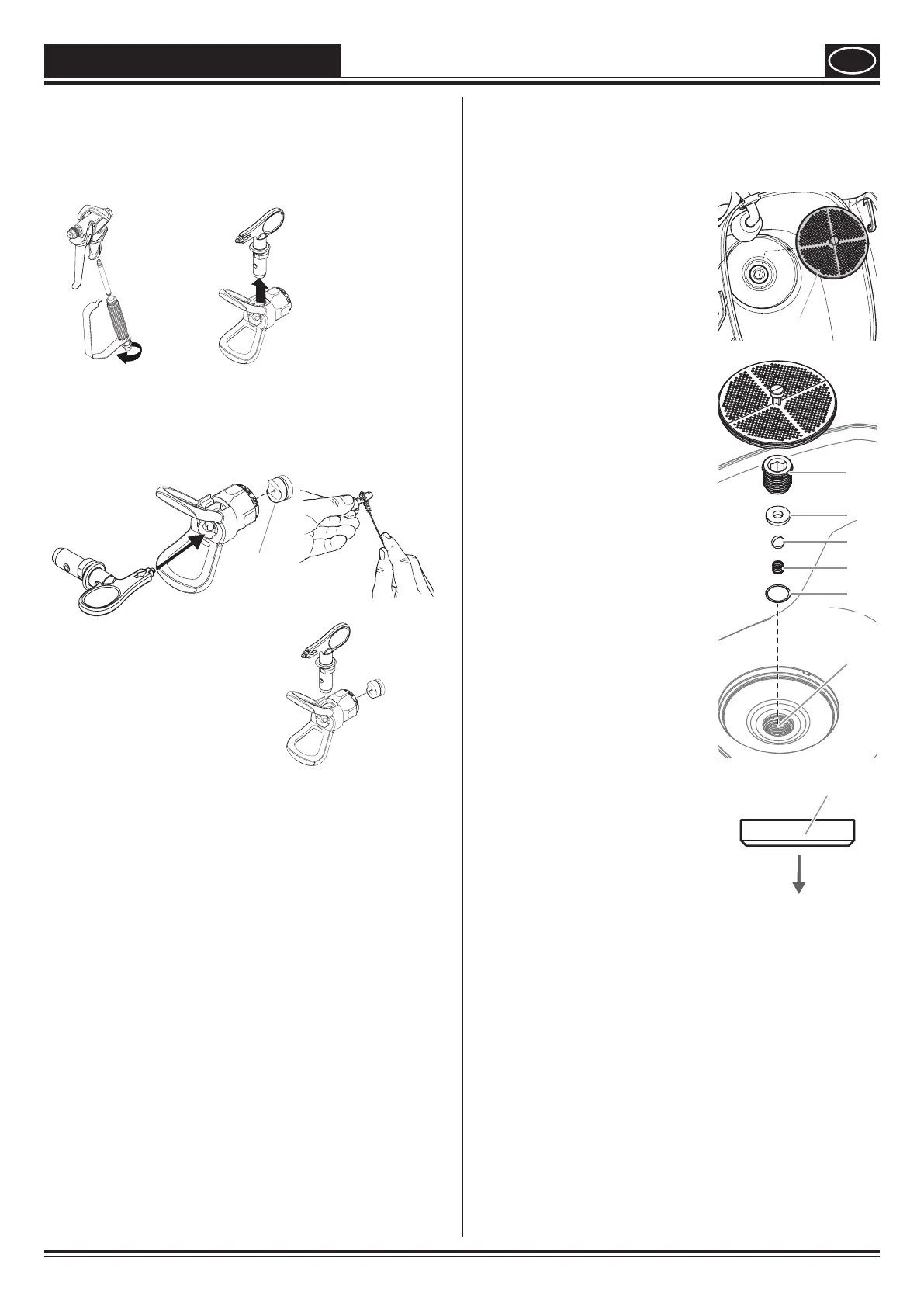

Cleaning the spray gun components
1) Perform Pressure Relief Procedure, page 31.
2) Remove lter from spray gun (refer to Unclogging the
Spray Gun Filter, page 35).
3) Remove spray tip from spray guard assembly.
4) Clean spray tip and lter with a soft-bristled brush and
the appropriate cleaning solution. Take care to remove
the holder in the rear section of the spray nozzle set
and clean it.
Holder
5) Reassemble spray gun:
•
Insert the gun lter and
tighten it with a slotted
screwdriver.
•
Install the spray nozzle and
holder. Place the nozzle holder
on the gun and tighten it.
IMPORTANT!
If you cleaned your pump, it is recommended that you
ush the pump again using warm, soapy water to prepare
it for storage. Repeat Flushing the Pump instructions.
Cleaning the inlet valve
Cleaning or servicing the inlet valve may be required
if the unit has priming problems. This may be caused
by improper cleaning and/or storage.
1)
Remove the inlet lter from
the bottom of the hopper.
Inlet lter
2) Loosen and remove the inlet
valve housing (1) with an
Allen key (8 mm).
3) Remove the valve seat
(2), ball (3), spring (4)
and O-ring seal (5) with a
suitable tool (e.g. needle-
nose pliers, tweezers).
Tip: alternatively, turn the
device upside down with the
cover on and release the parts
by tapping on the underside of
the device.
4) Check all parts and the valve
area (6) in the container and
clean thoroughly. Replace
damaged parts.
5) Ensure the O-ring seal on the
inlet valve housing (1) is well
lubricated.
6) Replace all parts as shown in
the illustration. The conical
side of the inlet valve seat
(2) must point downwards.
7)
Securely re-tighten the inlet
valve housing (1) with an
Allen key (8 mm, 6,5 Nm).
1
2
5
3
4
6
2
CLEANUP / MAINTENANCE
