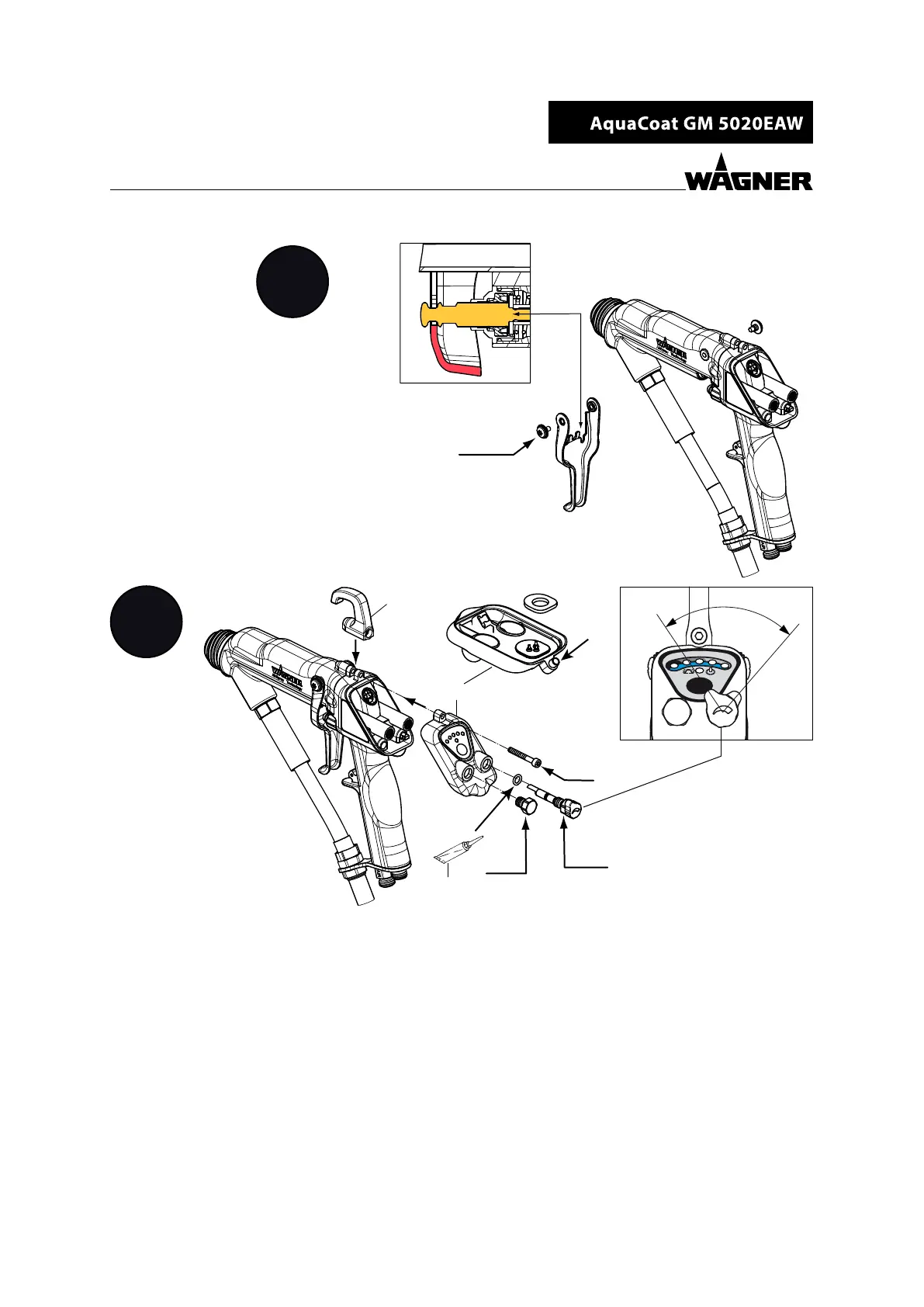

OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
8
Torx® 25
B_03502
Push the trigger upward into the
air valve piston. The recess in the
trigger must engage correctly in the
indentation of the piston.
9
5
6
SW3
0.8 Nm
SW12
SW12
2
B_04982
7
R1
R3
R2
Ensure the correct
insertion position!
(sparingly)
Cover (5)
The cover must be handled
carefully and not be twisted
or distorted in any way.
1. Press metal sleeve (6) back in cover (5) (e.g., press on table). In the process, only exert
counter pressure on the sleeve bracket and not on the entire cover.
2. Position cover straight and level, and carefully press in. Use only minimal force, gently
rocking from side to side if necessary.
3. Ensure that the cover is ush mounted on all sides.
4. Press back on metal sleeve for a ush t (e.g., press on table).
5. Position bracket (7).
6. Mount screw, plug, and air regulation.
