Je bekijkt pagina 90 van 136

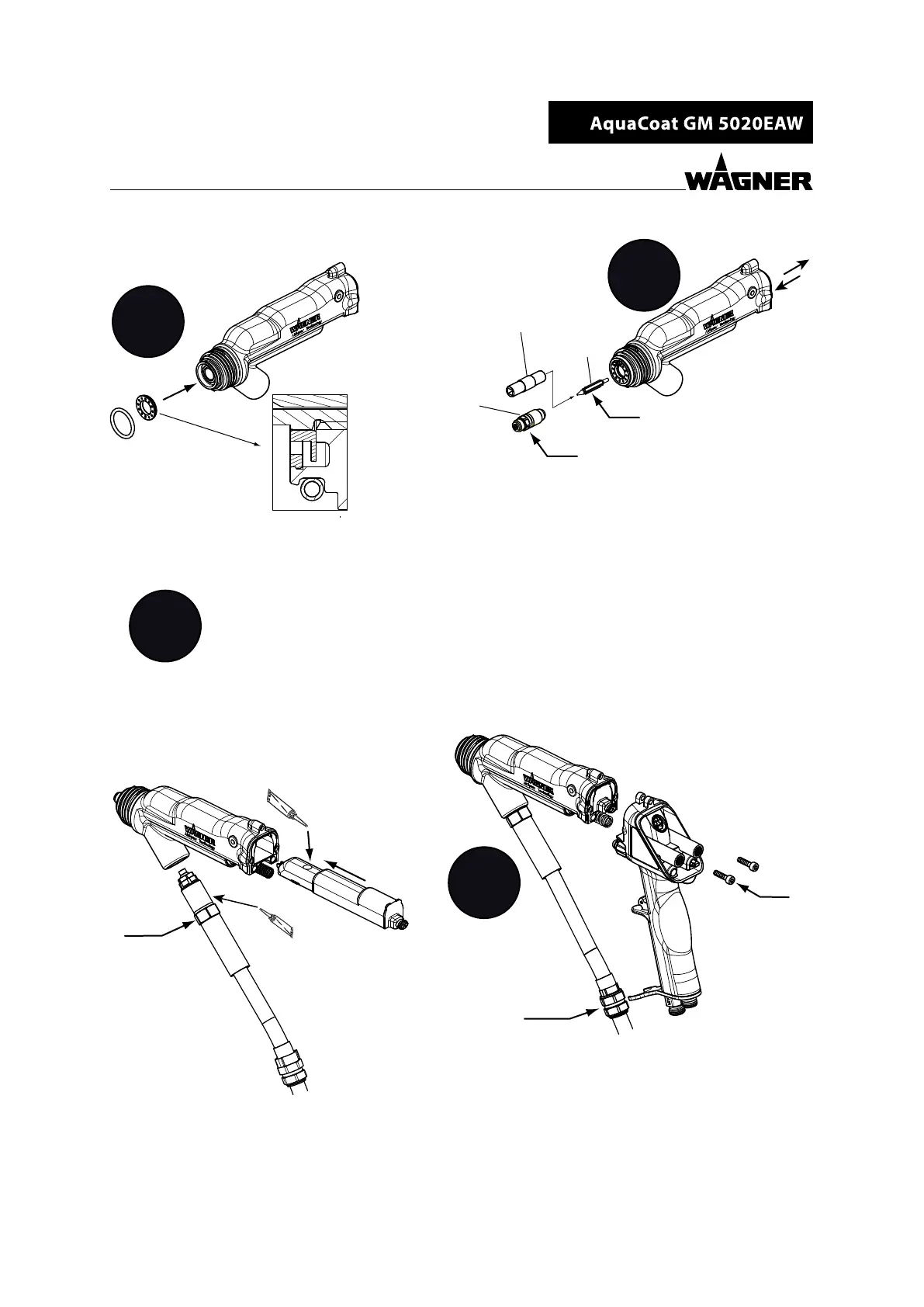

90
OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
4
5
SW11
B_04980
1.8 Nm; 1.3 lbft
0.1 Nm; 0.07 lbft
2
3
1
4
Ensure the correct
insertion position!
Valve needle assembly tool,
Order No. 2309368
1. Move the valve rod to the rear position so that the sealing area
does not become scratched (1).
2. Very slightly tighten valve tip (2) using an assembly tool with
three ngers.
3. Use socket or ring spanner (no wrench) to tighten the valve
housing (3).
4. Slide the valve rod to the forward position (at the valve seat) (4).
6
B_05909
SW19
2.5 Nm
2
2
Clean and degrease the inside of the
adapter and the cascade, then grease
the cascade surface with Vaseline.
7
SW3
SW19
B_05910
0.8 Nm
Ensure that the spring is inserted in the adapter.
Ensure that the at gasket is inserted in the handle.
