OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717

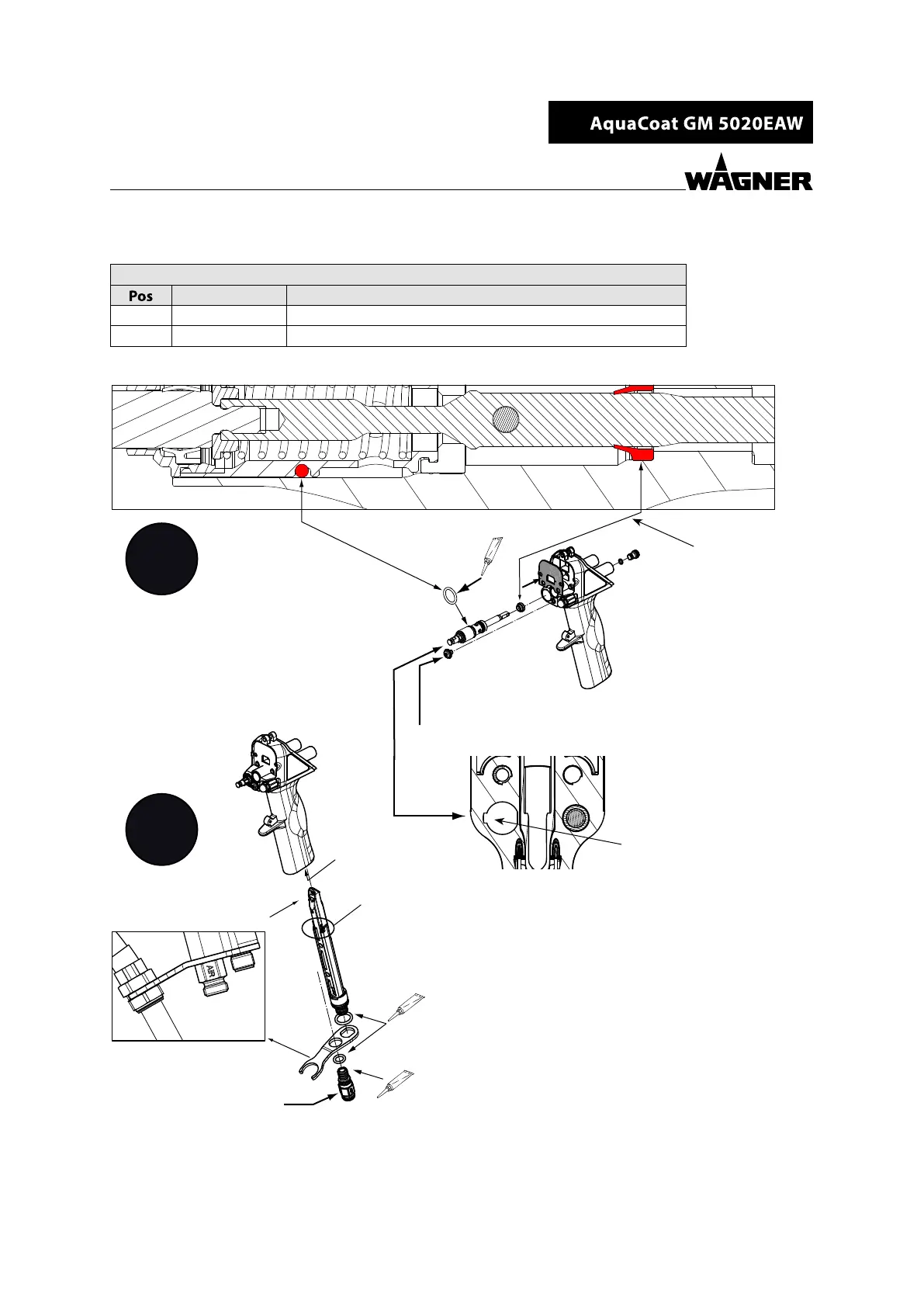

10.4.4 ASSEMBLING THE SPRAY GUN
Mounting materials
Order No. Description
2 * 9992698 Vaseline white, PHHV II
4 9992511 Loctite® 243
* Use Vaseline sparingly
1
B_03448
2
B_04778
SW14
3 Nm
Torx® 20
4
2
6
5
2
Ensure the correct
insertion position!
Ensure the correct insertion position!
(sparingly)
Only as required
(if the seal was removed):
press in using handle
seal assembly tool
(Order No. 2342334, not
included in scope of
delivery)
Recess for pin
Hold the air valve so that
the pin points to the left.
Gold contact sleeves
Check whether the two gold contact sleeves are
in the handle (5). Otherwise, insert the sleeves
onto the two gold pins of the plug (6). Slide plug
into handle.
