86
OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717

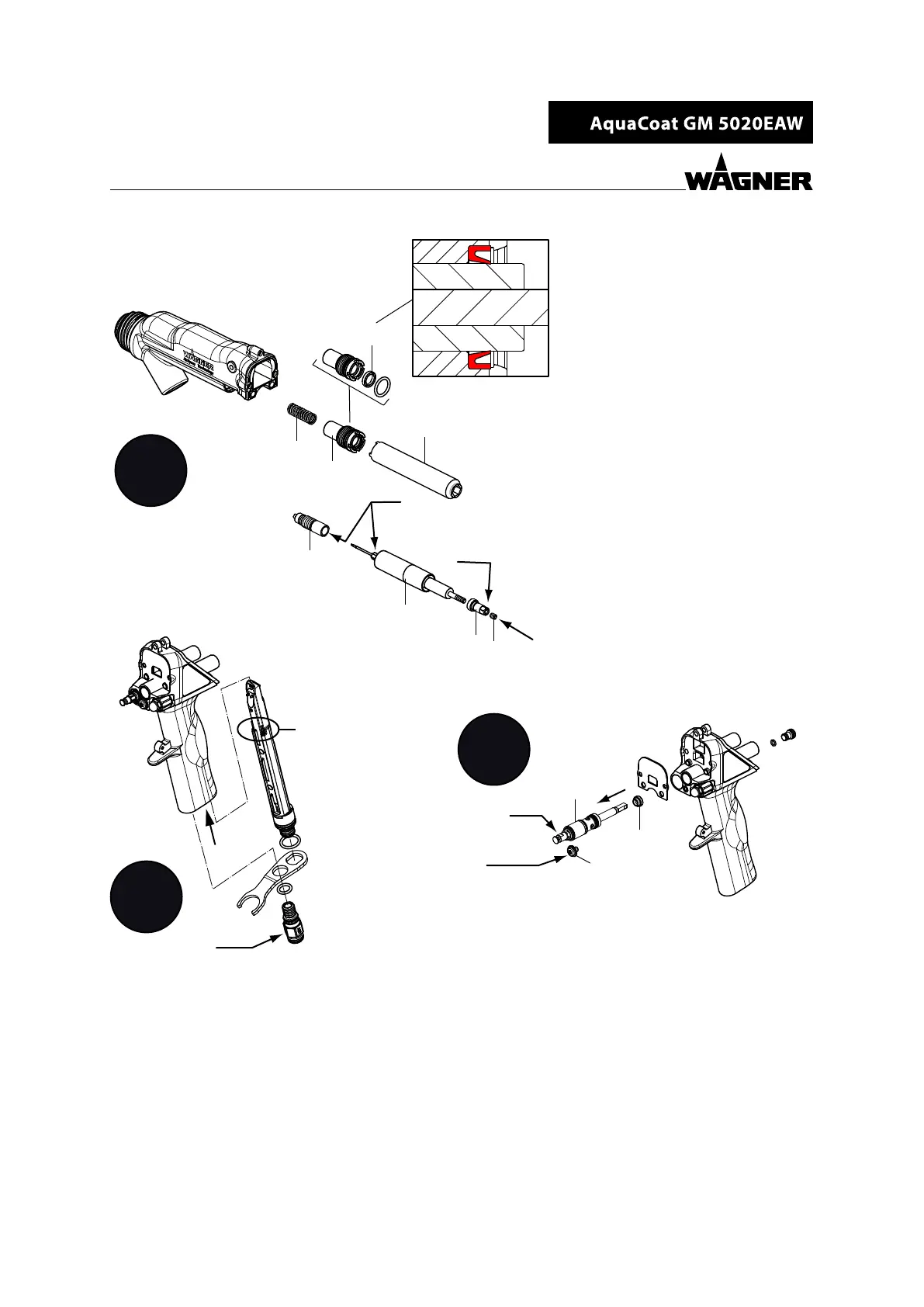

7
B_04371
SW6
SW5
SW2
1
4
5
2
6
7
3
10
1. Remove pressure spring (4).
2. Loosen clamping screw (1) with
assembly tool (5).
3. Unscrew valve rod unit (2, 6, 7).
The packing (3) is also unscrewed
and removed.
4. Only as required:
Remove rod seal (10). Do not damage
the housing in the process.
8
B_04798
SW14
1
2
Two gold contact sleeves either
remain in the handle (1) or are
seated on the two gold pins (2).
Do not lose!
9
B_04799
3
Torx® 20
5
4
SW5
1. Loosen the oval head screw (3).
2. Pull the air valve (4) out o the drilled hole. Do not turn!
Do not damage the cylindrical surfaces. Ideally press
on the tappet from behind using a transversely held
screwdriver, for example.
3. Only as required:
Press out seal (5) using a handle seal assembly tool
(Order No. 2342334, not included in scope of delivery)
