OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717

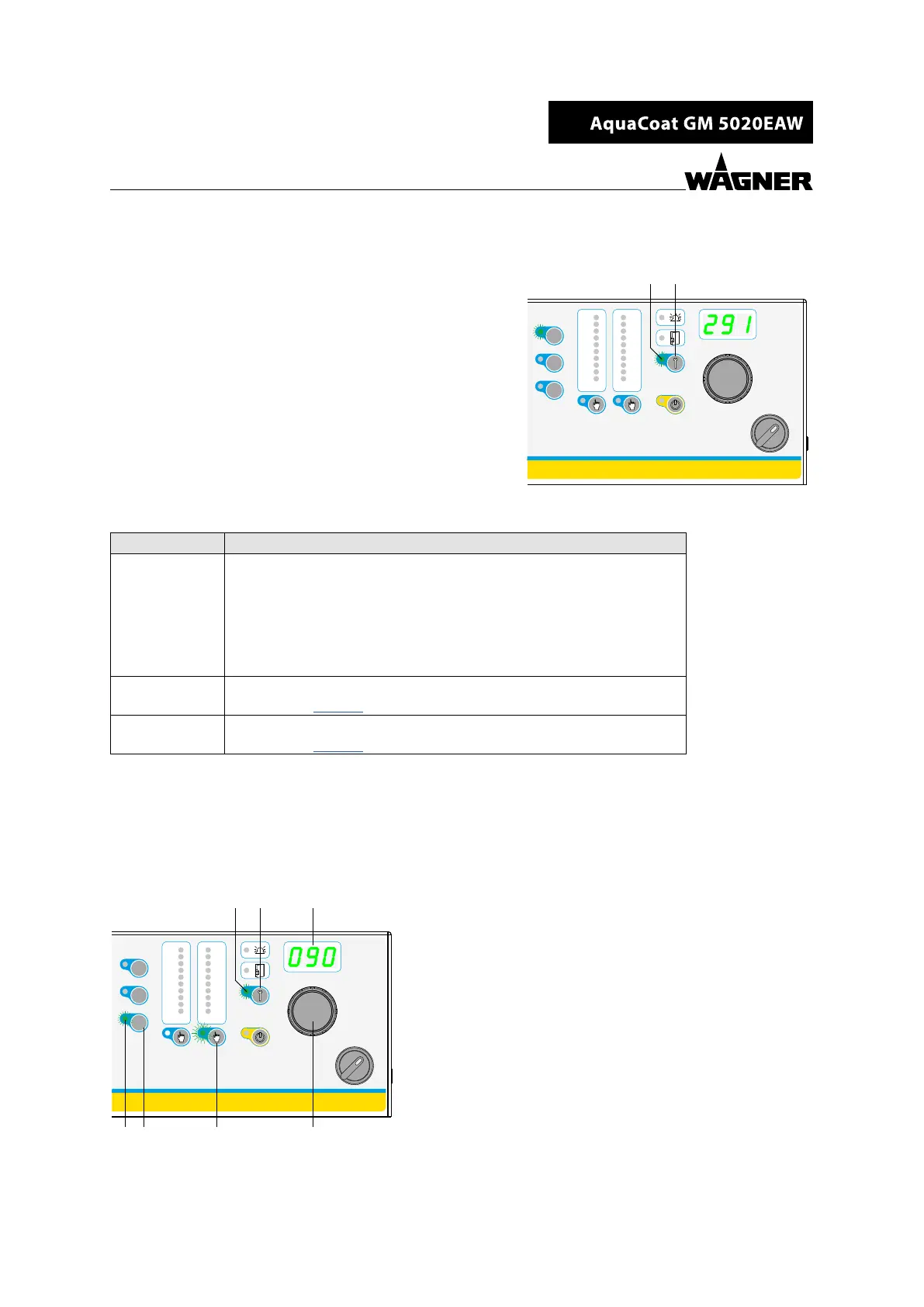

7.4.13 OPERATING HOURS COUNTER/SERVICE DISPLAY
Two hour counters are integrated into the control unit.
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
POWER
0 1
POWER
B_03382
2526
– The absolute counter measures the ongoing hours of
operation of the spray gun.
– The maintenance intervals for the spray gun can be
determined and monitored with the maintenance hours
counter.
Push button "Service"
Press the "Service" button (25) to go from the standby
position of the control unit to the service menu display.
Structure of the service menu (LED display 26 illuminates):
Push button Description of display
R1 Display of the spray gun's absolute accrued operating hours.
Display format:
Counter reading < 999 hours: 001 = 1 hour; 291 = 291 hours.
Counter reading > 1000 hours: 1.23 = 1230 h; 45.2 = 45200 h
Maximum display value = 99.9 = 99900 h
Flashing lines are then displayed.
R2
Display of temporary maintenance counter and resetting this counter
(see Chapter 7.4.13.1).
R3
Set maintenance interval in hours, activate or lock this function
(see Chapter 7.4.13.1).
7.4.13.1 MAINTENANCE DISPLAY SETUP
When the device is rst used, the function for the service interval is deactivated. This function
can be activated with the "R3" push button (19). The maintenance interval limit can be set
within a range of 0 to 999 hours.
Setting and saving the maintenance interval limit in hours
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
POWER
0 1
POWER
B_03383
272526
251920
Procedure
1. Press the "Service" button (25) to
access the service menu. LED (26)
lights up.
2. Actuate the push button R3 (19) for a
short time; the LED (20) display lights
up.
3. Use the dial (2) to set the maintenance
interval limit you want (e.g., 90 hours).
4. Check setting in the LED display (27).
5. The value is saved by pressing down
the "Spray current" push button (5)
until the LED display (27) starts to
ash.
