OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717

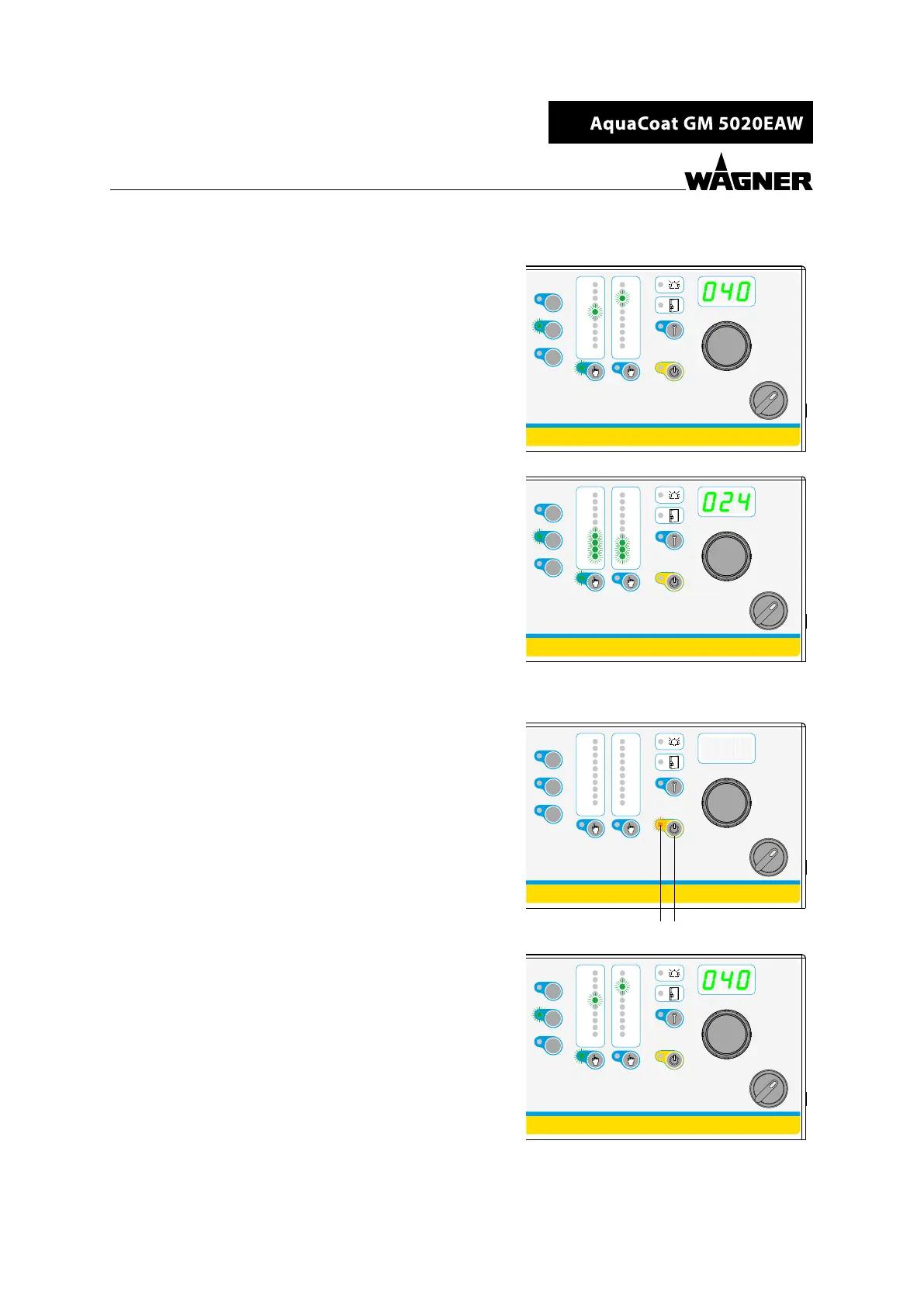

7.4.11 DISPLAY DURING SPRAYING MODE
Control unit in standby position
Ready to spray using R2 recipe (see gure).
The nominal value LEDs illuminate as dots and the high-voltage
value is digitally displayed in the LED display. If you press the
current limiter push button, the set nominal value for the
spray current limiter is digitally displayed in the LED display.
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
POWER
0 1
POWER
B_03379
Spray display
Spraying using recipe R2:
By actuating the trigger on the spray gun, high voltage is
produced. The LEDs light up in a bar display showing the
actual values. The current actual value of the activated push
button for the high voltage (kV) is digitally displayed on the
LED display. If the push button for the spray current limiter
is pressed, the relevant LED lights up and the corresponding
actual value in µA appears on the LED display.
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
POWER
0 1
POWER
B_03380
7.4.12 STANDBY MODE
If you want to spray without high voltage, select standby
mode. Briey press the "Standby" push button (3), LED (4) will
illuminate. All other LEDs are extinguished.
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
POWER
0 1
POWER
B_03381
34
Press push button (3) to return from this standby mode to the
previously saved standby mode (see gure).
Note:
This function can be activated and used from the gun.
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
POWER
0 1
POWER
B_03379
