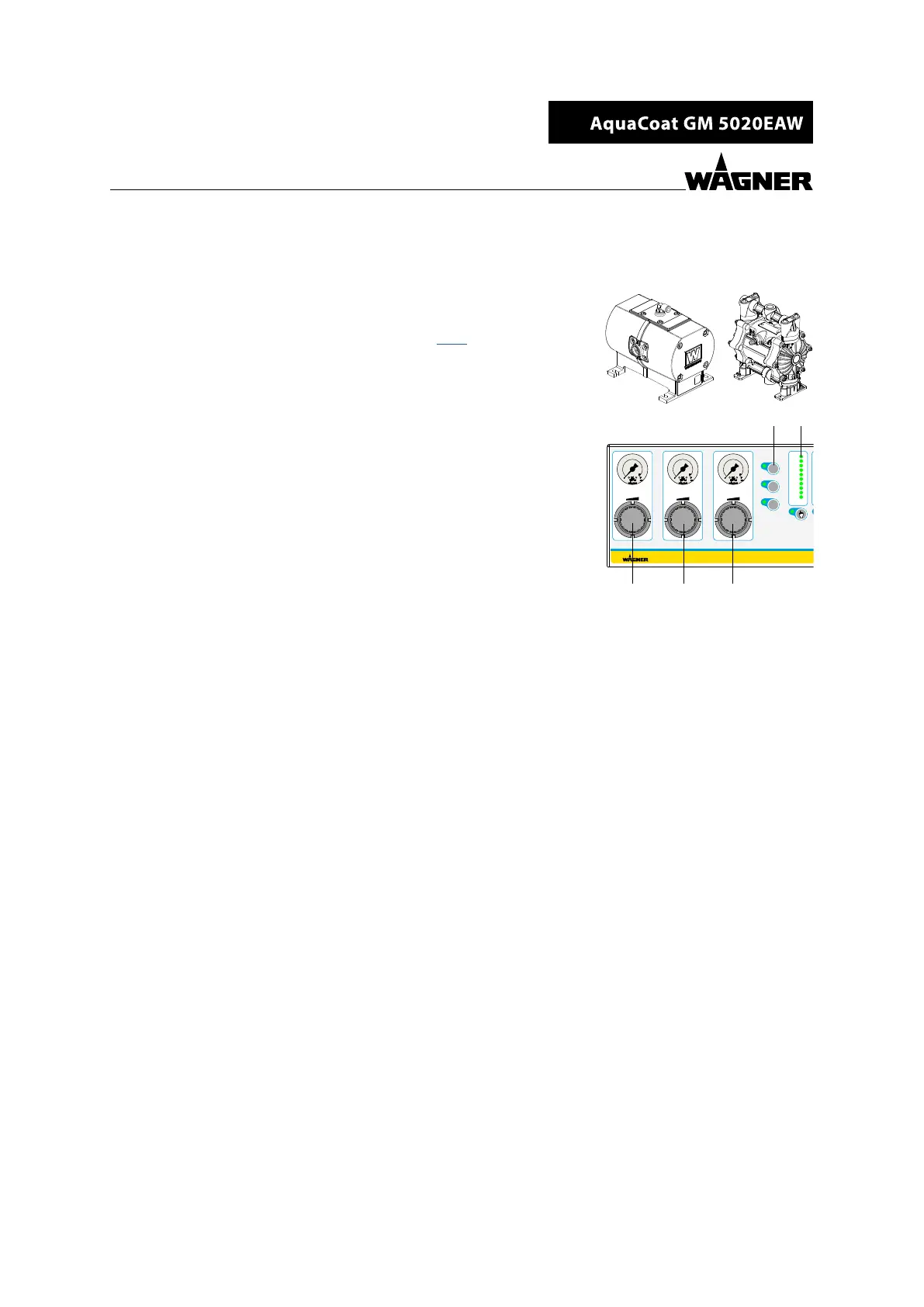

OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
5.6.2 PRODUCT PRESSURE GENERATOR
5.6.2.1 MAINTENANCE WORK ON THE PUMP
For preparation, commissioning and maintenance work at the pump,
proceed as follows:
B_04002
AquaCoat
100
80
60
40
20
µA
80
60
40
20
10
kV
R3
R2
R1
Zerstäuberluft
Atomizing air
Mat. Druckregler
Mat. pressure reg.
Pumpe
Pump
POWER
0 1
2115
22
1
10 911
3
B_03371
B_06420
1. Relieve system pressure according to Chapter 7.4.4.
2. Close spray guns.
3. Switch o control unit. (The pressure regulators continue to function.)
4. Open cabinet door (pull hard).
5. Work in accordance with pump's operating manual. While doing so:
– Only metal tanks may be used for product and ushing
agents. Ground the tank with the AquaCoat cabinet's potential
equalization.
– Regulate product pressure at the pump pressure regulator (9)
on the switched-o control unit and, if necessary, at the product
pressure regulator (10).
– Regulate atomizing air at the atomizing air regulator (11).
– Use the spray gun for product delivery valve.
– The return valve is the ball valve on the pump output and/or after
the product pressure regulator.
