20
OPERATING MANUAL
VERSION 02/2018 ORDER NUMBER DOC 2366717
5 DESCRIPTION

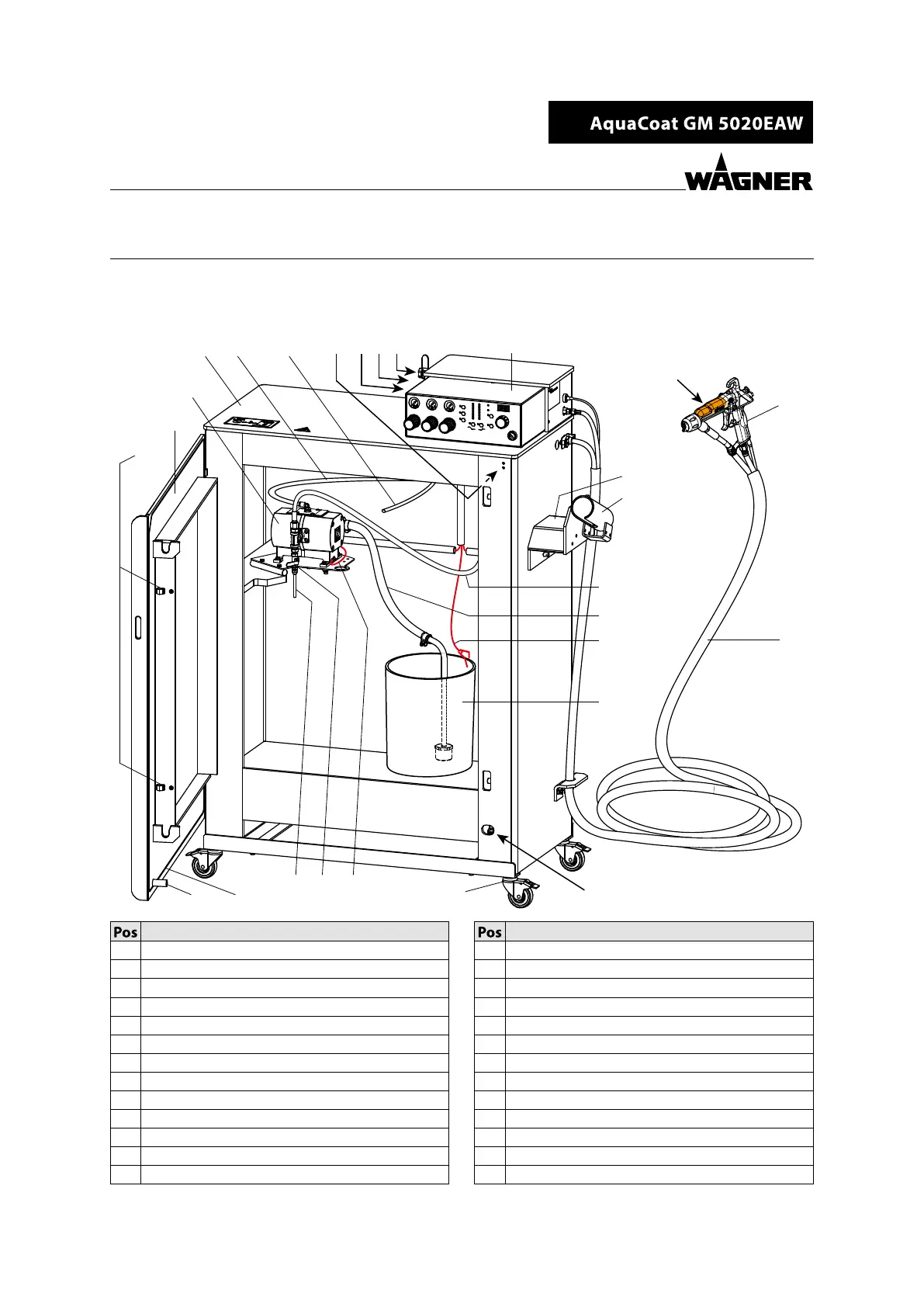

5.1 COMPONENTS
AquaCoat with TOPFINISH DD10 double diaphragm pump
B_06771
14
7
6
22
4
8
1
13
3
5
12
24
22
(20)
910
25
23
21
26
17
18
16
15
11
2
19
Designation
1 AquaCoat cabinet
2 Cabinet door
3 VM 5020W control unit
4 GM 5020EAW spray gun
5 EAW hose set
6 Product hose to spray gun
7 High-voltage generator (HV cascade)
8 Air inlet with ball valve
9 Inlet for mains cable
10 Grounding terminal (input: grounding cable)
11 Product pressure generator (pump)
12 Relief combination
13 Suction system
Designation
14 Metallic product tank
15 Grounding bolt on the cabinet door
16 Grounding band in the cabinet door
17 Electrical door switch
18 Pneumatic door switch
19 Door locking device engaging
20 Air hose, 8 mm (not used)
21 Air hose, 10 mm (product pressure generator)
22 Potential equalization lines, orange (4 pieces)
23 Underframe with rolls (special accessory)
24 Hose holder (special accessory)
25 Gun holder (special accessory)
26 Return line
